CALTO-60-S1 LED Wall Light

Efficacy

85-179 lm/W

CRI

80-90

IP66

Warranty

5 years

The Techlumen CALTO-60-S1 wall-mounted LED luminaires feature a slim profile and deliver powerful, reliable and low-maintenance lighting performance.

They are made of aluminium with electrostatic powder coating, available in any RAL colour.

With robust protection ratings of IP66 and IK09, a wide variety of optics and CCT options, they provide versatility for architectural and outdoor lighting applications.

The CALTO-60-S1 series achieves a lifetime of L70B10 > 100,000h and is backed by a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 750 - 2210 lm

Power 6 - 13W

Ambient Temperature -30°C to +50°C

Efficacy 85 - 179 lm/W

Power Factor 0.95

CRI 80-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK09

Body Aluminium

Finishing Any RAL

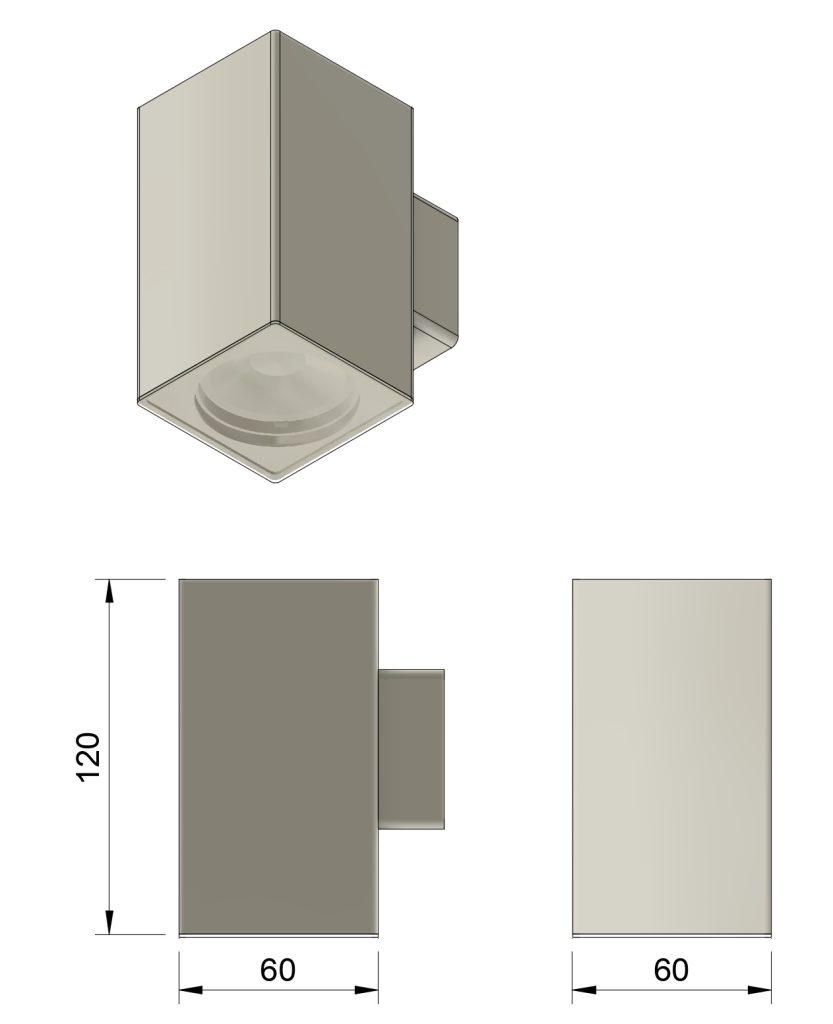

Dimensions 60mm X 60mm x 120mm

Weight 0.75 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2021+A11:2022 ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	CALTO-60-S1-827-6	2700K	80	951 lm	159 lm/W
6W	CALTO-60-S1-830-6	3000K	80	970 lm	162 lm/W
6W	CALTO-60-S1-835-6	3500K	80	975 lm	163 lm/W
6W	CALTO-60-S1-840-6	4000K	80	980 lm	163 lm/W
6W	CALTO-60-S1-850-6	5000K	80	960 lm	160 lm/W
6W	CALTO-60-S1-927-6	2700K	90	860 lm	143 lm/W
6W	CALTO-60-S1-930-6	3000K	90	875 lm	146 lm/W
6W	CALTO-60-S1-935-6	3500K	90	880 lm	147 lm/W
6W	CALTO-60-S1-940-6	4000K	90	890 lm	148 lm/W
6W	CALTO-60-S1-950-6	5000K	90	870 lm	145 lm/W
9W	CALTO-60-S1-827-9	2700K	80	1,560 lm	173 lm/W
9W	CALTO-60-S1-830-9	3000K	80	1,590 lm	177 lm/W
9W	CALTO-60-S1-835-9	3500K	80	1,600 lm	178 lm/W
9W	CALTO-60-S1-840-9	4000K	80	1,610 lm	179 lm/W
9W	CALTO-60-S1-850-9	5000K	80	1,580 lm	176 lm/W
9W	CALTO-60-S1-927-9	2700K	90	1,440 lm	160 lm/W
9W	CALTO-60-S1-930-9	3000K	90	1,470 lm	163 lm/W
9W	CALTO-60-S1-935-9	3500K	90	1,490 lm	166 lm/W
9W	CALTO-60-S1-940-9	4000K	90	1,510 lm	168 lm/W
9W	CALTO-60-S1-950-9	5000K	90	1,460 lm	162 lm/W
13W	CALTO-60-S1-827-13	2700K	80	2,145 lm	165 lm/W
13W	CALTO-60-S1-830-13	3000K	80	2,190 lm	168 lm/W
13W	CALTO-60-S1-835-13	3500K	80	2,200 lm	169 lm/W
13W	CALTO-60-S1-840-13	4000K	80	2,210 lm	170 lm/W
13W	CALTO-60-S1-850-13	5000K	80	2,170 lm	167 lm/W
13W	CALTO-60-S1-927-13	2700K	90	1,960 lm	151 lm/W
13W	CALTO-60-S1-930-13	3000K	90	2,000 lm	154 lm/W
13W	CALTO-60-S1-935-13	3500K	90	2,020 lm	155 lm/W
13W	CALTO-60-S1-940-13	4000K	90	2,040 lm	157 lm/W
13W	CALTO-60-S1-950-13	5000K	90	1,980 lm	152 lm/W
9W	CALTO-60-S1-e-927-9	2700K	90	750 lm	85 lm/W
9W	CALTO-60-S1-e-930-9	3000K	90	850 lm	97 lm/W
9W	CALTO-60-S1-e-940-9	4000K	90	900 lm	103 lm/W
12W	CALTO-60-S1-e-927-12	2700K	90	1,150 lm	96 lm/W
12W	CALTO-60-S1-e-930-12	3000K	90	1,180 lm	98 lm/W
12W	CALTO-60-S1-e-940-12	4000K	90	1,280 lm	107 lm/W
