GLIM-XT-R Recessed Linear LED

Efficacy

115-144 lm/W

CRI

IP66

Warranty

5 years

GLIM-R-XT linear wallwashers are ideal for architectural lighting.
They are IP66 rated and have excellent durability. They are made of anodised aluminum and are suitable for use in extreme adverse environments. Optionally the are painted in any RAL colour
They are lightweight with thin profile. They are produced in various versions of length and performance and have 5 versions of light beam, 11^o, 17^o, 22^o, wallwashing and ovale with low UGR<19.
GLIM-R-XT LED fixtures have a factory warranty of 5 years.

Luminaire Brochure

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 540 - 10868 lm

Power 8 - 84W

Ambient Temperature -30°C to +50°C

Efficacy 115 - 144 lm/W

Power Factor 0.95

CRI 92

CCT 3000K-4000K

IP Rating IP66

IK Rating IK09

Body Aluminium

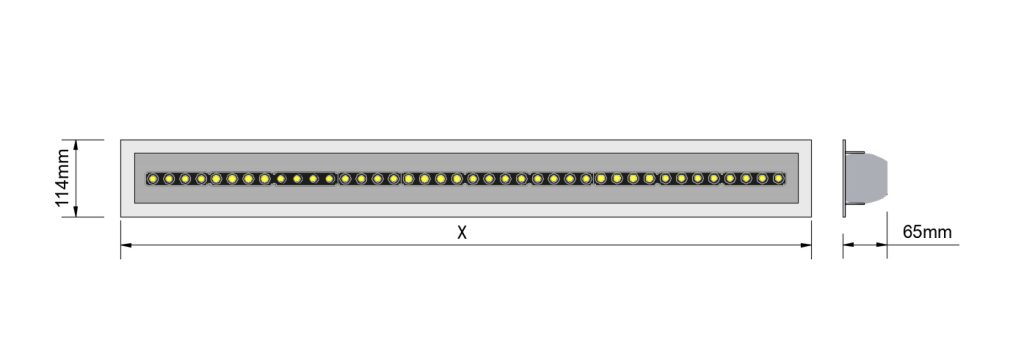

Dimensions 114mm x 65mm x (300 - 1000)mm

Weight 0.6 - 1.9 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2008 +A11:2009 ROHS EN 60598-1 EN 60598-2 EN 50581 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
204W	GLIM-XT-R-20-930-4	3000K	92	540 lm	135 lm/W
204W	GLIM-XT-R-20-940-4	4000K	92	576 lm	144 lm/W
209W	GLIM-XT-R-20-930-9	3000K	92	1,019 lm	115 lm/W
209W	GLIM-XT-R-20-940-9	4000K	92	1,087 lm	121 lm/W
308W	GLIM-XT-R-30-930-8	3000K	92	1,080 lm	135 lm/W
308W	GLIM-XT-R-30-940-8	4000K	92	1,152 lm	144 lm/W
3017W	GLIM-XT-R-30-930-17	3000K	92	2,038 lm	115 lm/W
3017W	GLIM-XT-R-30-940-17	4000K	92	2,174 lm	121 lm/W
4013W	GLIM-XT-R-40-930-13	3000K	92	1,620 lm	135 lm/W
4013W	GLIM-XT-R-40-940-13	4000K	92	1,728 lm	144 lm/W
4025W	GLIM-XT-R-40-930-25	3000K	92	3,057 lm	115 lm/W
4025W	GLIM-XT-R-40-940-25	4000K	92	3,260 lm	121 lm/W
5017W	GLIM-XT-R-50-930-17	3000K	92	2,160 lm	135 lm/W
5017W	GLIM-XT-R-50-940-17	4000K	92	2,303 lm	144 lm/W
5034W	GLIM-XT-R-50-930-34	3000K	92	4,075 lm	115 lm/W
5034W	GLIM-XT-R-50-940-34	4000K	92	4,347 lm	121 lm/W
6021W	GLIM-XT-R-60-930-21	3000K	92	2,700 lm	135 lm/W
6021W	GLIM-XT-R-60-940-21	4000K	92	2,880 lm	144 lm/W
6042W	GLIM-XT-R-60-930-42	3000K	92	5,094 lm	115 lm/W
6042W	GLIM-XT-R-60-940-42	4000K	92	5,434 lm	121 lm/W
7025W	GLIM-XT-R-70-930-25	3000K	92	3,240 lm	135 lm/W
7025W	GLIM-XT-R-70-940-25	4000K	92	3,456 lm	144 lm/W
7050W	GLIM-XT-R-70-930-50	3000K	92	6,113 lm	115 lm/W
7050W	GLIM-XT-R-70-940-50	4000K	92	6,521 lm	121 lm/W
8029W	GLIM-XT-R-80-930-29	3000K	92	3,780 lm	135 lm/W
8029W	GLIM-XT-R-80-940-29	4000K	92	4,032 lm	144 lm/W
8059W	GLIM-XT-R-80-930-59	3000K	92	7,132 lm	115 lm/W
8059W	GLIM-XT-R-80-940-59	4000K	92	7,608 lm	121 lm/W
9034W	GLIM-XT-R-90-930-34	3000K	92	4,320 lm	135 lm/W
9034W	GLIM-XT-R-90-940-34	4000K	92	4,608 lm	144 lm/W
9067W	GLIM-XT-R-90-930-67	3000K	92	8,151 lm	115 lm/W
9067W	GLIM-XT-R-90-940-67	4000K	92	8,694 lm	121 lm/W
10038W	GLIM-XT-R-100-930-38	3000K	92	4,860 lm	135 lm/W
10038W	GLIM-XT-R-100-940-38	4000K	92	5,184 lm	144 lm/W
10076W	GLIM-XT-R-100-930-76	3000K	92	9,170 lm	115 lm/W
10076W	GLIM-XT-R-100-940-76	4000K	92	9,781 lm	121 lm/W
