Garden lighting

CIVITA pole top LED fixture

Efficacy
120-204 lm/W
CRI
70-90
IP
IP66
Warranty
5 years

Urban LED luminaires Techlumen CIVITA deliver outstanding performance with low power consumption.

They are lightweight, made of aluminum, and painted with electrostatic paint in any RAL color.

CIVITA are produced in versions of 12W to 56W, with a maximum light output of 9096lm and efficacy of 204 lm/W.

They are IP66 and IK09 rated.

✉️ Request Quote Download PDF
📐
Calculate Required Luminaires
Via Techlumen Lux Calculator
 📄
Luminaire Brochure
Detailed specifications
 🔧
Installation Manual
Mounting and wiring instructions
 📊
Photometric Files
LDT / IES for lighting design

Technical Specifications

Luminous Flux 2028 - 9096 lm
Power 12 - 56W
Efficacy 120 - 204 lm/W
CRI 70-90
CCT 2700K-5000K
IP Rating IP66
IK Rating IK06
Dimensions Φ340mm X 664mm
Weight 5 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power Code CCT CRI Lumen Efficacy
12W CIVITA-P-827-12 2700K 80 2,028 lm 169 lm/W
12W CIVITA-P-730-12 3000K 70 2,328 lm 194 lm/W
12W CIVITA-P-830-12 3000K 80 2,100 lm 175 lm/W
12W CIVITA-P-740-12 4000K 70 2,448 lm 204 lm/W
12W CIVITA-P-840-12 4000K 80 2,208 lm 184 lm/W
12W CIVITA-P-750-12 5000K 70 2,448 lm 204 lm/W
12W CIVITA-P-850-12 5000K 80 2,225 lm 185 lm/W
12W CIVITA-P-950-12 5000K 90 2,030 lm 169 lm/W
20W CIVITA-P-827-20 2700K 80 3,084 lm 154 lm/W
20W CIVITA-P-730-20 3000K 70 3,528 lm 176 lm/W
20W CIVITA-P-830-20 3000K 80 3,180 lm 159 lm/W
20W CIVITA-P-740-20 4000K 70 3,708 lm 185 lm/W
20W CIVITA-P-840-20 4000K 80 3,348 lm 167 lm/W
20W CIVITA-P-750-20 5000K 70 3,708 lm 185 lm/W
20W CIVITA-P-850-20 5000K 80 3,348 lm 167 lm/W
20W CIVITA-P-950-20 5000K 90 2,856 lm 143 lm/W
26W CIVITA-P-827-26 2700K 80 3,816 lm 147 lm/W
26W CIVITA-P-730-26 3000K 70 4,356 lm 168 lm/W
26W CIVITA-P-830-26 3000K 80 3,924 lm 151 lm/W
26W CIVITA-P-740-26 4000K 70 4,596 lm 177 lm/W
26W CIVITA-P-840-26 4000K 80 4,140 lm 159 lm/W
26W CIVITA-P-750-26 5000K 70 4,596 lm 177 lm/W
26W CIVITA-P-850-26 5000K 80 4,140 lm 159 lm/W
26W CIVITA-P-950-26 5000K 90 3,540 lm 136 lm/W
32W CIVITA-P-827-32 2700K 80 4,524 lm 141 lm/W
32W CIVITA-P-730-32 3000K 70 5,172 lm 162 lm/W
32W CIVITA-P-830-32 3000K 80 4,656 lm 146 lm/W
32W CIVITA-P-740-32 4000K 70 5,448 lm 170 lm/W
32W CIVITA-P-840-32 4000K 80 4,908 lm 153 lm/W
32W CIVITA-P-750-32 5000K 70 5,448 lm 170 lm/W
32W CIVITA-P-850-32 5000K 80 4,908 lm 153 lm/W
32W CIVITA-P-950-32 5000K 90 4,200 lm 131 lm/W
38W CIVITA-P-827-38 2700K 80 5,208 lm 137 lm/W
38W CIVITA-P-730-38 3000K 70 5,964 lm 157 lm/W
38W CIVITA-P-830-38 3000K 80 5,376 lm 141 lm/W
38W CIVITA-P-740-38 4000K 70 6,276 lm 165 lm/W
38W CIVITA-P-840-38 4000K 80 5,652 lm 149 lm/W
38W CIVITA-P-750-38 5000K 70 6,276 lm 165 lm/W
38W CIVITA-P-850-38 5000K 80 5,652 lm 149 lm/W
38W CIVITA-P-950-38 5000K 90 4,824 lm 127 lm/W
44W CIVITA-P-827-44 2700K 80 5,892 lm 134 lm/W
44W CIVITA-P-730-44 3000K 70 6,732 lm 153 lm/W
44W CIVITA-P-830-44 3000K 80 6,072 lm 138 lm/W
44W CIVITA-P-740-44 4000K 70 7,092 lm 161 lm/W
44W CIVITA-P-840-44 4000K 80 6,384 lm 145 lm/W
44W CIVITA-P-750-44 5000K 70 7,092 lm 161 lm/W
44W CIVITA-P-850-44 5000K 80 6,384 lm 145 lm/W
44W CIVITA-P-950-44 5000K 90 5,460 lm 124 lm/W
49W CIVITA-P-827-49 2700K 80 6,480 lm 132 lm/W
49W CIVITA-P-730-49 3000K 70 7,404 lm 151 lm/W

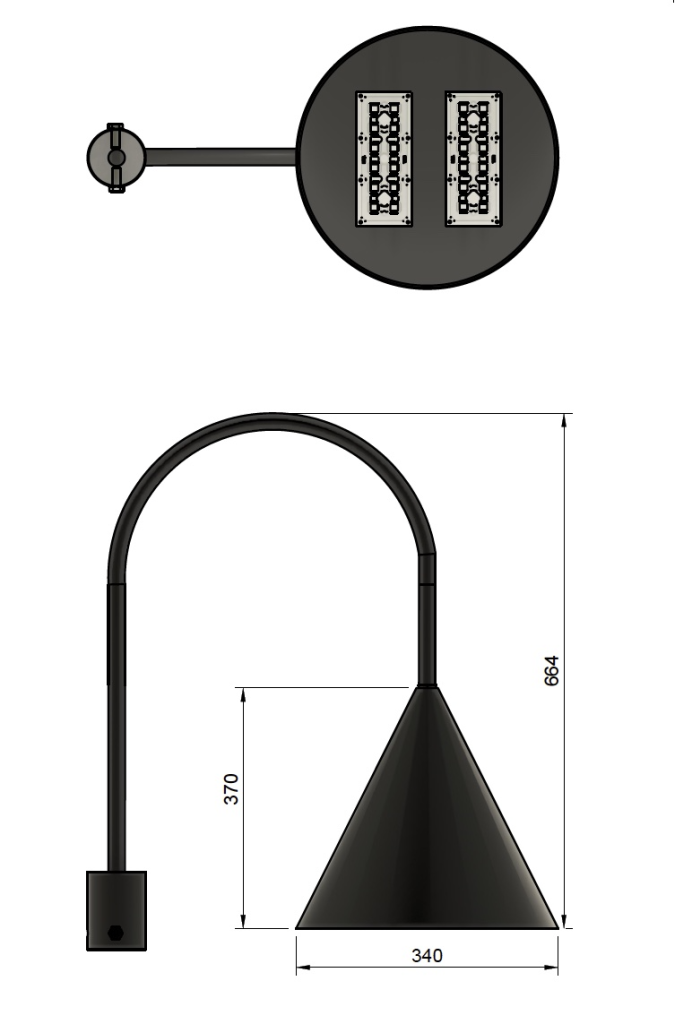

Technical Drawing

Technical Drawing
Download DWG / PDF

Polar Intensity Diagrams

Polar intensity diagrams

V

T2

T3

T4

ME

DW

WW

W

O
