OPUS-2-C Cement LED

Efficacy

130-175 lm/W

CRI

70-80

IP66

Warranty

5 years

The OPUS-2-C is a robust and efficient pathway lighting solution, inspired by the original OPUS-2 design but crafted from durable cement.

This innovative adaptation ensures both aesthetic appeal and structural integrity, making it an ideal choice for demanding outdoor environments.

It is produced in multiple power versions with luminous flux up to 2450 lm and offers a wide range of optics for diverse lighting scenarios.

OPUS-2-C combines the reliability and efficiency of modern LED technology with the timeless character of cement, providing an elegant and durable solution for pathway, park and public-space lighting.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 780 - 2450 lm

Power 6 - 14W

Ambient Temperature -30°C to +50°C

Efficacy 130 - 175 lm/W

Power Factor 0.95

CRI 70-80

CCT 2700K-5000K

IP Rating IP66

Body Cement - Aluminium

Finishing Powder Coating - RAL selection

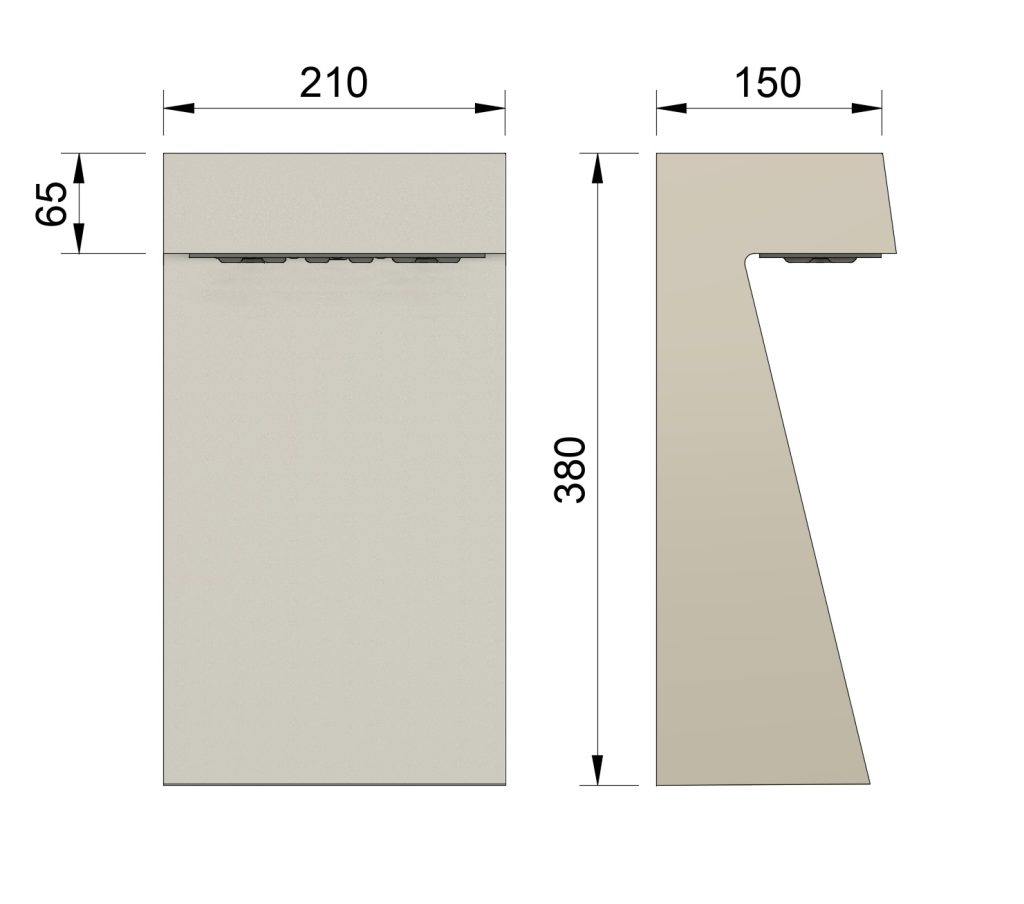

Dimensions 380 x 210 x 150 mm

Weight 4.4 kg

Warranty 5 years

Certifications & Compliance

CE EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	OPUS-2-C-827-6	2700K	80	780 lm	130 lm/W
6W	OPUS-2-C-730-6	3000K	70	900 lm	150 lm/W
6W	OPUS-2-C-830-6	3000K	80	800 lm	133 lm/W
6W	OPUS-2-C-740-6	4000K	70	950 lm	158 lm/W
6W	OPUS-2-C-840-6	4000K	80	850 lm	142 lm/W
6W	OPUS-2-C-750-6	5000K	70	950 lm	158 lm/W
9W	OPUS-2-C-827-9	2700K	80	1,200 lm	133 lm/W
9W	OPUS-2-C-730-9	3000K	70	1,370 lm	152 lm/W
9W	OPUS-2-C-830-9	3000K	80	1,250 lm	139 lm/W
9W	OPUS-2-C-740-9	4000K	70	1,450 lm	161 lm/W
9W	OPUS-2-C-840-9	4000K	80	1,310 lm	146 lm/W
9W	OPUS-2-C-750-9	5000K	70	1,450 lm	161 lm/W
14W	OPUS-2-C-827-14	2700K	80	2,020 lm	144 lm/W
14W	OPUS-2-C-730-14	3000K	70	2,330 lm	166 lm/W
14W	OPUS-2-C-830-14	3000K	80	2,100 lm	150 lm/W
14W	OPUS-2-C-740-14	4000K	70	2,450 lm	175 lm/W
14W	OPUS-2-C-840-14	4000K	80	2,200 lm	157 lm/W
14W	OPUS-2-C-750-14	5000K	70	2,450 lm	175 lm/W
