ARES-55 wall mounted LED lantern

Efficacy

151-160 lm/W

CRI

IP65

Warranty

5 years

The Techlumen© ARES-55 LED lantern features a slim profile and a modern design, offering stylish and efficient illumination for outdoor and urban spaces.

Produced in two power versions, ARES-55 luminaires combine elegance with durability, featuring IP66 ingress protection and IK09 impact resistance.

They are ideal for parks, pedestrian zones, squares and architectural environments, and come with a 5-year factory warranty.

Applications:
Parks · Squares · Pedestrian areas · Architectural exteriors · Hotels and resorts

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

Technical Specifications

Luminous Flux 1690 - 2530 lm

Power 11 - 16W

Ambient Temperature -30°C to +50°C

Efficacy 151 - 160 lm/W

Power Factor 0.95

CRI 80

CCT 3000K-5000K

IP Rating IP65

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

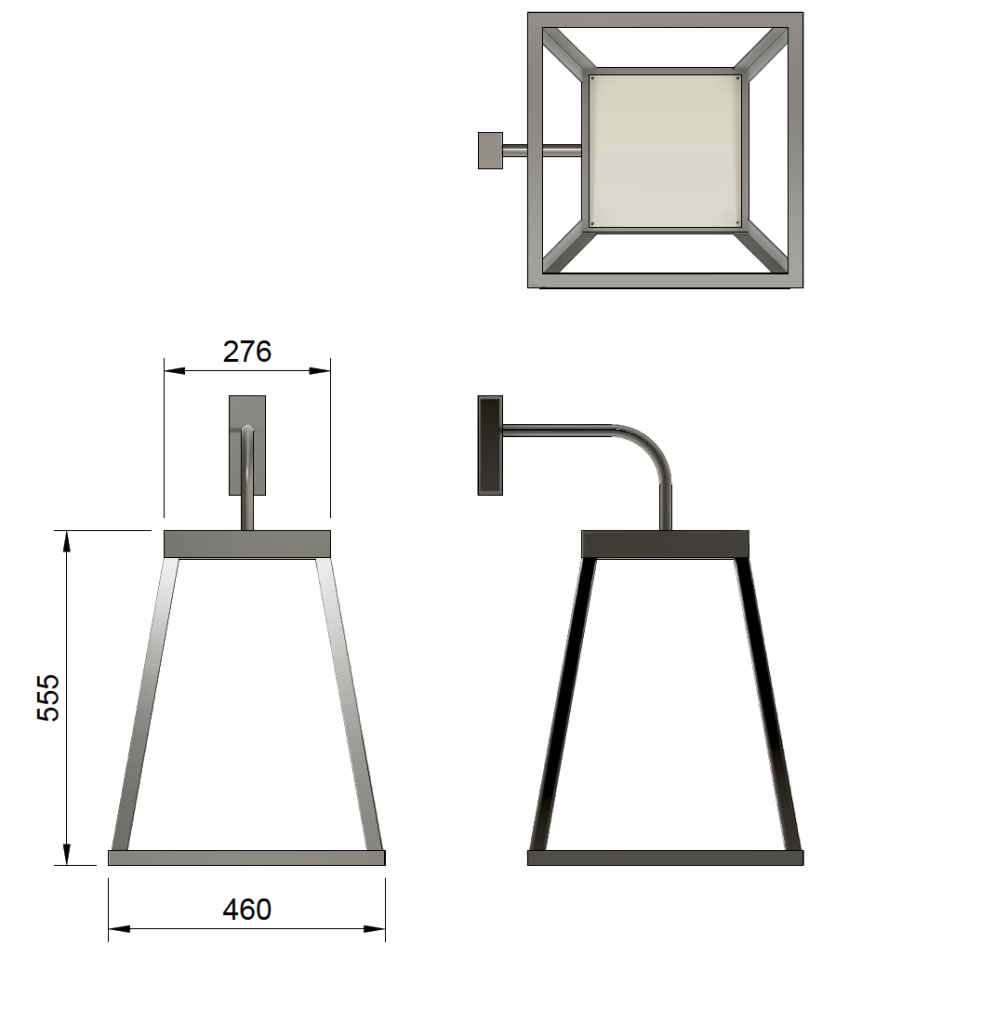

Dimensions 460 x 460 x 555 mm

Weight 3.5 - 4.5 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2015 +A1:2018 ROHS EN 60598-1 EN 60598-2 EN 55015 EN 61547 EN 61000-3

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
11W	ARES-55-830-12	3000KK	80	1,690 lm	153 lm/W
11W	ARES-55-840-12	4000KK	80	1,755 lm	159 lm/W
11W	ARES-55-850-12	5000KK	80	1,765 lm	160 lm/W
16W	ARES-55-830-17	3000KK	80	2,415 lm	151 lm/W
16W	ARES-55-840-17	4000KK	80	2,510 lm	156 lm/W
16W	ARES-55-850-17	5000KK	80	2,530 lm	158 lm/W
