VISION – low UGR LED panel

Efficacy

173-185 lm/W

CRI

80-90

IP40

Warranty

5 years

Techlumen VISION series LED panels of-fer high quality lighting.

VISION’s optics provide discreet lighting, it is hard to notice where the light comes from.

An excellent lighting solution for glare-free work en-viroments.

They are produced in various power versions, with a luminous flux up to 8270lm.

Upon selection, they can be ceiling mounted by adding a special frame, or suspended.

They have a 5 year warranty.

✉️ Request Quote Download PDF

📊

Luminous Flux 2311 - 7861 lm

Power 17 - 52W

Efficacy 173 - 185 lm/W

CRI 80-90

CCT 3000K-4000K

IP Rating IP40

IK Rating IK06

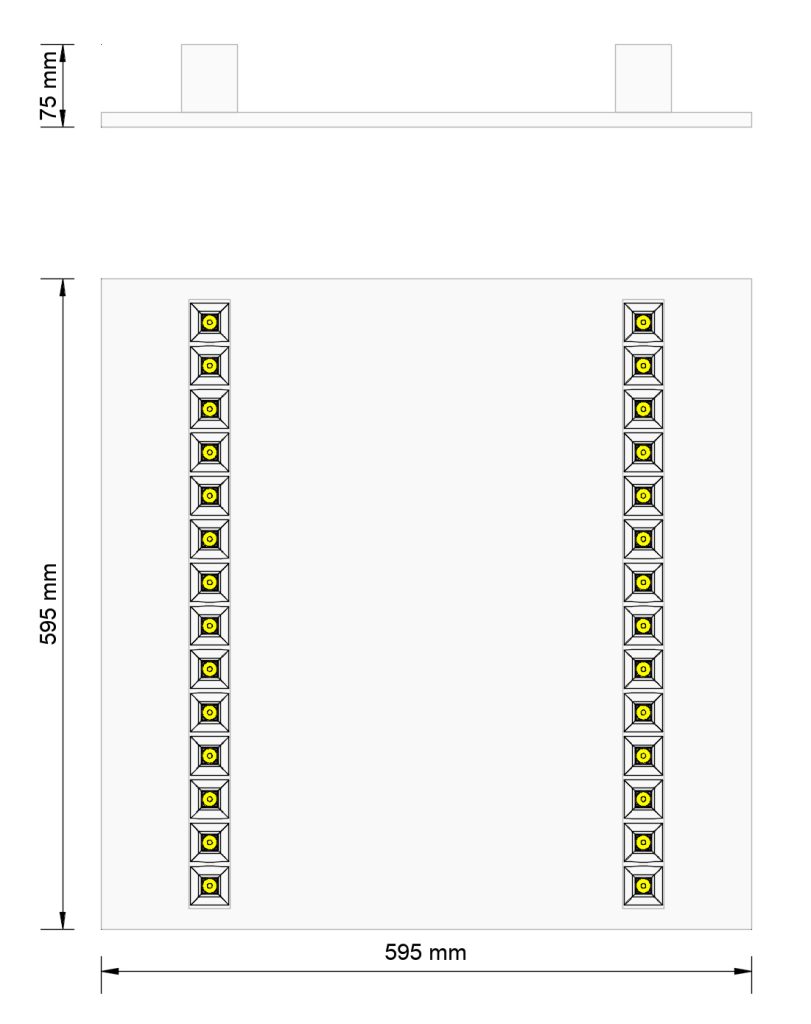

Dimensions 595mm X 595mm X 94.5mm /or custom

Weight 3.4 kg

Warranty 5 years

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

Power	Code	CCT	CRI	Lumen	Efficacy
17W	VISION-830-17	3000K	80	2,800 lm	165 lm/W
17W	VISION-840-17	4000K	80	2,970 lm	175 lm/W
17W	VISION-930-17	3000K	90	2,430 lm	143 lm/W
17W	VISION-940-17	4000K	90	2,540 lm	149 lm/W
21W	VISION-830-21	3000K	80	3,500 lm	167 lm/W
21W	VISION-840-21	4000K	80	3,660 lm	174 lm/W
21W	VISION-930-21	3000K	90	3,030 lm	144 lm/W
21W	VISION-940-21	4000K	90	3,160 lm	150 lm/W
25W	VISION-830-25	3000K	80	4,150 lm	166 lm/W
25W	VISION-840-25	4000K	80	4,340 lm	174 lm/W
25W	VISION-930-25	3000K	90	3,600 lm	144 lm/W
25W	VISION-940-25	4000K	90	3,750 lm	150 lm/W
30W	VISION-830-30	3000K	80	4,780 lm	159 lm/W
30W	VISION-840-30	4000K	80	5,000 lm	167 lm/W
30W	VISION-930-30	3000K	90	4,140 lm	138 lm/W
30W	VISION-940-30	4000K	90	4,320 lm	144 lm/W
34W	VISION-830-34	3000K	80	5,350 lm	157 lm/W
34W	VISION-840-34	4000K	80	5,590 lm	164 lm/W
34W	VISION-930-34	3000K	90	4,640 lm	136 lm/W
34W	VISION-940-34	4000K	90	4,840 lm	142 lm/W
38W	VISION-830-38	3000K	80	5,975 lm	157 lm/W
38W	VISION-840-38	4000K	80	6,250 lm	164 lm/W
38W	VISION-930-38	3000K	90	5,180 lm	136 lm/W
38W	VISION-940-38	4000K	90	5,410 lm	142 lm/W
43W	VISION-830-43	3000K	80	6,620 lm	154 lm/W
43W	VISION-840-43	4000K	80	6,930 lm	161 lm/W
43W	VISION-930-43	3000K	90	5,750 lm	134 lm/W
43W	VISION-940-43	4000K	90	6,000 lm	140 lm/W
52W	VISION-830-52	3000K	80	7,900 lm	152 lm/W
52W	VISION-840-52	4000K	80	8,270 lm	159 lm/W
52W	VISION-930-52	3000K	90	6,860 lm	132 lm/W
52W	VISION-940-52	4000K	90	7,160 lm	138 lm/W
