DUPLO-X Task & Workbench Light

Efficacy

143-178 lm/W

CRI

80-90

IP43

Warranty

5 years

DUPLO-X is an LED luminaire engineered to provide uniform illumination and visual comfort in workspaces.

It delivers powerful light over large areas even at low mounting heights, while effectively minimising shadows.

On-body pushbutton control allows quick adjustment of light levels from 200 lx up to 12 000 lx (task-dependent).

The fixture is constructed from aluminium and can be powder-coated in any RAL colour. Bracket versions with 3-joint or 5-joint arms provide easy aim-and-lock positioning.

Available CCTs: 3000 K / 4000 K / 5000 K, with efficacy up to 178 lm/W. Supplied with a 5-year warranty.

Applications:
Workbenches · Inspection stations · Laboratories · Industrial assembly · Makerspaces · Print shops

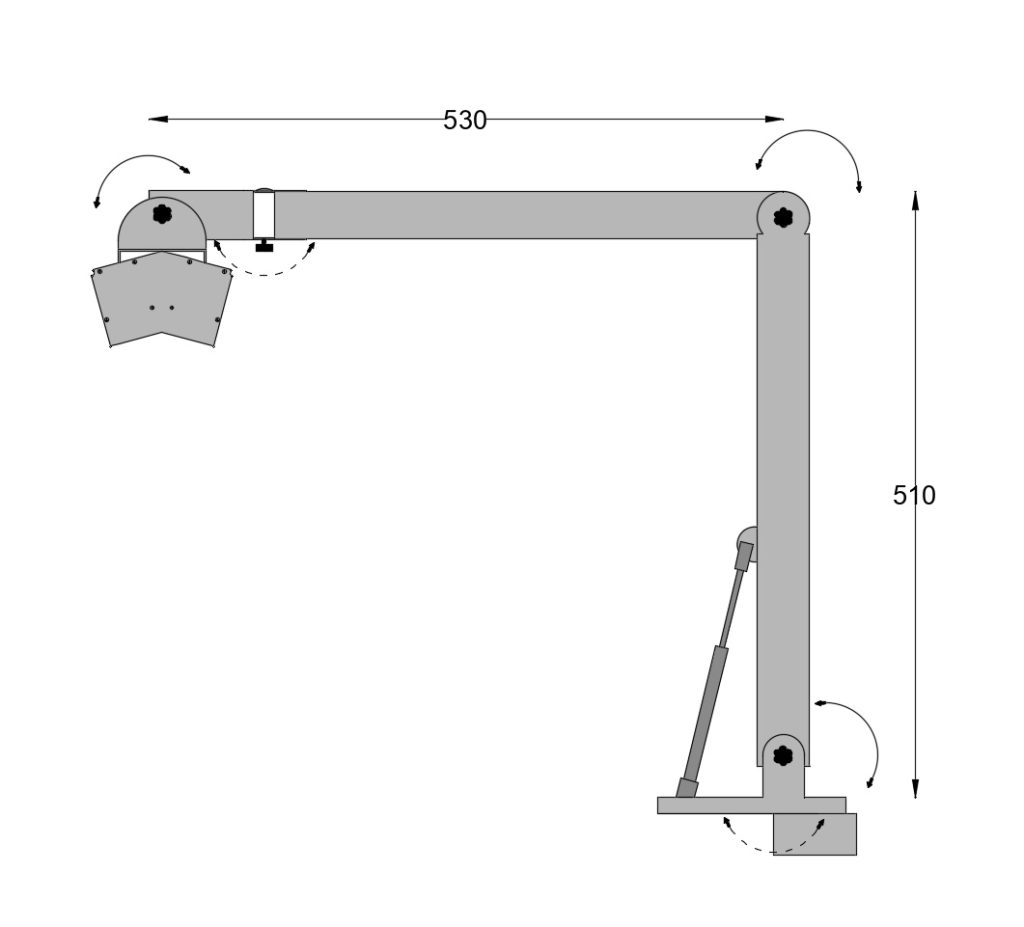

3-joint bracket

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 3280 - 12064 lm

Power 20 - 74W

Efficacy 143 - 178 lm/W

CRI 80-90

CCT 3000K-5000K

IP Rating IP43

Dimensions 2.9 - 4.5 Kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
203080W	DUPLO-30-X-840-20	4000K	80	3,280 lm	164 lm/W
203080W	DUPLO-30-X-850-20	5000K	80	3,312 lm	166 lm/W
243080W	DUPLO-30-X-840-24	4000K	80	4,260 lm	176 lm/W
243080W	DUPLO-30-X-850-24	5000K	80	4,276 lm	178 lm/W
383080W	DUPLO-30-X-840-38	4000K	80	5,974 lm	157 lm/W
383080W	DUPLO-30-X-850-38	5000K	80	6,032 lm	159 lm/W
284580W	DUPLO-45-X-840-28	4000K	80	4,920 lm	164 lm/W
284580W	DUPLO-45-X-850-28	5000K	80	4,970 lm	166 lm/W
486080W	DUPLO-60-X-840-48	4000K	80	8,420 lm	176 lm/W
486080W	DUPLO-60-X-850-48	5000K	80	8,520 lm	178 lm/W
746080W	DUPLO-60-X-840-74	4000K	80	11,948 lm	161 lm/W
746080W	DUPLO-60-X-850-74	5000K	80	12,064 lm	163 lm/W
243090W	DUPLO-30-XTE-930-24	3000K	90	3,440 lm	143 lm/W
243090W	DUPLO-30-XTE-940-24	4000K	90	3,594 lm	150 lm/W
486090W	DUPLO-60-XTE-930-48	3000K	90	6,880 lm	143 lm/W
486090W	DUPLO-60-XTE-940-48	4000K	90	7,188 lm	150 lm/W
