STRASS Floor standing fixture

Efficacy

107-163 lm/W

CRI

80-90

IP20

Warranty

5 years

STRASS LED fixtures have slim shape, with diameter of only 38mm.

They are produced with optics of 12^o to 55^o.

The light is adjustable.

It comes in versions of CCT from 2700K to 5000K and with CRI up to 97.

It is painted with electrostatic powder coating in any RAL color.

STRASS has LM80> 70000h index and 5 years warranty.

Under request it is produced with dimming via push-button.

✉️ Request Quote Download PDF

Luminous Flux 320 - 980 lm

Power 3 - 6W

Ambient Temperature -30°C to +50°C

Efficacy 107 - 163 lm/W

Power Factor 0.95

CRI 80-90

CCT 2700K-5000K

IP Rating IP20

IK Rating IK08

Body Aluminium

Finishing Any RAL

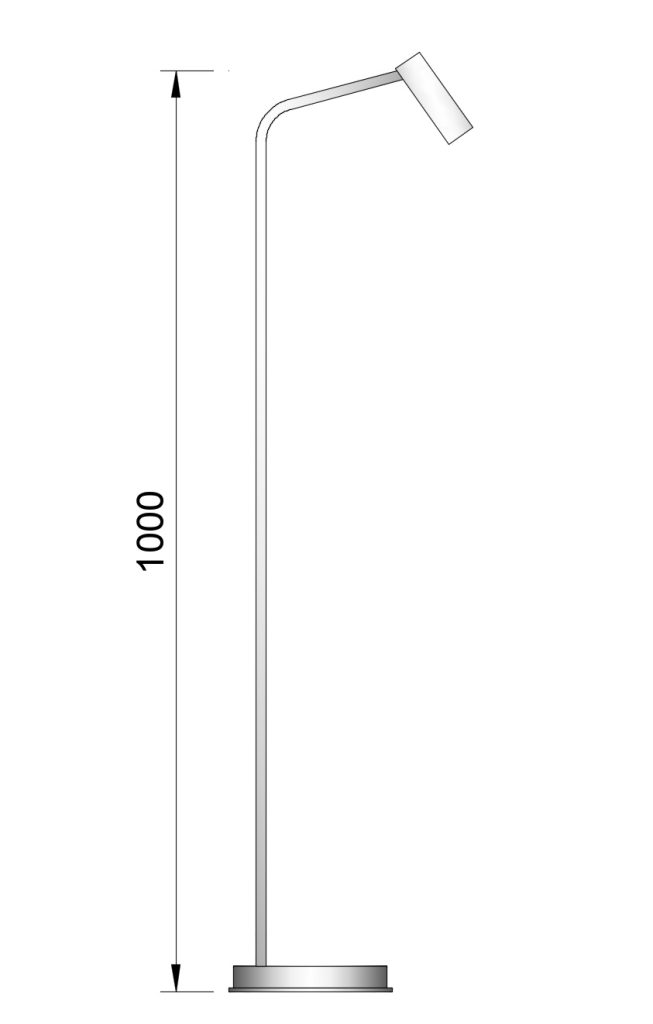

Dimensions Η=1000mm

Weight 1.8 kg

Warranty 5 years

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Power	Code	CCT	CRI	Lumen	Efficacy
3W	STRASS-827-3	2700K	80	455 lm	152 lm/W
3W	STRASS-830-3	3000K	80	465 lm	155 lm/W
3W	STRASS-835-3	3500K	80	470 lm	157 lm/W
3W	STRASS-840-3	4000K	80	475 lm	158 lm/W
3W	STRASS-850-3	5000K	80	460 lm	153 lm/W
3W	STRASS-927-3	2700K	90	320 lm	107 lm/W
3W	STRASS-930-3	3000K	90	335 lm	112 lm/W
3W	STRASS-935-3	3500K	90	350 lm	117 lm/W
3W	STRASS-940-3	4000K	90	360 lm	120 lm/W
3W	STRASS-950-3	5000K	90	375 lm	125 lm/W
6W	STRASS-827-6	2700K	80	951 lm	159 lm/W
6W	STRASS-830-6	3000K	80	970 lm	162 lm/W
6W	STRASS-835-6	3500K	80	975 lm	163 lm/W
6W	STRASS-840-6	4000K	80	980 lm	163 lm/W
6W	STRASS-850-6	5000K	80	960 lm	160 lm/W
6W	STRASS-927-6	2700K	90	860 lm	143 lm/W
6W	STRASS-930-6	3000K	90	875 lm	146 lm/W
6W	STRASS-935-6	3500K	90	880 lm	147 lm/W
6W	STRASS-940-6	4000K	90	890 lm	148 lm/W
6W	STRASS-950-6	5000K	90	870 lm	145 lm/W
