FAVO-2 Recessed LED fixture

Efficacy

121-182 lm/W

CRI

70-90

IP20

Warranty

5 years

FAVO-2 recessed LED fixture series have a wide range of lumen output, color temperature and color rendering index.

They are adjustable, offering flexibility.

By appropriate selection of optics they generates light beam from 11^o to 90^o. The FAVO-2 series uses Bridgelux Vero series LEDs.

The models in the series provide lighting with a range of color temperature of 2700K (warm) – 6500K (cold), and there is a choice color rendering index up to 90 CRI.

Luminaire Brochure

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 2222 - 8454 lm

Power 29 - 225W

Efficacy 121 - 182 lm/W

CRI 70-90

CCT 2700K-6500K

IP Rating IP20

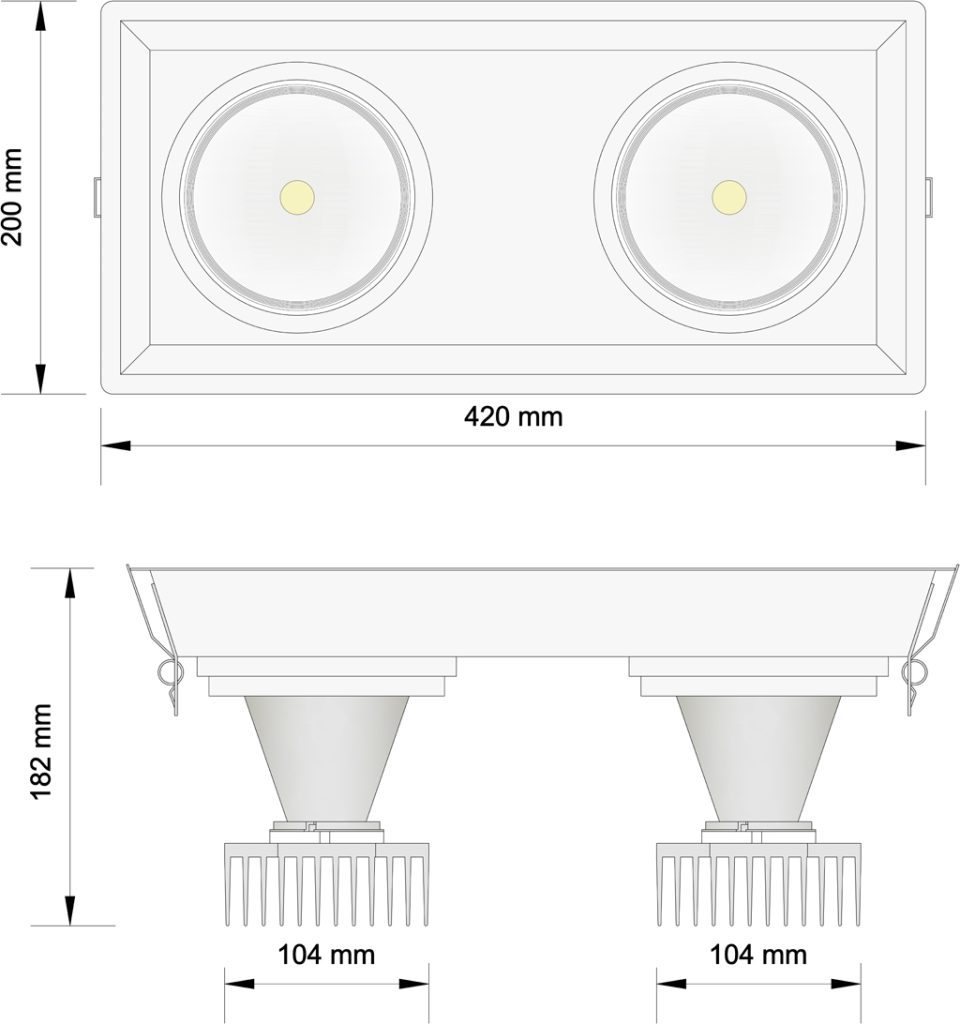

Dimensions 420mm X 200mm

Weight 1.9 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-2

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
29W	FAVO-2-827-9	2700K	80	2,664 lm	146 lm/W
29W	FAVO-2-927-9	2700K	90	2,222 lm	122 lm/W
29W	FAVO-2-830-9	3000K	80	2,776 lm	153 lm/W
29W	FAVO-2-930-9	3000K	90	2,304 lm	127 lm/W
29W	FAVO-2-835-9	3500K	80	2,860 lm	157 lm/W
29W	FAVO-2-935-9	3500K	90	2,388 lm	131 lm/W
29W	FAVO-2-840-9	4000K	80	2,888 lm	159 lm/W
29W	FAVO-2-940-9	4000K	90	2,472 lm	136 lm/W
29W	FAVO-2-750-9	5000K	70	3,160 lm	174 lm/W
29W	FAVO-2-850-9	5000K	80	2,972 lm	163 lm/W
29W	FAVO-2-950-9	5000K	90	2,528 lm	139 lm/W
29W	FAVO-2-757-9	5700K	70	3,050 lm	168 lm/W
29W	FAVO-2-857-9	5700K	80	3,022 lm	166 lm/W
29W	FAVO-2-765-9	6500K	70	3,106 lm	171 lm/W
29W	FAVO-2-865-9	6500K	80	3,076 lm	169 lm/W
212W	FAVO-2-827-12	2700K	80	3,536 lm	145 lm/W
212W	FAVO-2-927-12	2700K	90	2,946 lm	121 lm/W
212W	FAVO-2-830-12	3000K	80	3,682 lm	151 lm/W
212W	FAVO-2-930-12	3000K	90	3,058 lm	125 lm/W
212W	FAVO-2-835-12	3500K	80	3,792 lm	156 lm/W
212W	FAVO-2-935-12	3500K	90	3,168 lm	130 lm/W
212W	FAVO-2-840-12	4000K	80	3,830 lm	157 lm/W
212W	FAVO-2-940-12	4000K	90	3,278 lm	134 lm/W
212W	FAVO-2-750-12	5000K	70	4,192 lm	172 lm/W
212W	FAVO-2-850-12	5000K	80	3,940 lm	162 lm/W
212W	FAVO-2-950-12	5000K	90	3,352 lm	137 lm/W
212W	FAVO-2-757-12	5700K	70	4,044 lm	166 lm/W
212W	FAVO-2-857-12	5700K	80	4,006 lm	164 lm/W
212W	FAVO-2-765-12	6500K	70	4,118 lm	169 lm/W
212W	FAVO-2-865-12	6500K	80	4,082 lm	167 lm/W
217W	FAVO-2-827-17	2700K	80	5,240 lm	154 lm/W
217W	FAVO-2-927-17	2700K	90	4,366 lm	128 lm/W
217W	FAVO-2-830-17	3000K	80	5,458 lm	160 lm/W
217W	FAVO-2-930-17	3000K	90	4,530 lm	133 lm/W
217W	FAVO-2-835-17	3500K	80	5,622 lm	165 lm/W
217W	FAVO-2-935-17	3500K	90	4,694 lm	138 lm/W
217W	FAVO-2-840-17	4000K	80	5,676 lm	166 lm/W
217W	FAVO-2-940-17	4000K	90	4,858 lm	142 lm/W
217W	FAVO-2-750-17	5000K	70	6,212 lm	182 lm/W
217W	FAVO-2-850-17	5000K	80	5,840 lm	171 lm/W
217W	FAVO-2-950-17	5000K	90	4,970 lm	146 lm/W
217W	FAVO-2-757-17	5700K	70	5,994 lm	176 lm/W
217W	FAVO-2-857-17	5700K	80	5,816 lm	166 lm/W
217W	FAVO-2-765-17	6500K	70	5,978 lm	171 lm/W
217W	FAVO-2-865-17	6500K	80	5,624 lm	156 lm/W
225W	FAVO-2-827-25	2700K	80	7,130 lm	145 lm/W
225W	FAVO-2-927-25	2700K	90	5,942 lm	121 lm/W
225W	FAVO-2-830-25	3000K	80	7,428 lm	151 lm/W
225W	FAVO-2-930-25	3000K	90	6,166 lm	126 lm/W
225W	FAVO-2-835-25	3500K	80	7,650 lm	156 lm/W
225W	FAVO-2-935-25	3500K	90	6,388 lm	130 lm/W
225W	FAVO-2-840-25	4000K	80	7,724 lm	157 lm/W
225W	FAVO-2-940-25	4000K	90	6,610 lm	135 lm/W
225W	FAVO-2-750-25	5000K	70	8,454 lm	172 lm/W
225W	FAVO-2-850-25	5000K	80	7,946 lm	162 lm/W
225W	FAVO-2-950-25	5000K	90	6,764 lm	138 lm/W
225W	FAVO-2-757-25	5700K	70	8,156 lm	166 lm/W
225W	FAVO-2-857-25	5700K	80	8,084 lm	165 lm/W
225W	FAVO-2-765-25	6500K	70	8,306 lm	169 lm/W
225W	FAVO-2-865-25	6500K	80	8,232 lm	168 lm/W
