DUPLO-TX Pendant LED

Efficacy

148-161 lm/W

CRI

IP43

Warranty

5 years

The DUPLO-TX series LED luminaires are designed to provide uniform and consistent illumination across work surfaces, especially in environments where visual precision and comfort are paramount.

Engineered to cast powerful light over large areas even when mounted at low heights, the DUPLO-TX luminaires effectively minimise shadows and enhance visual clarity.

Constructed from durable aluminium and finished with electrostatic powder coating in any RAL colour, they seamlessly integrate into any architectural setting.

Available in 2700 K – 6500 K CCT options, with luminous flux up to 37 638 lm, the series combines performance, visual comfort, and aesthetic refinement. Each luminaire comes with a 5-year warranty, ensuring long-term reliability and efficiency.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 3854 - 37638 lm

Power 26 - 228W

Ambient Temperature -30°C to +50°C

Efficacy 148 - 161 lm/W

Power Factor 0.95

CRI 80

CCT 2700K-6500K

IP Rating IP43

IK Rating IK08

Finishing Powder coating - RAL color selection

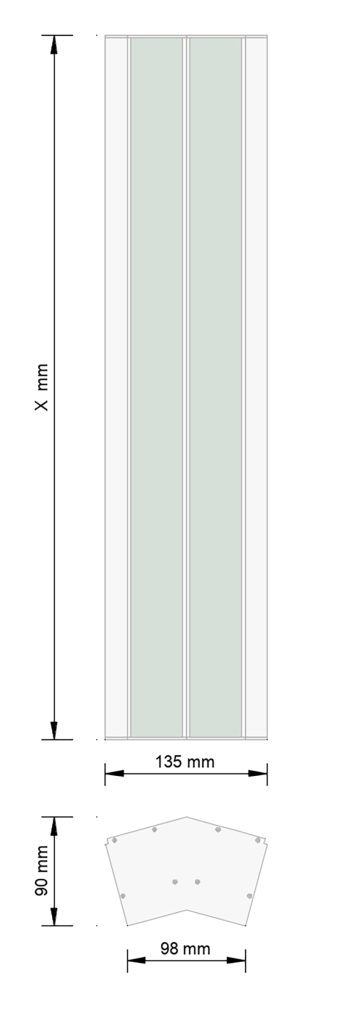

Dimensions 135mm x 90mm x (300 - 2550)mm

Weight 1.8 - 9.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
2630W	DUPLO-TX-30-827-26	2700K	80	3,854 lm	148 lm/W
2630W	DUPLO-TX-30-830-26	3000K	80	3,942 lm	152 lm/W
2630W	DUPLO-TX-30-835-26	3500K	80	4,078 lm	157 lm/W
2630W	DUPLO-TX-30-840-26	4000K	80	4,182 lm	161 lm/W
2630W	DUPLO-TX-30-850-26	5000K	80	4,156 lm	160 lm/W
2630W	DUPLO-TX-30-865-26	6500K	80	4,098 lm	158 lm/W
3845W	DUPLO-TX-45-827-38	2700K	80	5,780 lm	148 lm/W
3845W	DUPLO-TX-45-830-38	3000K	80	5,913 lm	152 lm/W
3845W	DUPLO-TX-45-835-38	3500K	80	6,117 lm	157 lm/W
3845W	DUPLO-TX-45-840-38	4000K	80	6,273 lm	161 lm/W
3845W	DUPLO-TX-45-850-38	5000K	80	6,234 lm	160 lm/W
3845W	DUPLO-TX-45-865-38	6500K	80	6,147 lm	158 lm/W
5060W	DUPLO-TX-60-827-50	2700K	80	7,708 lm	148 lm/W
5060W	DUPLO-TX-60-830-50	3000K	80	7,884 lm	152 lm/W
5060W	DUPLO-TX-60-835-50	3500K	80	8,156 lm	157 lm/W
5060W	DUPLO-TX-60-840-50	4000K	80	8,364 lm	161 lm/W
5060W	DUPLO-TX-60-850-50	5000K	80	8,312 lm	160 lm/W
5060W	DUPLO-TX-60-865-50	6500K	80	8,196 lm	158 lm/W
6272W	DUPLO-TX-72-827-62	2700K	80	9,635 lm	148 lm/W
6272W	DUPLO-TX-72-830-62	3000K	80	9,855 lm	152 lm/W
6272W	DUPLO-TX-72-835-62	3500K	80	10,195 lm	157 lm/W
6272W	DUPLO-TX-72-840-62	4000K	80	10,455 lm	161 lm/W
6272W	DUPLO-TX-72-850-62	5000K	80	10,390 lm	160 lm/W
6272W	DUPLO-TX-72-865-62	6500K	80	10,245 lm	158 lm/W
7485W	DUPLO-TX-85-827-74	2700K	80	11,562 lm	148 lm/W
7485W	DUPLO-TX-85-830-74	3000K	80	11,826 lm	152 lm/W
7485W	DUPLO-TX-85-835-74	3500K	80	12,234 lm	157 lm/W
7485W	DUPLO-TX-85-840-74	4000K	80	12,546 lm	161 lm/W
7485W	DUPLO-TX-85-850-74	5000K	80	12,468 lm	160 lm/W
7485W	DUPLO-TX-85-865-74	6500K	80	12,294 lm	158 lm/W
88100W	DUPLO-TX-100-827-88	2700K	80	13,489 lm	148 lm/W
88100W	DUPLO-TX-100-830-88	3000K	80	13,797 lm	152 lm/W
88100W	DUPLO-TX-100-835-88	3500K	80	14,273 lm	157 lm/W
88100W	DUPLO-TX-100-840-88	4000K	80	14,637 lm	161 lm/W
88100W	DUPLO-TX-100-850-88	5000K	80	14,546 lm	160 lm/W
88100W	DUPLO-TX-100-865-88	6500K	80	14,343 lm	158 lm/W
100115W	DUPLO-TX-115-827-100	2700K	80	15,416 lm	148 lm/W
100115W	DUPLO-TX-115-830-100	3000K	80	15,768 lm	152 lm/W
100115W	DUPLO-TX-115-835-100	3500K	80	16,312 lm	157 lm/W
100115W	DUPLO-TX-115-840-100	4000K	80	16,728 lm	161 lm/W
100115W	DUPLO-TX-115-850-100	5000K	80	16,624 lm	160 lm/W
100115W	DUPLO-TX-115-865-100	6500K	80	16,392 lm	158 lm/W
112128W	DUPLO-TX-128-827-112	2700K	80	17,343 lm	148 lm/W
112128W	DUPLO-TX-128-830-112	3000K	80	17,739 lm	152 lm/W
112128W	DUPLO-TX-128-835-112	3500K	80	18,351 lm	157 lm/W
112128W	DUPLO-TX-128-840-112	4000K	80	18,819 lm	161 lm/W
112128W	DUPLO-TX-128-850-112	5000K	80	18,702 lm	160 lm/W
112128W	DUPLO-TX-128-865-112	6500K	80	18,441 lm	158 lm/W
126142W	DUPLO-TX-142-827-126	2700K	80	19,270 lm	148 lm/W
126142W	DUPLO-TX-142-830-126	3000K	80	19,710 lm	152 lm/W
126142W	DUPLO-TX-142-835-126	3500K	80	20,390 lm	157 lm/W
126142W	DUPLO-TX-142-840-126	4000K	80	20,910 lm	161 lm/W
126142W	DUPLO-TX-142-850-126	5000K	80	20,780 lm	160 lm/W
126142W	DUPLO-TX-142-865-126	6500K	80	20,490 lm	158 lm/W
138156W	DUPLO-TX-155-827-138	2700K	80	21,197 lm	148 lm/W
138156W	DUPLO-TX-155-830-138	3000K	80	21,681 lm	152 lm/W
138156W	DUPLO-TX-155-835-138	3500K	80	22,429 lm	157 lm/W
138156W	DUPLO-TX-155-840-138	4000K	80	23,001 lm	161 lm/W
138156W	DUPLO-TX-155-850-138	5000K	80	22,858 lm	160 lm/W
138156W	DUPLO-TX-155-865-138	6500K	80	22,539 lm	158 lm/W
150170W	DUPLO-TX-170-827-150	2700K	80	23,124 lm	148 lm/W
150170W	DUPLO-TX-170-830-150	3000K	80	23,652 lm	152 lm/W
150170W	DUPLO-TX-170-835-150	3500K	80	24,468 lm	157 lm/W
150170W	DUPLO-TX-170-840-150	4000K	80	25,092 lm	161 lm/W
150170W	DUPLO-TX-170-850-150	5000K	80	24,936 lm	160 lm/W
150170W	DUPLO-TX-170-865-150	6500K	80	24,588 lm	158 lm/W
164185W	DUPLO-TX-185-827-164	2700K	80	25,051 lm	148 lm/W
164185W	DUPLO-TX-185-830-164	3000K	80	25,623 lm	152 lm/W
164185W	DUPLO-TX-185-835-164	3500K	80	26,507 lm	157 lm/W
164185W	DUPLO-TX-185-840-164	4000K	80	27,183 lm	161 lm/W
164185W	DUPLO-TX-185-850-164	5000K	80	27,014 lm	160 lm/W
164185W	DUPLO-TX-185-865-164	6500K	80	26,637 lm	158 lm/W
176200W	DUPLO-TX-200-827-176	2700K	80	26,978 lm	148 lm/W
176200W	DUPLO-TX-200-830-176	3000K	80	27,594 lm	152 lm/W
176200W	DUPLO-TX-200-835-176	3500K	80	28,546 lm	157 lm/W
176200W	DUPLO-TX-200-840-176	4000K	80	29,274 lm	161 lm/W
176200W	DUPLO-TX-200-850-176	5000K	80	29,092 lm	160 lm/W
176200W	DUPLO-TX-200-865-176	6500K	80	28,686 lm	158 lm/W
190212W	DUPLO-TX-212-827-190	2700K	80	28,905 lm	148 lm/W
190212W	DUPLO-TX-212-830-190	3000K	80	29,565 lm	152 lm/W
190212W	DUPLO-TX-212-835-190	3500K	80	30,585 lm	157 lm/W
190212W	DUPLO-TX-212-840-190	4000K	80	31,365 lm	161 lm/W
190212W	DUPLO-TX-212-850-190	5000K	80	31,170 lm	160 lm/W
190212W	DUPLO-TX-212-865-190	6500K	80	30,735 lm	158 lm/W
202225W	DUPLO-TX-225-827-202	2700K	80	30,832 lm	148 lm/W
202225W	DUPLO-TX-225-830-202	3000K	80	31,536 lm	152 lm/W
202225W	DUPLO-TX-225-835-202	3500K	80	32,624 lm	157 lm/W
202225W	DUPLO-TX-225-840-202	4000K	80	33,456 lm	161 lm/W
202225W	DUPLO-TX-225-850-202	5000K	80	33,248 lm	160 lm/W
202225W	DUPLO-TX-225-865-202	6500K	80	32,784 lm	158 lm/W
216240W	DUPLO-TX-240-827-216	2700K	80	32,759 lm	148 lm/W
216240W	DUPLO-TX-240-830-216	3000K	80	33,507 lm	152 lm/W
216240W	DUPLO-TX-240-835-216	3500K	80	34,663 lm	157 lm/W
216240W	DUPLO-TX-240-840-216	4000K	80	35,547 lm	161 lm/W
216240W	DUPLO-TX-240-850-216	5000K	80	35,326 lm	160 lm/W
216240W	DUPLO-TX-240-865-216	6500K	80	34,833 lm	158 lm/W
228255W	DUPLO-TX-255-827-228	2700K	80	34,686 lm	148 lm/W
228255W	DUPLO-TX-255-830-228	3000K	80	35,478 lm	152 lm/W
228255W	DUPLO-TX-255-835-228	3500K	80	36,702 lm	157 lm/W
228255W	DUPLO-TX-255-840-228	4000K	80	37,638 lm	161 lm/W
228255W	DUPLO-TX-255-850-228	5000K	80	37,404 lm	160 lm/W
228255W	DUPLO-TX-255-865-228	6500K	80	36,882 lm	158 lm/W
