DUPLO-T Pendant LED

Efficacy

163-176 lm/W

CRI

IP43

Warranty

5 years

The DUPLO-T series LED luminaires are meticulously crafted to deliver consistent and uniform illumination across work surfaces,

especially in environments where visual precision and comfort are paramount.

Designed to cast powerful light over expansive areas, even when mounted at a low height, the DUPLO luminaires excel in minimizing shadows.

Constructed from durable aluminum, these luminaires are coated with electrostatic paint, allowing customization in any RAL color to seamlessly integrate into diverse aesthetics.

The series offers models with lighting in various color temperature options, from 2700K to 6500K, achieving an impressive efficacy of up to 176lm/W and luminous flux up to 19044lm.

Each luminaire in the DUPLO series comes with a 5-year warranty, providing assurance of both performance and durability.

Luminaire Brochure

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1950 - 19044 lm

Power 12 - 108W

Efficacy 163 - 176 lm/W

CRI 80

CCT 2700K-6500K

IP Rating IP43

IK Rating IK08

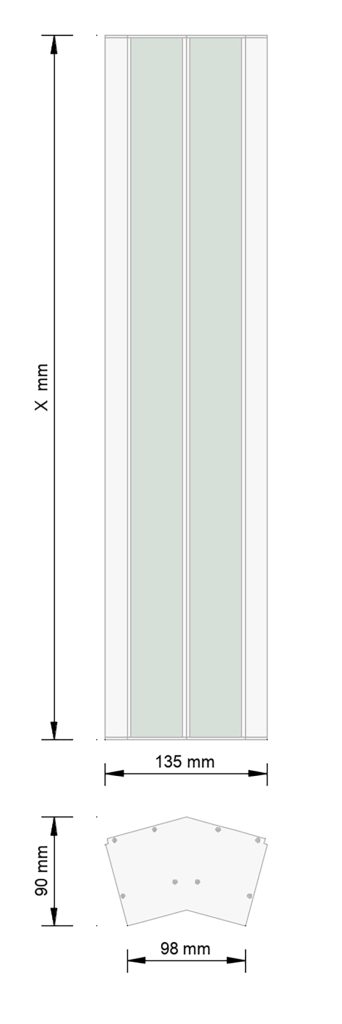

Dimensions 135mm x 90mm x (300 - 2550)mm

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
1230W	DUPLO-T-30-827-12	2700K	80	1,950 lm	163 lm/W
1230W	DUPLO-T-30-830-12	3000K	80	1,996 lm	166 lm/W
1230W	DUPLO-T-30-835-12	3500K	80	2,064 lm	172 lm/W
1230W	DUPLO-T-30-840-12	4000K	80	2,116 lm	176 lm/W
1230W	DUPLO-T-30-850-12	5000K	80	2,102 lm	175 lm/W
1230W	DUPLO-T-30-865-12	6500K	80	2,074 lm	173 lm/W
1845W	DUPLO-T-45-827-18	2700K	80	2,925 lm	163 lm/W
1845W	DUPLO-T-45-830-18	3000K	80	2,994 lm	166 lm/W
1845W	DUPLO-T-45-835-18	3500K	80	3,096 lm	172 lm/W
1845W	DUPLO-T-45-840-18	4000K	80	3,174 lm	176 lm/W
1845W	DUPLO-T-45-850-18	5000K	80	3,153 lm	175 lm/W
1845W	DUPLO-T-45-865-18	6500K	80	3,111 lm	173 lm/W
2460W	DUPLO-T-60-827-24	2700K	80	3,900 lm	163 lm/W
2460W	DUPLO-T-60-830-24	3000K	80	3,992 lm	166 lm/W
2460W	DUPLO-T-60-835-24	3500K	80	4,128 lm	172 lm/W
2460W	DUPLO-T-60-840-24	4000K	80	4,232 lm	176 lm/W
2460W	DUPLO-T-60-850-24	5000K	80	4,204 lm	175 lm/W
2460W	DUPLO-T-60-865-24	6500K	80	4,148 lm	173 lm/W
3072W	DUPLO-T-72-827-30	2700K	80	4,875 lm	163 lm/W
3072W	DUPLO-T-72-830-30	3000K	80	4,990 lm	166 lm/W
3072W	DUPLO-T-72-835-30	3500K	80	5,160 lm	172 lm/W
3072W	DUPLO-T-72-840-30	4000K	80	5,290 lm	176 lm/W
3072W	DUPLO-T-72-850-30	5000K	80	5,255 lm	175 lm/W
3072W	DUPLO-T-72-865-30	6500K	80	5,185 lm	173 lm/W
3685W	DUPLO-T-85-827-36	2700K	80	5,850 lm	163 lm/W
3685W	DUPLO-T-85-830-36	3000K	80	5,988 lm	166 lm/W
3685W	DUPLO-T-85-835-36	3500K	80	6,192 lm	172 lm/W
3685W	DUPLO-T-85-840-36	4000K	80	6,348 lm	176 lm/W
3685W	DUPLO-T-85-850-36	5000K	80	6,306 lm	175 lm/W
3685W	DUPLO-T-85-865-36	6500K	80	6,222 lm	173 lm/W
42100W	DUPLO-T-100-827-42	2700K	80	6,825 lm	163 lm/W
42100W	DUPLO-T-100-830-42	3000K	80	6,986 lm	166 lm/W
42100W	DUPLO-T-100-835-42	3500K	80	7,224 lm	172 lm/W
42100W	DUPLO-T-100-840-42	4000K	80	7,406 lm	176 lm/W
42100W	DUPLO-T-100-850-42	5000K	80	7,357 lm	175 lm/W
42100W	DUPLO-T-100-865-42	6500K	80	7,259 lm	173 lm/W
48115W	DUPLO-T-115-827-48	2700K	80	7,800 lm	163 lm/W
48115W	DUPLO-T-115-830-48	3000K	80	7,984 lm	166 lm/W
48115W	DUPLO-T-115-835-48	3500K	80	8,256 lm	172 lm/W
48115W	DUPLO-T-115-840-48	4000K	80	8,464 lm	176 lm/W
48115W	DUPLO-T-115-850-48	5000K	80	8,408 lm	175 lm/W
48115W	DUPLO-T-115-865-48	6500K	80	8,296 lm	173 lm/W
54128W	DUPLO-T-128-827-54	2700K	80	8,775 lm	163 lm/W
54128W	DUPLO-T-128-830-54	3000K	80	8,982 lm	166 lm/W
54128W	DUPLO-T-128-835-54	3500K	80	9,288 lm	172 lm/W
54128W	DUPLO-T-128-840-54	4000K	80	9,522 lm	176 lm/W
54128W	DUPLO-T-128-850-54	5000K	80	9,459 lm	175 lm/W
54128W	DUPLO-T-128-865-54	6500K	80	9,333 lm	173 lm/W
60142W	DUPLO-T-142-827-60	2700K	80	9,750 lm	163 lm/W
60142W	DUPLO-T-142-830-60	3000K	80	9,980 lm	166 lm/W
60142W	DUPLO-T-142-835-60	3500K	80	10,320 lm	172 lm/W
60142W	DUPLO-T-142-840-60	4000K	80	10,580 lm	176 lm/W
60142W	DUPLO-T-142-850-60	5000K	80	10,510 lm	175 lm/W
60142W	DUPLO-T-142-865-60	6500K	80	10,370 lm	173 lm/W
66156W	DUPLO-T-155-827-66	2700K	80	10,725 lm	163 lm/W
66156W	DUPLO-T-155-830-66	3000K	80	10,978 lm	166 lm/W
66156W	DUPLO-T-155-835-66	3500K	80	11,352 lm	172 lm/W
66156W	DUPLO-T-155-840-66	4000K	80	11,638 lm	176 lm/W
66156W	DUPLO-T-155-850-66	5000K	80	11,561 lm	175 lm/W
66156W	DUPLO-T-155-865-66	6500K	80	11,407 lm	173 lm/W
72170W	DUPLO-T-170-827-72	2700K	80	11,700 lm	163 lm/W
72170W	DUPLO-T-170-830-72	3000K	80	11,976 lm	166 lm/W
72170W	DUPLO-T-170-835-72	3500K	80	12,384 lm	172 lm/W
72170W	DUPLO-T-170-840-72	4000K	80	12,696 lm	176 lm/W
72170W	DUPLO-T-170-850-72	5000K	80	12,612 lm	175 lm/W
72170W	DUPLO-T-170-865-72	6500K	80	12,444 lm	173 lm/W
78185W	DUPLO-T-185-827-78	2700K	80	12,675 lm	163 lm/W
78185W	DUPLO-T-185-830-78	3000K	80	12,974 lm	166 lm/W
78185W	DUPLO-T-185-835-78	3500K	80	13,416 lm	172 lm/W
78185W	DUPLO-T-185-840-78	4000K	80	13,754 lm	176 lm/W
78185W	DUPLO-T-185-850-78	5000K	80	13,663 lm	175 lm/W
78185W	DUPLO-T-185-865-78	6500K	80	13,481 lm	173 lm/W
84200W	DUPLO-T-200-827-84	2700K	80	13,650 lm	163 lm/W
84200W	DUPLO-T-200-830-84	3000K	80	13,972 lm	166 lm/W
84200W	DUPLO-T-200-835-84	3500K	80	14,448 lm	172 lm/W
84200W	DUPLO-T-200-840-84	4000K	80	14,812 lm	176 lm/W
84200W	DUPLO-T-200-850-84	5000K	80	14,714 lm	175 lm/W
84200W	DUPLO-T-200-865-84	6500K	80	14,518 lm	173 lm/W
90212W	DUPLO-T-212-827-90	2700K	80	14,625 lm	163 lm/W
90212W	DUPLO-T-212-830-90	3000K	80	14,970 lm	166 lm/W
90212W	DUPLO-T-212-835-90	3500K	80	15,480 lm	172 lm/W
90212W	DUPLO-T-212-840-90	4000K	80	15,870 lm	176 lm/W
90212W	DUPLO-T-212-850-90	5000K	80	15,765 lm	175 lm/W
90212W	DUPLO-T-212-865-90	6500K	80	15,555 lm	173 lm/W
96225W	DUPLO-T-225-827-96	2700K	80	15,600 lm	163 lm/W
96225W	DUPLO-T-225-830-96	3000K	80	15,968 lm	166 lm/W
96225W	DUPLO-T-225-835-96	3500K	80	16,512 lm	172 lm/W
96225W	DUPLO-T-225-840-96	4000K	80	16,928 lm	176 lm/W
96225W	DUPLO-T-225-850-96	5000K	80	16,816 lm	175 lm/W
96225W	DUPLO-T-225-865-96	6500K	80	16,592 lm	173 lm/W
102240W	DUPLO-T-240-827-102	2700K	80	16,575 lm	163 lm/W
102240W	DUPLO-T-240-830-102	3000K	80	16,966 lm	166 lm/W
102240W	DUPLO-T-240-835-102	3500K	80	17,544 lm	172 lm/W
102240W	DUPLO-T-240-840-102	4000K	80	17,986 lm	176 lm/W
102240W	DUPLO-T-240-850-102	5000K	80	17,867 lm	175 lm/W
102240W	DUPLO-T-240-865-102	6500K	80	17,629 lm	173 lm/W
108255W	DUPLO-T-255-827-108	2700K	80	17,550 lm	163 lm/W
108255W	DUPLO-T-255-830-108	3000K	80	17,964 lm	166 lm/W
108255W	DUPLO-T-255-835-108	3500K	80	18,576 lm	172 lm/W
108255W	DUPLO-T-255-840-108	4000K	80	19,044 lm	176 lm/W
108255W	DUPLO-T-255-850-108	5000K	80	18,918 lm	175 lm/W
108255W	DUPLO-T-255-865-108	6500K	80	18,666 lm	173 lm/W
