VELISTI-C – Livestock Facility Luminaire

Efficacy
161-176 lm/W
CRI
60
IP
IP66
Warranty
5 years

VELISTI-C Luminaires

The Ideal Lighting for Modern Dairy Farms and Pig Production Units

As outlined in our Lighting Guide, both milk production in cows and the healthy growth and welfare of pigs depend not only on nutrition and care—but also on light. The VELISTI-C luminaire series, with color temperature and spectrum specially designed for livestock production, enhances milk yield in dairy cows and supports healthy development, behavioral stability, and reproductive performance in pigs.

✅ Spectrum Engineered for Maximum Livestock Performance

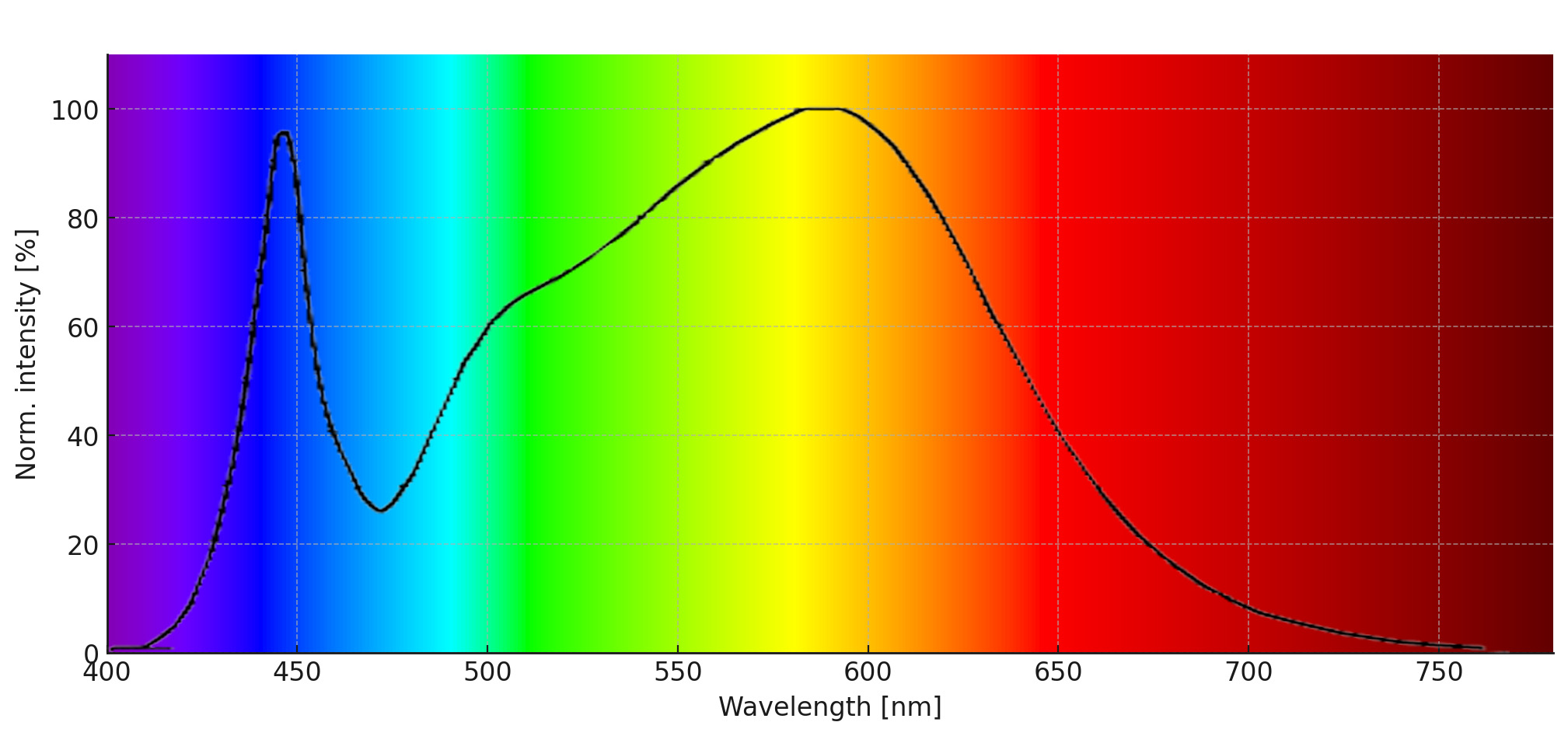

With strong emission in the blue (~450 nm) and green (~550 nm) wavelength ranges—those best perceived by both cattle and pigs—VELISTI-C supports natural animal vision, reduces stress, reinforces circadian rhythms, and stimulates key hormonal functions linked to milk production and weight gain.

velisti c spectrum

✉️ Request Quote Download PDF
📐
Calculate Required Luminaires
Via Techlumen Lux Calculator
 📄
Luminaire Brochure
Detailed specifications
 🔧
Installation Manual
Mounting and wiring instructions
 📊
Photometric Files
LDT / IES for lighting design

Technical Specifications

Luminous Flux 1050 - 30520 lm
Power 6 - 185W
Ambient Temperature -30°C to +50°C
Efficacy 161 - 176 lm/W
Power Factor 0.95
CRI 60
IP Rating IP66
IK Rating IK09
Body Aluminium
Finishing Anodized Aluminium / Powder Coating
Dimensions 62mm x 65mm x (300 - 2820)mm
Weight 1 - 5.6 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power Code CCT CRI Lumen Efficacy
30W VELISTI-C-30-6 6K 175 1,050 lm 0 lm/W
30W VELISTI-C-30-13 13K 161 2,090 lm 0 lm/W
30W VELISTI-C-30-18 18K 169 3,050 lm 0 lm/W
60W VELISTI-C-60-12 12K 176 2,110 lm 0 lm/W
60W VELISTI-C-60-25 25K 163 4,070 lm 0 lm/W
60W VELISTI-C-60-37 37K 165 6,100 lm 0 lm/W
85W VELISTI-C-85-18 18K 176 3,170 lm 0 lm/W
85W VELISTI-C-85-37 37K 169 6,270 lm 0 lm/W
85W VELISTI-C-85-56 56K 163 9,150 lm 0 lm/W
115W VELISTI-C-115-24 24K 172 4,120 lm 0 lm/W
115W VELISTI-C-115-50 50K 167 8,350 lm 0 lm/W
115W VELISTI-C-115-75 75K 163 12,200 lm 0 lm/W
142W VELISTI-C-142-30 30K 176 5,290 lm 0 lm/W
142W VELISTI-C-142-63 63K 166 10,450 lm 0 lm/W
142W VELISTI-C-142-93 93K 164 15,260 lm 0 lm/W
170W VELISTI-C-170-36 36K 175 6,300 lm 0 lm/W
170W VELISTI-C-170-75 75K 167 12,520 lm 0 lm/W
170W VELISTI-C-170-111 111K 165 18,310 lm 0 lm/W
200W VELISTI-C-200-42 42K 176 7,400 lm 0 lm/W
200W VELISTI-C-200-88 88K 166 14,620 lm 0 lm/W
200W VELISTI-C-200-130 130K 164 21,360 lm 0 lm/W
225W VELISTI-C-225-48 48K 176 8,450 lm 0 lm/W
225W VELISTI-C-225-101 101K 165 16,700 lm 0 lm/W
225W VELISTI-C-225-148 148K 165 24,400 lm 0 lm/W
255W VELISTI-C-255-54 54K 176 9,520 lm 0 lm/W
255W VELISTI-C-255-114 114K 165 18,800 lm 0 lm/W
255W VELISTI-C-255-167 167K 164 27,450 lm 0 lm/W
282W VELISTI-C-282-60 60K 176 10,580 lm 0 lm/W
282W VELISTI-C-282-127 127K 165 20,910 lm 0 lm/W
282W VELISTI-C-282-185 185K 165 30,520 lm 0 lm/W

Technical Drawing

Technical Drawing
Download DWG / PDF

Polar Intensity Diagrams

Polar intensity diagram

120o

90o

60o

40o

Asymmetric

Double Asymmetric

Batwing
