L-E-XTS Linear LED

Efficacy

133-139 lm/W

CRI

IP44

Warranty

5 years

The L-E-XTS luminaires offer exceptional flexibility and are available in a range of lengths to seamlessly meet the needs of interior linear lighting.

They are made of aluminium, powder-coated in any RAL colour of your choice.

They are designed to maintain low LED operating temperature and maximise lifespan.

With a high CRI >90, they are ideal for spaces where accurate colour rendering is critical.

They are highly powerful, with a maximum luminous flux of 40,944 lm.

They can be easily installed on the ceiling with adjustable suspension or recessed trimless mounting.
They feature a microprismatic diffuser for comfortable glare-free lighting, or optional opal cover for uniform illumination.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 2462 - 40944 lm

Power 18 - 296W

Ambient Temperature -30°C to +50°C

Efficacy 133 - 139 lm/W

Power Factor 0.95

CRI 90

CCT 3000K-4000K

IP Rating IP44

IK Rating IK09

Body Aluminium

Finishing Powder coating - RAL selection

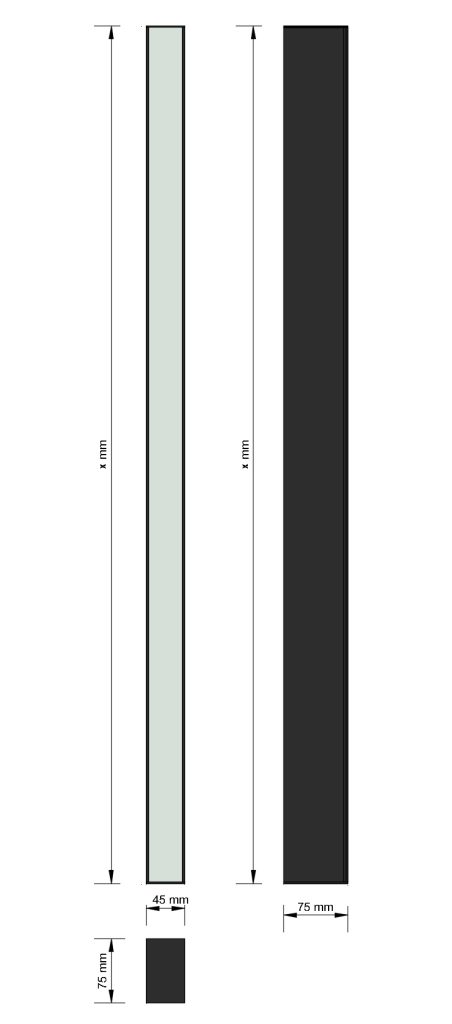

Dimensions 45mm x 75mm x (300 - 4220)mm

Weight 1.2 - 8.6 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
18W	L-E-XTS-30-930-18	3000	90	2,462 lm	137 lm/W
18W	L-E-XTS-30-940-18	4000	90	2,559 lm	142 lm/W
37W	L-E-XTS-60-930-37	3000	90	4,924 lm	133 lm/W
37W	L-E-XTS-60-940-37	4000	90	5,118 lm	138 lm/W
56W	L-E-XTS-85-930-56	3000	90	7,386 lm	132 lm/W
56W	L-E-XTS-85-940-56	4000	90	7,677 lm	137 lm/W
75W	L-E-XTS-115-930-75	3000	90	9,848 lm	131 lm/W
75W	L-E-XTS-115-940-75	4000	90	10,236 lm	136 lm/W
93W	L-E-XTS-142-930-93	3000	90	12,310 lm	132 lm/W
93W	L-E-XTS-142-940-93	4000	90	12,795 lm	138 lm/W
111W	L-E-XTS-170-930-111	3000	90	14,772 lm	133 lm/W
111W	L-E-XTS-170-940-111	4000	90	15,354 lm	138 lm/W
130W	L-E-XTS-200-930-130	3000	90	17,234 lm	133 lm/W
130W	L-E-XTS-200-940-130	4000	90	17,913 lm	138 lm/W
148W	L-E-XTS-225-930-148	3000	90	19,696 lm	133 lm/W
148W	L-E-XTS-225-940-148	4000	90	20,472 lm	138 lm/W
167W	L-E-XTS-255-930-167	3000	90	22,158 lm	133 lm/W
167W	L-E-XTS-255-940-167	4000	90	23,031 lm	138 lm/W
185W	L-E-XTS-282-930-185	3000	90	24,620 lm	133 lm/W
185W	L-E-XTS-282-940-185	4000	90	25,590 lm	138 lm/W
202W	L-E-XTS-310-930-202	3000	90	27,082 lm	134 lm/W
202W	L-E-XTS-310-940-202	4000	90	28,149 lm	139 lm/W
222W	L-E-XTS-340-930-222	3000	90	29,544 lm	133 lm/W
222W	L-E-XTS-340-940-222	4000	90	30,708 lm	138 lm/W
240W	L-E-XTS-365-930-240	3000	90	32,006 lm	133 lm/W
240W	L-E-XTS-365-940-240	4000	90	33,267 lm	139 lm/W
259W	L-E-XTS-395-930-259	3000	90	34,468 lm	133 lm/W
259W	L-E-XTS-395-940-259	4000	90	35,826 lm	138 lm/W
277W	L-E-XTS-422-930-277	3000	90	36,930 lm	133 lm/W
277W	L-E-XTS-422-940-277	4000	90	38,385 lm	139 lm/W
296W	L-E-XTS-450-930-296	3000	90	39,392 lm	133 lm/W
296W	L-E-XTS-450-940-296	4000	90	40,944 lm	138 lm/W
