L-E-XTH Linear LED

Efficacy

132-142 lm/W

CRI

IP44

Warranty

5 years

L-E-XTH offer exceptional versatility, available in a range of lengths to seamlessly meet your linear interior lighting requirements.

Crafted from lightweight aluminum and finished with electrostatic paint, available in your choice of any RAL color, these fixtures combine elegance with straightforward installation options.

With a high CRI rating >90, L-E-XTH are ideal for spaces where accurate color representation is crucial.

They can be effortlessly suspended or integrated into a suspended ceiling.

L-E-XTH luminaires include a five-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1638 - 26280 lm

Power 12 - 187W

Ambient Temperature -30°C to +50°C

Efficacy 132 - 142 lm/W

Power Factor 0.95

CRI 90

CCT 2700K-4000K

IP Rating IP44

IK Rating IK09

Body Aluminium

Finishing Powder coating - RAL selection

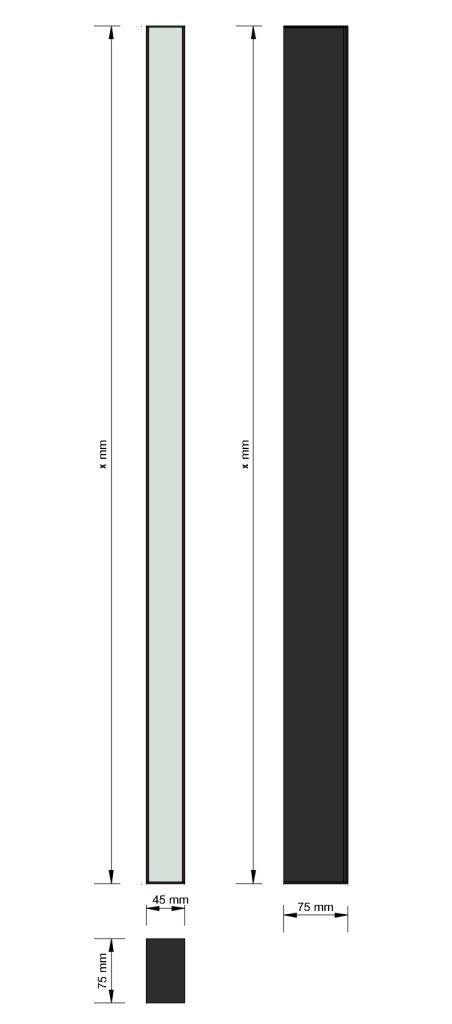

Dimensions 45mm x 75mm x (300 - 4220)mm

Weight 1.2 - 8.6 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
12W	L-E-XTH-30-927-12	2700	90	1,638 lm	137 lm/W
12W	L-E-XTH-30-930-12	3000	90	1,688 lm	141 lm/W
12W	L-E-XTH-30-935-12	3500	90	1,732 lm	144 lm/W
12W	L-E-XTH-30-940-12	4000	90	1,752 lm	146 lm/W
18W	L-E-XTH-45-927-18	2700	90	2,457 lm	137 lm/W
18W	L-E-XTH-45-930-18	3000	90	2,532 lm	141 lm/W
18W	L-E-XTH-45-935-18	3500	90	2,598 lm	144 lm/W
18W	L-E-XTH-45-940-18	4000	90	2,628 lm	146 lm/W
25W	L-E-XTH-60-927-25	2700	90	3,276 lm	131 lm/W
25W	L-E-XTH-60-930-25	3000	90	3,376 lm	135 lm/W
25W	L-E-XTH-60-935-25	3500	90	3,464 lm	139 lm/W
25W	L-E-XTH-60-940-25	4000	90	3,504 lm	140 lm/W
31W	L-E-XTH-72-927-31	2700	90	4,095 lm	132 lm/W
31W	L-E-XTH-72-930-31	3000	90	4,220 lm	136 lm/W
31W	L-E-XTH-72-935-31	3500	90	4,330 lm	140 lm/W
31W	L-E-XTH-72-940-31	4000	90	4,380 lm	141 lm/W
37W	L-E-XTH-85-927-37	2700	90	4,914 lm	133 lm/W
37W	L-E-XTH-85-930-37	3000	90	5,064 lm	137 lm/W
37W	L-E-XTH-85-935-37	3500	90	5,196 lm	140 lm/W
37W	L-E-XTH-85-940-37	4000	90	5,256 lm	142 lm/W
43W	L-E-XTH-100-927-43	2700	90	5,733 lm	133 lm/W
43W	L-E-XTH-100-930-43	3000	90	5,908 lm	137 lm/W
43W	L-E-XTH-100-935-43	3500	90	6,062 lm	141 lm/W
43W	L-E-XTH-100-940-43	4000	90	6,132 lm	143 lm/W
50W	L-E-XTH-115-927-50	2700	90	6,552 lm	131 lm/W
50W	L-E-XTH-115-930-50	3000	90	6,752 lm	135 lm/W
50W	L-E-XTH-115-935-50	3500	90	6,928 lm	139 lm/W
50W	L-E-XTH-115-940-50	4000	90	7,008 lm	140 lm/W
56W	L-E-XTH-126-927-56	2700	90	7,371 lm	132 lm/W
56W	L-E-XTH-126-930-56	3000	90	7,596 lm	136 lm/W
56W	L-E-XTH-126-935-56	3500	90	7,794 lm	139 lm/W
56W	L-E-XTH-126-940-56	4000	90	7,884 lm	141 lm/W
62W	L-E-XTH-142-927-62	2700	90	8,190 lm	132 lm/W
62W	L-E-XTH-142-930-62	3000	90	8,440 lm	136 lm/W
62W	L-E-XTH-142-935-62	3500	90	8,660 lm	140 lm/W
62W	L-E-XTH-142-940-62	4000	90	8,760 lm	141 lm/W
68W	L-E-XTH-156-927-68	2700	90	9,009 lm	132 lm/W
68W	L-E-XTH-156-930-68	3000	90	9,284 lm	137 lm/W
68W	L-E-XTH-156-935-68	3500	90	9,526 lm	140 lm/W
68W	L-E-XTH-156-940-68	4000	90	9,636 lm	142 lm/W
75W	L-E-XTH-170-927-75	2700	90	9,828 lm	131 lm/W
75W	L-E-XTH-170-930-75	3000	90	10,128 lm	135 lm/W
75W	L-E-XTH-170-935-75	3500	90	10,392 lm	139 lm/W
75W	L-E-XTH-170-940-75	4000	90	10,512 lm	140 lm/W
81W	L-E-XTH-185-927-81	2700	90	10,647 lm	131 lm/W
81W	L-E-XTH-185-930-81	3000	90	10,972 lm	135 lm/W
81W	L-E-XTH-185-935-81	3500	90	11,258 lm	139 lm/W
81W	L-E-XTH-185-940-81	4000	90	11,388 lm	141 lm/W
87W	L-E-XTH-200-927-87	2700	90	11,466 lm	132 lm/W
87W	L-E-XTH-200-930-87	3000	90	11,816 lm	136 lm/W
87W	L-E-XTH-200-935-87	3500	90	12,124 lm	139 lm/W
87W	L-E-XTH-200-940-87	4000	90	12,264 lm	141 lm/W
93W	L-E-XTH-212-927-93	2700	90	12,285 lm	132 lm/W
93W	L-E-XTH-212-930-93	3000	90	12,660 lm	136 lm/W
93W	L-E-XTH-212-935-93	3500	90	12,990 lm	140 lm/W
93W	L-E-XTH-212-940-93	4000	90	13,140 lm	141 lm/W
100W	L-E-XTH-225-927-100	2700	90	13,104 lm	131 lm/W
100W	L-E-XTH-225-930-100	3000	90	13,504 lm	135 lm/W
100W	L-E-XTH-225-935-100	3500	90	13,856 lm	139 lm/W
100W	L-E-XTH-225-940-100	4000	90	14,016 lm	140 lm/W
108W	L-E-XTH-240-927-108	2700	90	13,923 lm	129 lm/W
108W	L-E-XTH-240-930-108	3000	90	14,348 lm	133 lm/W
108W	L-E-XTH-240-935-108	3500	90	14,722 lm	136 lm/W
108W	L-E-XTH-240-940-108	4000	90	14,892 lm	138 lm/W
111W	L-E-XTH-255-927-111	2700	90	14,742 lm	133 lm/W
111W	L-E-XTH-255-930-111	3000	90	15,192 lm	137 lm/W
111W	L-E-XTH-255-935-111	3500	90	15,588 lm	140 lm/W
111W	L-E-XTH-255-940-111	4000	90	15,768 lm	142 lm/W
117W	L-E-XTH-270-927-117	2700	90	15,561 lm	133 lm/W
117W	L-E-XTH-270-930-117	3000	90	16,036 lm	137 lm/W
117W	L-E-XTH-270-935-117	3500	90	16,454 lm	141 lm/W
117W	L-E-XTH-270-940-117	4000	90	16,644 lm	142 lm/W
123W	L-E-XTH-282-927-123	2700	90	16,380 lm	133 lm/W
123W	L-E-XTH-282-930-123	3000	90	16,880 lm	137 lm/W
123W	L-E-XTH-282-935-123	3500	90	17,320 lm	141 lm/W
123W	L-E-XTH-282-940-123	4000	90	17,520 lm	142 lm/W
130W	L-E-XTH-295-927-130	2700	90	17,199 lm	132 lm/W
130W	L-E-XTH-295-930-130	3000	90	17,724 lm	136 lm/W
130W	L-E-XTH-295-935-130	3500	90	18,186 lm	140 lm/W
130W	L-E-XTH-295-940-130	4000	90	18,396 lm	142 lm/W
136W	L-E-XTH-310-927-136	2700	90	18,018 lm	132 lm/W
136W	L-E-XTH-310-930-136	3000	90	18,568 lm	137 lm/W
136W	L-E-XTH-310-935-136	3500	90	19,052 lm	140 lm/W
136W	L-E-XTH-310-940-136	4000	90	19,272 lm	142 lm/W
143W	L-E-XTH-325-927-143	2700	90	18,837 lm	132 lm/W
143W	L-E-XTH-325-930-143	3000	90	19,412 lm	136 lm/W
143W	L-E-XTH-325-935-143	3500	90	19,918 lm	139 lm/W
143W	L-E-XTH-325-940-143	4000	90	20,148 lm	141 lm/W
150W	L-E-XTH-340-927-150	2700	90	19,656 lm	131 lm/W
150W	L-E-XTH-340-930-150	3000	90	20,256 lm	135 lm/W
150W	L-E-XTH-340-935-150	3500	90	20,784 lm	139 lm/W
150W	L-E-XTH-340-940-150	4000	90	21,024 lm	140 lm/W
156W	L-E-XTH-352-927-156	2700	90	20,475 lm	131 lm/W
156W	L-E-XTH-352-930-156	3000	90	21,100 lm	135 lm/W
156W	L-E-XTH-352-935-156	3500	90	21,650 lm	139 lm/W
156W	L-E-XTH-352-940-156	4000	90	21,900 lm	140 lm/W
162W	L-E-XTH-365-927-162	2700	90	21,294 lm	131 lm/W
162W	L-E-XTH-365-930-162	3000	90	21,944 lm	135 lm/W
162W	L-E-XTH-365-935-162	3500	90	22,516 lm	139 lm/W
162W	L-E-XTH-365-940-162	4000	90	22,776 lm	141 lm/W
168W	L-E-XTH-380-927-166	2700	90	22,113 lm	132 lm/W
168W	L-E-XTH-380-930-166	3000	90	22,788 lm	136 lm/W
168W	L-E-XTH-380-935-166	3500	90	23,382 lm	139 lm/W
168W	L-E-XTH-380-940-166	4000	90	23,652 lm	141 lm/W
174W	L-E-XTH-395-927-174	2700	90	22,932 lm	132 lm/W
174W	L-E-XTH-395-930-174	3000	90	23,632 lm	136 lm/W
174W	L-E-XTH-395-935-174	3500	90	24,248 lm	139 lm/W
174W	L-E-XTH-395-940-174	4000	90	24,528 lm	141 lm/W
181W	L-E-XTH-410-927-181	2700	90	23,751 lm	131 lm/W
181W	L-E-XTH-410-930-181	3000	90	24,476 lm	135 lm/W
181W	L-E-XTH-410-935-181	3500	90	25,114 lm	139 lm/W
181W	L-E-XTH-410-940-181	4000	90	25,404 lm	140 lm/W
187W	L-E-XTH-422-927-187	2700	90	24,570 lm	131 lm/W
187W	L-E-XTH-422-930-187	3000	90	25,320 lm	135 lm/W
187W	L-E-XTH-422-935-187	3500	90	25,980 lm	139 lm/W
187W	L-E-XTH-422-940-187	4000	90	26,280 lm	141 lm/W
