Linear LED Lights

L-E-TX Linear LED

Efficacy
148-161 lm/W
CRI
80
IP
IP33
Warranty
5 years

The L-E-TX linear LED luminaires offer outstanding versatility across multiple lengths to meet interior linear-lighting needs seamlessly.

Built from aluminium and finished with electrostatic powder coating in any RAL colour, their thermal design keeps LED operating temperatures low to maximise lifetime.

They can be suspended or trimless recessed into ceilings. Available with a micro-prismatic diffuser for glare-free lighting or an optional opal diffuser for uniform distribution.

5-year warranty.

✉️ Request Quote Download PDF
📐
Calculate Required Luminaires
Via Techlumen Lux Calculator
 📄
Luminaire Brochure
Detailed specifications
 🔧
Installation Manual
Mounting and wiring instructions
 📊
Photometric Files
LDT / IES for lighting design

Technical Specifications

Luminous Flux 310 - 1250 lm
Power 13 - 186W
Ambient Temperature -30°C to +40°C
Efficacy 148 - 161 lm/W
CRI 80
CCT 3000K-6500K
IP Rating IP33
Body Aluminium
Dimensions 34mm x 62mm x (400- 700)
Weight 1 - 1.5 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power Code CCT CRI Lumen Efficacy
1330W L-E-TX-30-827-13 2700K 80 1,927 lm 148 lm/W
1330W L-E-TX-30-830-13 3000K 80 1,971 lm 152 lm/W
1330W L-E-TX-30-835-13 3500K 80 2,039 lm 157 lm/W
1330W L-E-TX-30-840-13 4000K 80 2,091 lm 161 lm/W
1330W L-E-TX-30-850-13 5000K 80 2,078 lm 160 lm/W
1330W L-E-TX-30-865-13 6500K 80 2,049 lm 158 lm/W
1945W L-E-TX-45-827-19 2700K 80 2,890 lm 148 lm/W
1945W L-E-TX-45-830-19 3000K 80 2,957 lm 152 lm/W
1945W L-E-TX-45-835-19 3500K 80 3,059 lm 157 lm/W
1945W L-E-TX-45-840-19 4000K 80 3,137 lm 161 lm/W
1945W L-E-TX-45-850-19 5000K 80 3,117 lm 160 lm/W
1945W L-E-TX-45-865-19 6500K 80 3,074 lm 158 lm/W
2560W L-E-TX-60-827-25 2700K 80 3,854 lm 148 lm/W
2560W L-E-TX-60-830-25 3000K 80 3,942 lm 152 lm/W
2560W L-E-TX-60-835-25 3500K 80 4,078 lm 157 lm/W
2560W L-E-TX-60-840-25 4000K 80 4,182 lm 161 lm/W
2560W L-E-TX-60-850-25 5000K 80 4,156 lm 160 lm/W
2560W L-E-TX-60-865-25 6500K 80 4,098 lm 158 lm/W
3172W L-E-TX-72-827-31 2700K 80 4,818 lm 148 lm/W
3172W L-E-TX-72-830-31 3000K 80 4,928 lm 152 lm/W
3172W L-E-TX-72-835-31 3500K 80 5,098 lm 157 lm/W
3172W L-E-TX-72-840-31 4000K 80 5,228 lm 161 lm/W
3172W L-E-TX-72-850-31 5000K 80 5,195 lm 160 lm/W
3172W L-E-TX-72-865-31 6500K 80 5,123 lm 158 lm/W
3785W L-E-TX-85-827-37 2700K 80 5,781 lm 148 lm/W
3785W L-E-TX-85-830-37 3000K 80 5,913 lm 152 lm/W
3785W L-E-TX-85-835-37 3500K 80 6,117 lm 157 lm/W
3785W L-E-TX-85-840-37 4000K 80 6,273 lm 161 lm/W
3785W L-E-TX-85-850-37 5000K 80 6,234 lm 160 lm/W
3785W L-E-TX-85-865-37 6500K 80 6,147 lm 158 lm/W
44100W L-E-TX-100-827-44 2700K 80 6,745 lm 148 lm/W
44100W L-E-TX-100-830-44 3000K 80 6,899 lm 152 lm/W
44100W L-E-TX-100-835-44 3500K 80 7,137 lm 157 lm/W
44100W L-E-TX-100-840-44 4000K 80 7,319 lm 161 lm/W
44100W L-E-TX-100-850-44 5000K 80 7,273 lm 160 lm/W
44100W L-E-TX-100-865-44 6500K 80 7,172 lm 158 lm/W
50115W L-E-TX-115-827-50 2700K 80 7,708 lm 148 lm/W
50115W L-E-TX-115-830-50 3000K 80 7,884 lm 152 lm/W
50115W L-E-TX-115-835-50 3500K 80 8,156 lm 157 lm/W
50115W L-E-TX-115-840-50 4000K 80 8,364 lm 161 lm/W
50115W L-E-TX-115-850-50 5000K 80 8,312 lm 160 lm/W
50115W L-E-TX-115-865-50 6500K 80 8,196 lm 158 lm/W
56126W L-E-TX-126-827-56 2700K 80 8,672 lm 148 lm/W
56126W L-E-TX-126-830-56 3000K 80 8,870 lm 152 lm/W
56126W L-E-TX-126-835-56 3500K 80 9,176 lm 157 lm/W
56126W L-E-TX-126-840-56 4000K 80 9,410 lm 161 lm/W
56126W L-E-TX-126-850-56 5000K 80 9,351 lm 160 lm/W
56126W L-E-TX-126-865-56 6500K 80 9,221 lm 158 lm/W
63142W L-E-TX-142-827-63 2700K 80 9,635 lm 148 lm/W
63142W L-E-TX-142-830-63 3000K 80 9,855 lm 152 lm/W
63142W L-E-TX-142-835-63 3500K 80 10,195 lm 157 lm/W
63142W L-E-TX-142-840-63 4000K 80 10,455 lm 161 lm/W
63142W L-E-TX-142-850-63 5000K 80 10,390 lm 160 lm/W
63142W L-E-TX-142-865-63 6500K 80 10,245 lm 158 lm/W
69156W L-E-TX-156-827-69 2700K 80 10,599 lm 148 lm/W
69156W L-E-TX-156-830-69 3000K 80 10,841 lm 152 lm/W
69156W L-E-TX-156-835-69 3500K 80 11,215 lm 157 lm/W
69156W L-E-TX-156-840-69 4000K 80 11,501 lm 161 lm/W
69156W L-E-TX-156-850-69 5000K 80 11,429 lm 160 lm/W
69156W L-E-TX-156-865-69 6500K 80 11,270 lm 158 lm/W
75170W L-E-TX-170-827-75 2700K 80 11,562 lm 148 lm/W
75170W L-E-TX-170-830-75 3000K 80 11,826 lm 152 lm/W
75170W L-E-TX-170-835-75 3500K 80 12,234 lm 157 lm/W
75170W L-E-TX-170-840-75 4000K 80 12,546 lm 161 lm/W
75170W L-E-TX-170-850-75 5000K 80 12,468 lm 160 lm/W
75170W L-E-TX-170-865-75 6500K 80 12,294 lm 158 lm/W
82185W L-E-TX-185-827-82 2700K 80 12,526 lm 148 lm/W
82185W L-E-TX-185-830-82 3000K 80 12,812 lm 152 lm/W
82185W L-E-TX-185-835-82 3500K 80 13,254 lm 157 lm/W
82185W L-E-TX-185-840-82 4000K 80 13,592 lm 161 lm/W
82185W L-E-TX-185-850-82 5000K 80 13,507 lm 160 lm/W
82185W L-E-TX-185-865-82 6500K 80 13,319 lm 158 lm/W
88200W L-E-TX-200-827-88 2700K 80 13,489 lm 148 lm/W
88200W L-E-TX-200-830-88 3000K 80 13,797 lm 152 lm/W
88200W L-E-TX-200-835-88 3500K 80 14,273 lm 157 lm/W
88200W L-E-TX-200-840-88 4000K 80 14,637 lm 161 lm/W
88200W L-E-TX-200-850-88 5000K 80 14,546 lm 160 lm/W
88200W L-E-TX-200-865-88 6500K 80 14,343 lm 158 lm/W
95212W L-E-TX-212-827-95 2700K 80 14,453 lm 148 lm/W
95212W L-E-TX-212-830-95 3000K 80 14,783 lm 152 lm/W
95212W L-E-TX-212-835-95 3500K 80 15,293 lm 157 lm/W
95212W L-E-TX-212-840-95 4000K 80 15,683 lm 161 lm/W
95212W L-E-TX-212-850-95 5000K 80 15,585 lm 160 lm/W
95212W L-E-TX-212-865-95 6500K 80 15,368 lm 158 lm/W
101225W L-E-TX-225-827-101 2700K 80 15,416 lm 148 lm/W
101225W L-E-TX-225-830-101 3000K 80 15,768 lm 152 lm/W
101225W L-E-TX-225-835-101 3500K 80 16,312 lm 157 lm/W
101225W L-E-TX-225-840-101 4000K 80 16,728 lm 161 lm/W
101225W L-E-TX-225-850-101 5000K 80 16,624 lm 160 lm/W
101225W L-E-TX-225-865-101 6500K 80 16,392 lm 158 lm/W
108240W L-E-TX-240-827-108 2700K 80 16,380 lm 148 lm/W
108240W L-E-TX-240-830-108 3000K 80 16,754 lm 152 lm/W
108240W L-E-TX-240-835-108 3500K 80 17,332 lm 157 lm/W
108240W L-E-TX-240-840-108 4000K 80 17,774 lm 161 lm/W
108240W L-E-TX-240-850-108 5000K 80 17,663 lm 160 lm/W
108240W L-E-TX-240-865-108 6500K 80 17,417 lm 158 lm/W
114255W L-E-TX-255-827-114 2700K 80 17,343 lm 148 lm/W
114255W L-E-TX-255-830-114 3000K 80 17,739 lm 152 lm/W
114255W L-E-TX-255-835-114 3500K 80 18,351 lm 157 lm/W
114255W L-E-TX-255-840-114 4000K 80 18,819 lm 161 lm/W
114255W L-E-TX-255-850-114 5000K 80 18,702 lm 160 lm/W
114255W L-E-TX-255-865-114 6500K 80 18,441 lm 158 lm/W
121270W L-E-TX-270-827-121 2700K 80 18,307 lm 148 lm/W
121270W L-E-TX-270-830-121 3000K 80 18,725 lm 152 lm/W
121270W L-E-TX-270-835-121 3500K 80 19,371 lm 157 lm/W
121270W L-E-TX-270-840-121 4000K 80 19,865 lm 161 lm/W
121270W L-E-TX-270-850-121 5000K 80 19,741 lm 160 lm/W
121270W L-E-TX-270-865-121 6500K 80 19,466 lm 158 lm/W
127282W L-E-TX-282-827-127 2700K 80 19,270 lm 148 lm/W
127282W L-E-TX-282-830-127 3000K 80 19,710 lm 152 lm/W
127282W L-E-TX-282-835-127 3500K 80 20,390 lm 157 lm/W
127282W L-E-TX-282-840-127 4000K 80 20,910 lm 161 lm/W
127282W L-E-TX-282-850-127 5000K 80 20,780 lm 160 lm/W
127282W L-E-TX-282-865-127 6500K 80 20,490 lm 158 lm/W
134295W L-E-TX-295-827-134 2700K 80 20,234 lm 148 lm/W
134295W L-E-TX-295-830-134 3000K 80 20,696 lm 152 lm/W
134295W L-E-TX-295-835-134 3500K 80 21,410 lm 157 lm/W
134295W L-E-TX-295-840-134 4000K 80 21,956 lm 161 lm/W
134295W L-E-TX-295-850-134 5000K 80 21,819 lm 160 lm/W
134295W L-E-TX-295-865-134 6500K 80 21,515 lm 158 lm/W
140310W L-E-TX-310-827-140 2700K 80 21,197 lm 148 lm/W
140310W L-E-TX-310-830-140 3000K 80 21,681 lm 152 lm/W
140310W L-E-TX-310-835-140 3500K 80 22,429 lm 157 lm/W
140310W L-E-TX-310-840-140 4000K 80 23,001 lm 161 lm/W
140310W L-E-TX-310-850-140 5000K 80 22,858 lm 160 lm/W
140310W L-E-TX-310-865-140 6500K 80 22,539 lm 158 lm/W
147325W L-E-TX-325-827-147 2700K 80 22,161 lm 148 lm/W
147325W L-E-TX-325-830-147 3000K 80 22,667 lm 152 lm/W
147325W L-E-TX-325-835-147 3500K 80 23,449 lm 157 lm/W
147325W L-E-TX-325-840-147 4000K 80 24,047 lm 161 lm/W
147325W L-E-TX-325-850-147 5000K 80 23,897 lm 160 lm/W
147325W L-E-TX-325-865-147 6500K 80 23,564 lm 158 lm/W
153340W L-E-TX-340-827-153 2700K 80 23,124 lm 148 lm/W
153340W L-E-TX-340-830-153 3000K 80 23,652 lm 152 lm/W
153340W L-E-TX-340-835-153 3500K 80 24,468 lm 157 lm/W
153340W L-E-TX-340-840-153 4000K 80 25,092 lm 161 lm/W
153340W L-E-TX-340-850-153 5000K 80 24,936 lm 160 lm/W
153340W L-E-TX-340-865-153 6500K 80 24,588 lm 158 lm/W
160352W L-E-TX-352-827-160 2700K 80 24,088 lm 148 lm/W
160352W L-E-TX-352-830-160 3000K 80 24,638 lm 152 lm/W
160352W L-E-TX-352-835-160 3500K 80 25,488 lm 157 lm/W
160352W L-E-TX-352-840-160 4000K 80 26,138 lm 161 lm/W
160352W L-E-TX-352-850-160 5000K 80 25,975 lm 160 lm/W
160352W L-E-TX-352-865-160 6500K 80 25,613 lm 158 lm/W
166365W L-E-TX-365-827-166 2700K 80 25,051 lm 148 lm/W
166365W L-E-TX-365-830-166 3000K 80 25,623 lm 152 lm/W
166365W L-E-TX-365-835-166 3500K 80 26,507 lm 157 lm/W
166365W L-E-TX-365-840-166 4000K 80 27,183 lm 161 lm/W
166365W L-E-TX-365-850-166 5000K 80 27,014 lm 160 lm/W
166365W L-E-TX-365-865-166 6500K 80 26,637 lm 158 lm/W
173380W L-E-TX-380-827-173 2700K 80 26,015 lm 148 lm/W
173380W L-E-TX-380-830-173 3000K 80 26,609 lm 152 lm/W
173380W L-E-TX-380-835-173 3500K 80 27,527 lm 157 lm/W
173380W L-E-TX-380-840-173 4000K 80 28,229 lm 161 lm/W
173380W L-E-TX-380-850-173 5000K 80 28,053 lm 160 lm/W
173380W L-E-TX-380-865-173 6500K 80 27,662 lm 158 lm/W
180395W L-E-TX-395-827-180 2700K 80 26,978 lm 148 lm/W
180395W L-E-TX-395-830-180 3000K 80 27,594 lm 152 lm/W
180395W L-E-TX-395-835-180 3500K 80 28,546 lm 157 lm/W
180395W L-E-TX-395-840-180 4000K 80 29,274 lm 161 lm/W
180395W L-E-TX-395-850-180 5000K 80 29,092 lm 160 lm/W
180395W L-E-TX-395-865-180 6500K 80 28,686 lm 158 lm/W
186410W L-E-TX-410-827-186 2700K 80 27,942 lm 148 lm/W
186410W L-E-TX-410-830-186 3000K 80 28,580 lm 152 lm/W
186410W L-E-TX-410-835-186 3500K 80 29,566 lm 157 lm/W
186410W L-E-TX-410-840-186 4000K 80 30,320 lm 161 lm/W
186410W L-E-TX-410-850-186 5000K 80 30,131 lm 160 lm/W
186410W L-E-TX-410-865-186 6500K 80 29,711 lm 158 lm/W

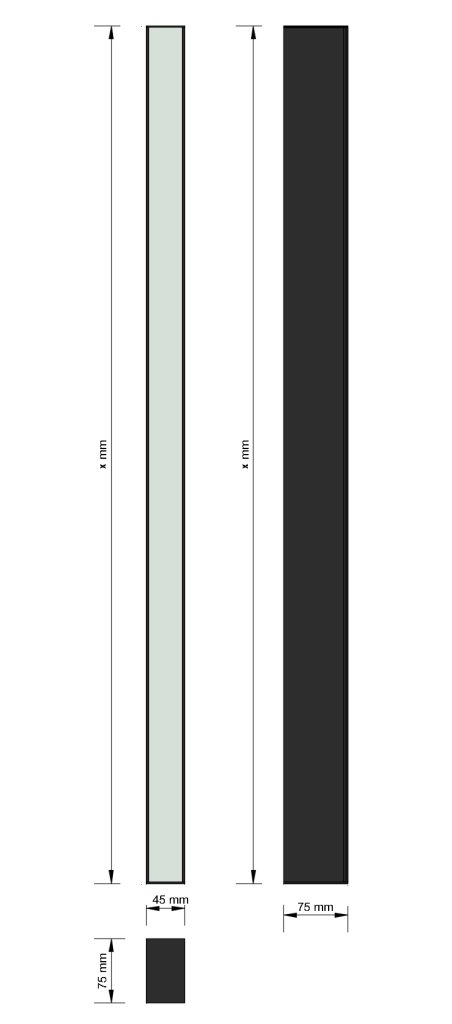

Technical Drawing

Technical Drawing
Download DWG / PDF

Polar Intensity Diagrams
