L-E-XT Linear LED

Efficacy

139-148 lm/W

CRI

IP33

Warranty

5 years

The L-E-XT linear LED luminaires offer exceptional versatility, available in various lengths to seamlessly meet any interior linear-lighting requirement.

Crafted from aluminium and finished with electrostatic powder coating in any RAL colour, these fixtures combine elegance with thermal efficiency for long LED lifetime.

Featuring a high CRI > 90, they are ideal for environments where accurate colour rendering is critical.

They can be suspended or integrated (trimless) into suspended ceilings. Equipped with micro-prismatic diffuser for glare-free lighting or optional opal cover for uniform diffusion.

5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 310 - 1250 lm

Power 8 - 140W

Ambient Temperature -30°C to +40°C

Efficacy 139 - 148 lm/W

CRI 90

CCT 2700K-4000K

IP Rating IP33

Body Aluminium

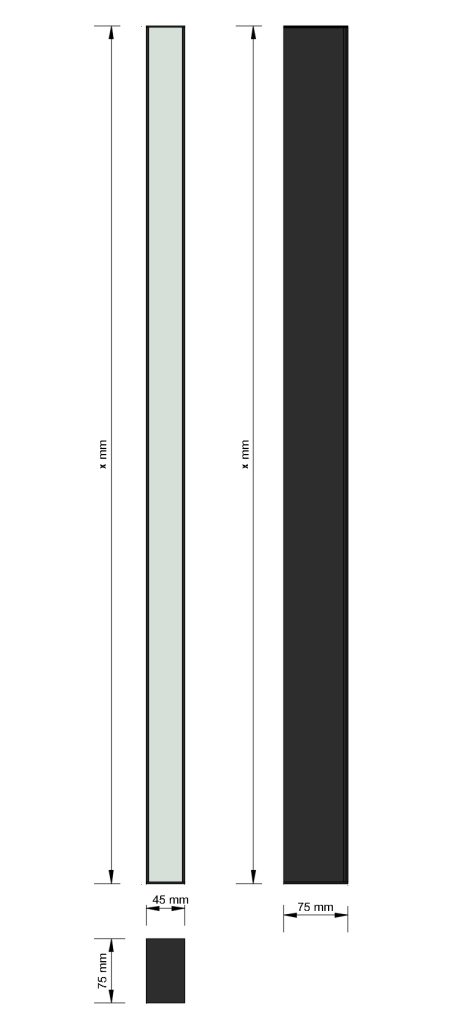

Dimensions 34mm x 62mm x (400- 700)

Weight 1 - 1.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
8W	L-E-XT-30-927-8	2700K	90	1,134 lm	141 lm/W
8W	L-E-XT-30-930-8	3000K	90	1,143 lm	147 lm/W
8W	L-E-XT-30-940-8	4000K	90	1,193 lm	153 lm/W
16W	L-E-XT-60-927-16	2700K	90	2,268 lm	141 lm/W
16W	L-E-XT-60-930-16	3000K	90	2,286 lm	147 lm/W
16W	L-E-XT-60-940-16	4000K	90	2,386 lm	153 lm/W
24W	L-E-XT-85-927-24	2700K	90	3,402 lm	141 lm/W
24W	L-E-XT-85-930-24	3000K	90	3,429 lm	147 lm/W
24W	L-E-XT-85-940-24	4000K	90	3,579 lm	153 lm/W
32W	L-E-XT-115-927-32	2700K	90	4,536 lm	141 lm/W
32W	L-E-XT-115-930-32	3000K	90	4,572 lm	147 lm/W
32W	L-E-XT-115-940-32	4000K	90	4,772 lm	153 lm/W
40W	L-E-XT-142-927-40	2700K	90	5,670 lm	141 lm/W
40W	L-E-XT-142-930-40	3000K	90	5,715 lm	147 lm/W
40W	L-E-XT-142-940-40	4000K	90	5,965 lm	153 lm/W
48W	L-E-XT-170-927-48	2700K	90	6,804 lm	141 lm/W
48W	L-E-XT-170-930-48	3000K	90	6,858 lm	147 lm/W
48W	L-E-XT-170-940-48	4000K	90	7,158 lm	153 lm/W
56W	L-E-XT-200-927-56	2700K	90	7,938 lm	141 lm/W
56W	L-E-XT-200-930-56	3000K	90	8,001 lm	147 lm/W
56W	L-E-XT-200-940-56	4000K	90	8,351 lm	153 lm/W
64W	L-E-XT-225-927-64	2700K	90	9,072 lm	141 lm/W
64W	L-E-XT-225-930-64	3000K	90	9,144 lm	147 lm/W
64W	L-E-XT-225-940-64	4000K	90	9,544 lm	153 lm/W
72W	L-E-XT-255-927-72	2700K	90	10,206 lm	141 lm/W
72W	L-E-XT-255-930-72	3000K	90	10,287 lm	147 lm/W
72W	L-E-XT-255-940-72	4000K	90	10,737 lm	153 lm/W
80W	L-E-XT-282-927-80	2700K	90	11,340 lm	141 lm/W
80W	L-E-XT-282-930-80	3000K	90	11,430 lm	147 lm/W
80W	L-E-XT-282-940-80	4000K	90	11,930 lm	153 lm/W
88W	L-E-XT-310-927-88	2700K	90	12,474 lm	141 lm/W
88W	L-E-XT-310-930-88	3000K	90	12,573 lm	147 lm/W
88W	L-E-XT-310-940-88	4000K	90	13,123 lm	153 lm/W
96W	L-E-XT-340-927-96	2700K	90	13,608 lm	141 lm/W
96W	L-E-XT-340-930-96	3000K	90	13,716 lm	147 lm/W
96W	L-E-XT-340-940-96	4000K	90	14,316 lm	153 lm/W
108W	L-E-XT-365-927-108	2700K	90	14,742 lm	141 lm/W
108W	L-E-XT-365-930-108	3000K	90	14,859 lm	147 lm/W
108W	L-E-XT-365-940-108	4000K	90	15,509 lm	153 lm/W
116W	L-E-XT-395-927-116	2700K	90	15,876 lm	141 lm/W
116W	L-E-XT-395-930-116	3000K	90	16,002 lm	147 lm/W
116W	L-E-XT-395-940-116	4000K	90	16,702 lm	153 lm/W
124W	L-E-XT-420-927-124	2700K	90	17,010 lm	141 lm/W
124W	L-E-XT-420-930-124	3000K	90	17,145 lm	147 lm/W
124W	L-E-XT-420-940-124	4000K	90	17,895 lm	153 lm/W
132W	L-E-XT-450-927-132	2700K	90	18,144 lm	141 lm/W
132W	L-E-XT-450-930-132	3000K	90	18,288 lm	147 lm/W
132W	L-E-XT-450-940-132	4000K	90	19,088 lm	153 lm/W
140W	L-E-XT-480-927-140	2700K	90	19,278 lm	141 lm/W
140W	L-E-XT-480-930-140	3000K	90	19,431 lm	147 lm/W
140W	L-E-XT-480-940-140	4000K	90	20,281 lm	153 lm/W
