L-E-SPX Linear LED

Efficacy

156-165 lm/W

CRI

IP44

Warranty

5 years

The L-E-SPX linear LED luminaires offer exceptional versatility, available in a wide range of lengths to meet every interior lighting requirement seamlessly.

Made of aluminium and finished with electrostatic powder coating in any RAL colour, these fixtures ensure efficient thermal management and long LED lifetime.

They are extremely powerful, delivering luminous flux up to 45 780 lm.

They can be suspended or trimless recessed into suspended ceilings. Available with a micro-prismatic diffuser for glare-free lighting or optional opal diffuser for uniform light distribution.

5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 2877 - 45780 lm

Power 18 - 277W

Ambient Temperature -30°C to +50°C

Efficacy 156 - 165 lm/W

Power Factor 0.95

CRI 80

CCT 3000K-6500K

IP Rating IP44

IK Rating IK09

Body Aluminium

Finishing Powder coating - RAL selection

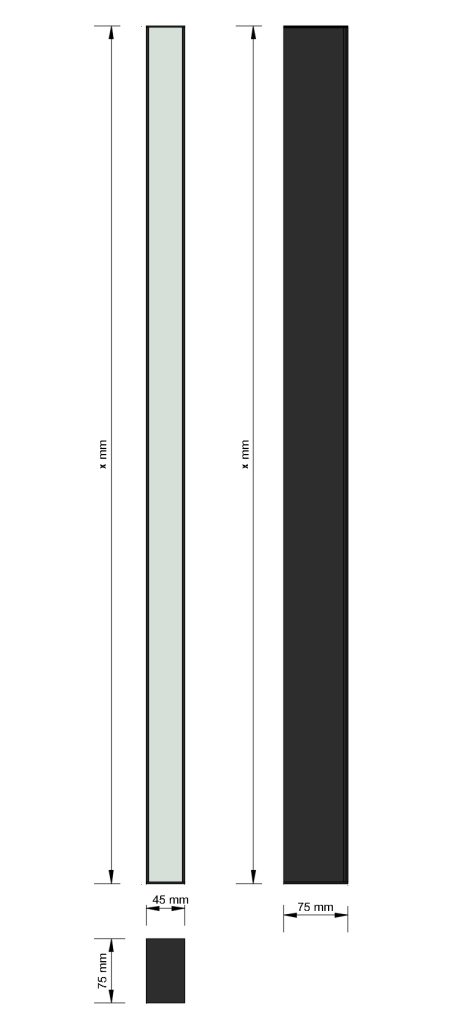

Dimensions 45mm x 75mm x (300 - 4250)mm

Weight 1.2 - 8.6 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
18W	L-E-SPX-30-830-18	3000	80	2,877 lm	160 lm/W
18W	L-E-SPX-30-840-18	4000	80	3,052 lm	170 lm/W
18W	L-E-SPX-30-850-18	5000	80	3,032 lm	168 lm/W
18W	L-E-SPX-30-865-18	6500	80	2,992 lm	166 lm/W
37W	L-E-SPX-60-830-37	3000	80	5,754 lm	156 lm/W
37W	L-E-SPX-60-840-37	4000	80	6,104 lm	165 lm/W
37W	L-E-SPX-60-850-37	5000	80	6,064 lm	164 lm/W
37W	L-E-SPX-60-865-37	6500	80	5,984 lm	162 lm/W
56W	L-E-SPX-85-830-56	3000	80	8,631 lm	154 lm/W
56W	L-E-SPX-85-840-56	4000	80	9,156 lm	164 lm/W
56W	L-E-SPX-85-850-56	5000	80	9,096 lm	162 lm/W
56W	L-E-SPX-85-865-56	6500	80	8,976 lm	160 lm/W
75W	L-E-SPX-115-830-75	3000	80	11,508 lm	153 lm/W
75W	L-E-SPX-115-840-75	4000	80	12,208 lm	163 lm/W
75W	L-E-SPX-115-850-75	5000	80	12,128 lm	162 lm/W
75W	L-E-SPX-115-865-75	6500	80	11,968 lm	160 lm/W
93W	L-E-SPX-142-830-93	3000	80	14,385 lm	155 lm/W
93W	L-E-SPX-142-840-93	4000	80	15,260 lm	164 lm/W
93W	L-E-SPX-142-850-93	5000	80	15,160 lm	163 lm/W
93W	L-E-SPX-142-865-93	6500	80	14,960 lm	161 lm/W
111W	L-E-SPX-170-830-111	3000	80	17,262 lm	156 lm/W
111W	L-E-SPX-170-840-111	4000	80	18,312 lm	165 lm/W
111W	L-E-SPX-170-850-111	5000	80	18,192 lm	164 lm/W
111W	L-E-SPX-170-865-111	6500	80	17,952 lm	162 lm/W
130W	L-E-SPX-200-830-130	3000	80	20,139 lm	155 lm/W
130W	L-E-SPX-200-840-130	4000	80	21,364 lm	164 lm/W
130W	L-E-SPX-200-850-130	5000	80	21,224 lm	163 lm/W
130W	L-E-SPX-200-865-130	6500	80	20,944 lm	161 lm/W
148W	L-E-SPX-225-830-148	3000	80	23,016 lm	156 lm/W
148W	L-E-SPX-225-840-148	4000	80	24,416 lm	165 lm/W
148W	L-E-SPX-225-850-148	5000	80	24,256 lm	164 lm/W
148W	L-E-SPX-225-865-148	6500	80	23,936 lm	162 lm/W
167W	L-E-SPX-255-830-167	3000	80	25,893 lm	155 lm/W
167W	L-E-SPX-255-840-167	4000	80	27,468 lm	164 lm/W
167W	L-E-SPX-255-850-167	5000	80	27,288 lm	163 lm/W
167W	L-E-SPX-255-865-167	6500	80	26,928 lm	161 lm/W
185W	L-E-SPX-282-830-185	3000	80	28,770 lm	156 lm/W
185W	L-E-SPX-282-840-185	4000	80	30,520 lm	165 lm/W
185W	L-E-SPX-282-850-185	5000	80	30,320 lm	164 lm/W
185W	L-E-SPX-282-865-185	6500	80	29,920 lm	162 lm/W
202W	L-E-SPX-310-830-202	3000	80	31,647 lm	157 lm/W
202W	L-E-SPX-310-840-202	4000	80	33,572 lm	166 lm/W
202W	L-E-SPX-310-850-202	5000	80	33,352 lm	165 lm/W
202W	L-E-SPX-310-865-202	6500	80	32,912 lm	163 lm/W
222W	L-E-SPX-340-830-222	3000	80	34,524 lm	156 lm/W
222W	L-E-SPX-340-840-222	4000	80	36,624 lm	165 lm/W
222W	L-E-SPX-340-850-222	5000	80	36,384 lm	164 lm/W
222W	L-E-SPX-340-865-222	6500	80	35,904 lm	162 lm/W
240W	L-E-SPX-365-830-240	3000	80	37,401 lm	156 lm/W
240W	L-E-SPX-365-840-240	4000	80	39,676 lm	165 lm/W
240W	L-E-SPX-365-850-240	5000	80	39,416 lm	164 lm/W
240W	L-E-SPX-365-865-240	6500	80	38,896 lm	162 lm/W
259W	L-E-SPX-395-830-259	3000	80	40,278 lm	156 lm/W
259W	L-E-SPX-395-840-259	4000	80	42,728 lm	165 lm/W
259W	L-E-SPX-395-850-259	5000	80	42,448 lm	164 lm/W
259W	L-E-SPX-395-865-259	6500	80	41,888 lm	162 lm/W
277W	L-E-SPX-425-830-277	3000	80	43,155 lm	156 lm/W
277W	L-E-SPX-425-840-277	4000	80	45,780 lm	165 lm/W
277W	L-E-SPX-425-850-277	5000	80	45,480 lm	164 lm/W
277W	L-E-SPX-425-865-277	6500	80	44,880 lm	162 lm/W
