TETRA-100 Low glare LED fixture

Efficacy

85-181 lm/W

CRI

80-90

IP43

Warranty

5 years

Techlumen TETRA-100 LED led fixture offers high efficiency lighting.
It has a square shape, is made of aluminum and is available in a wide variety of electrostatic powder coating colors.

It is produced in versions ranging from 2700K to 5000K, with a CRI index up to 97.

It has low consumption and high efficiency.

It is also produced in DIM to WARM versions, with a CCT varying from 1800K to 3000K.

TETRA-100 has LM80 > 70000h index and 5 years warranty.

Datasheet

Installation Manual

Photometric files

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 750 - 3250 lm

Power 6 - 18W

Ambient Temperature -30°C to +40°C

Efficacy 85 - 181 lm/W

Power Factor 0.95

CRI 80-90

CCT 2700K-5000K

IP Rating IP43

IK Rating IK08

Body Aluminium

Finishing Any RAL

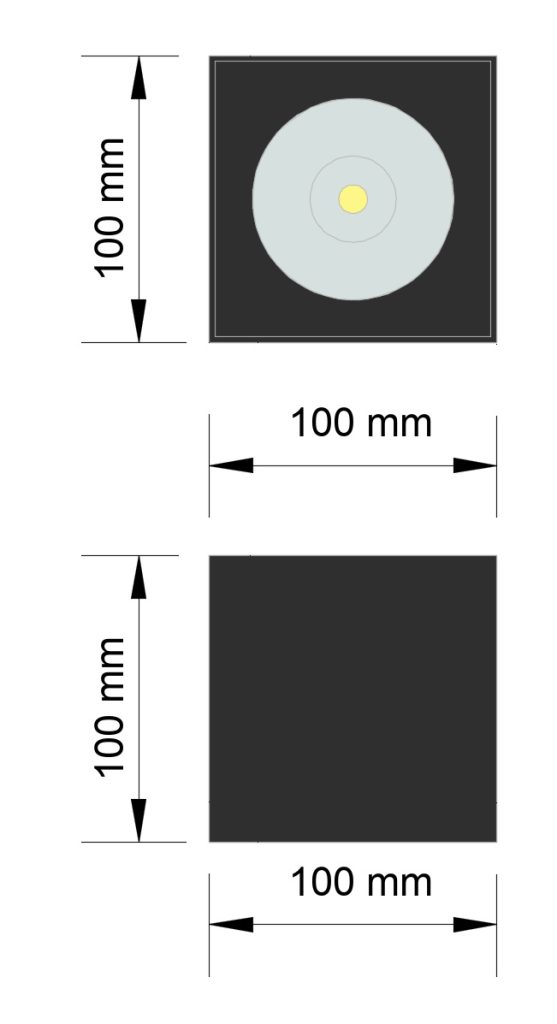

Dimensions 100x100x (100 / 140)mm

Weight 1.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	TETRA-100-827-6	2700K	80	951 lm	159 lm/W
6W	TETRA-100-830-6	3000K	80	970 lm	162 lm/W
6W	TETRA-100-835-6	3500K	80	975 lm	163 lm/W
6W	TETRA-100-840-6	4000K	80	980 lm	163 lm/W
6W	TETRA-100-850-6	5000K	80	960 lm	160 lm/W
6W	TETRA-100-927-6	2700K	90	860 lm	143 lm/W
6W	TETRA-100-930-6	3000K	90	875 lm	146 lm/W
6W	TETRA-100-935-6	3500K	90	880 lm	147 lm/W
6W	TETRA-100-940-6	4000K	90	890 lm	148 lm/W
6W	TETRA-100-950-6	5000K	90	870 lm	145 lm/W
9W	TETRA-100-827-9	2700K	80	1,560 lm	173 lm/W
9W	TETRA-100-830-9	3000K	80	1,590 lm	177 lm/W
9W	TETRA-100-835-9	3500K	80	1,600 lm	178 lm/W
9W	TETRA-100-840-9	4000K	80	1,610 lm	179 lm/W
9W	TETRA-100-850-9	5000K	80	1,580 lm	176 lm/W
9W	TETRA-100-927-9	2700K	90	1,440 lm	160 lm/W
9W	TETRA-100-930-9	3000K	90	1,470 lm	163 lm/W
9W	TETRA-100-935-9	3500K	90	1,490 lm	166 lm/W
9W	TETRA-100-940-9	4000K	90	1,510 lm	168 lm/W
9W	TETRA-100-950-9	5000K	90	1,460 lm	162 lm/W
13W	TETRA-100-827-13	2700K	80	2,145 lm	165 lm/W
13W	TETRA-100-830-13	3000K	80	2,190 lm	168 lm/W
13W	TETRA-100-835-13	3500K	80	2,200 lm	169 lm/W
13W	TETRA-100-840-13	4000K	80	2,210 lm	170 lm/W
13W	TETRA-100-850-13	5000K	80	2,170 lm	167 lm/W
13W	TETRA-100-927-13	2700K	90	1,960 lm	151 lm/W
13W	TETRA-100-930-13	3000K	90	2,000 lm	154 lm/W
13W	TETRA-100-935-13	3500K	90	2,020 lm	155 lm/W
13W	TETRA-100-940-13	4000K	90	2,040 lm	157 lm/W
13W	TETRA-100-950-13	5000K	90	1,980 lm	152 lm/W
18W	TETRA-100-827-18	2700K	80	3,150 lm	175 lm/W
18W	TETRA-100-830-18	3000K	80	3,220 lm	179 lm/W
18W	TETRA-100-835-18	3500K	80	3,230 lm	179 lm/W
18W	TETRA-100-840-18	4000K	80	3,250 lm	181 lm/W
18W	TETRA-100-850-18	5000K	80	3,190 lm	177 lm/W
18W	TETRA-100-927-18	2700K	90	2,950 lm	164 lm/W
18W	TETRA-100-930-18	3000K	90	3,000 lm	167 lm/W
18W	TETRA-100-935-18	3500K	90	3,030 lm	168 lm/W
18W	TETRA-100-940-18	4000K	90	3,060 lm	170 lm/W
18W	TETRA-100-950-18	5000K	90	2,980 lm	166 lm/W
9W	TETRA-100-e-927-9	2700K	90	750 lm	85 lm/W
9W	TETRA-100-e-930-9	3000K	90	850 lm	97 lm/W
9W	TETRA-100-e-940-9	4000K	90	900 lm	103 lm/W
12W	TETRA-100-e-927-12	2700K	90	1,150 lm	96 lm/W
12W	TETRA-100-e-930-12	3000K	90	1,180 lm	98 lm/W
12W	TETRA-100-e-940-12	4000K	90	1,280 lm	107 lm/W
