LED ceiling panel e-STELLAR

Efficacy

131-176 lm/W

CRI

IP43

Warranty

5 years

The TECHLUMEN e-STELLAR 60 × 60 cm LED panels deliver powerful illumination with minimal consumption, achieving efficacy up to 185 lm/W.

The base 22.6 W version outperforms conventional 4×18 W fluorescent systems, offering excellent energy savings. High-output versions 34 W and 47.6 W reach up to 8,520 lm, suitable for high-ceiling spaces to reduce the number of fixtures.

Aluminium body with high-transmittance, durable PMMA diffuser. Powder-coated in any RAL colour. Lifetime rating L80 > 70,000 h and a 5-year warranty.

Applications:
Offices · Meeting rooms · Educational spaces · Healthcare · Retail · Residential interiors

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 3916 - 8520 lm

Power 24 - 75W

Ambient Temperature -30°C to +40°C

Efficacy 131 - 176 lm/W

Power Factor 0.95

CRI 80

CCT 3000K-5000K

IP Rating IP43

IK Rating IK06

Body Alluminium - galvanized steel

Finishing Powder Coating - RAL selection

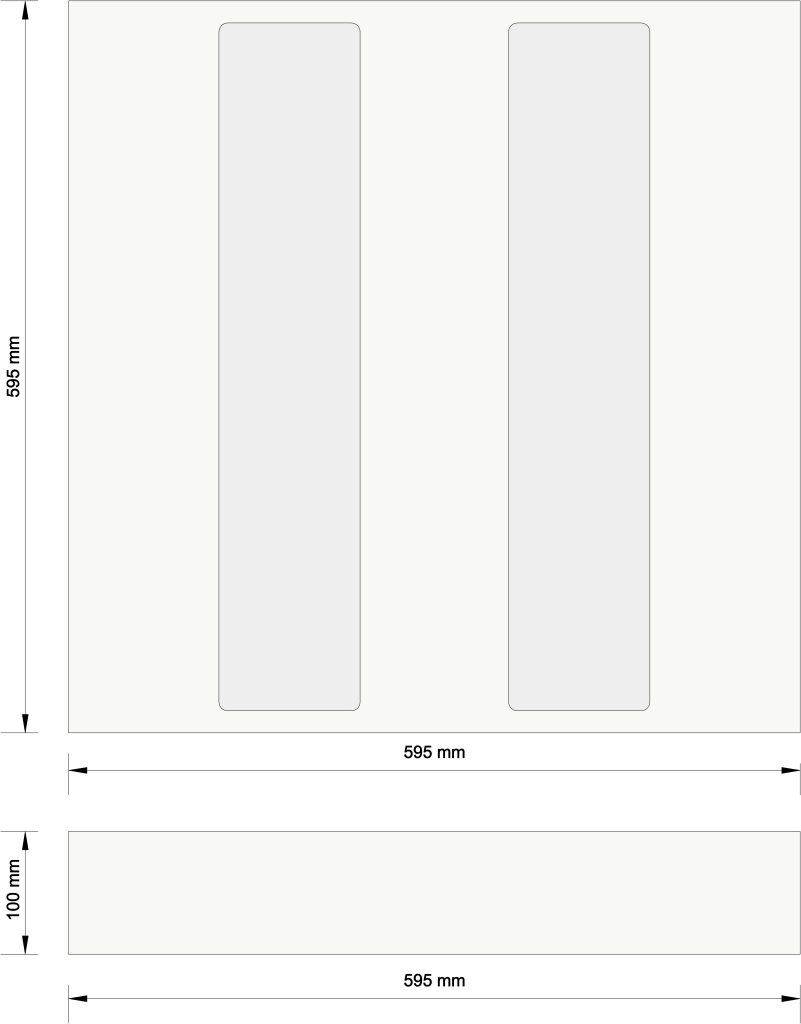

Dimensions 595mm X 595mm X 100mm

Weight 6.4 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
2480W	e-STELLAR-T-827-24	2700K	80	3,900 lm	163 lm/W
2480W	e-STELLAR-T-830-24	3000K	80	3,992 lm	166 lm/W
2480W	e-STELLAR-T-835-24	3500K	80	4,128 lm	172 lm/W
2480W	e-STELLAR-T-840-24	4000K	80	4,232 lm	176 lm/W
2480W	e-STELLAR-T-850-24	5000K	80	4,204 lm	175 lm/W
2480W	e-STELLAR-T-865-24	6500K	80	4,148 lm	173 lm/W
5080W	e-STELLAR-TX-827-50	2700K	80	7,708 lm	148 lm/W
5080W	e-STELLAR-TX-830-50	3000K	80	7,884 lm	152 lm/W
5080W	e-STELLAR-TX-835-50	3500K	80	8,156 lm	157 lm/W
5080W	e-STELLAR-TX-840-50	4000K	80	8,364 lm	161 lm/W
5080W	e-STELLAR-TX-850-50	5000K	80	8,312 lm	160 lm/W
5080W	e-STELLAR-TX-865-50	6500K	80	8,196 lm	158 lm/W
5180W	e-STELLAR-SP-830-51	3000K	80	8,288 lm	163 lm/W
5180W	e-STELLAR-SP-840-51	4000K	80	8,792 lm	172 lm/W
5180W	e-STELLAR-SP-850-51	5000K	80	8,736 lm	171 lm/W
5180W	e-STELLAR-SP-865-51	6500K	80	8,620 lm	169 lm/W
7580W	e-STELLAR-SPX-830-75	3000K	80	11,508 lm	153 lm/W
7580W	e-STELLAR-SPX-840-75	4000K	80	12,208 lm	163 lm/W
7580W	e-STELLAR-SPX-850-75	5000K	80	12,128 lm	162 lm/W
7580W	e-STELLAR-SPX-865-75	6500K	80	11,968 lm	160 lm/W
3490W	e-STELLAR-XT-927-34	2700K	90	4,712 lm	139 lm/W
3490W	e-STELLAR-XT-930-34	3000K	90	4,864 lm	143 lm/W
3490W	e-STELLAR-XT-935-34	3500K	90	4,992 lm	147 lm/W
3490W	e-STELLAR-XT-940-34	4000K	90	5,048 lm	148 lm/W
5090W	e-STELLAR-XTH-927-50	2700K	90	6,552 lm	131 lm/W
5090W	e-STELLAR-XTH-930-50	3000K	90	6,752 lm	135 lm/W
5090W	e-STELLAR-XTH-935-50	3500K	90	6,928 lm	139 lm/W
5090W	e-STELLAR-XTH-940-50	4000K	90	7,008 lm	140 lm/W
7590W	e-STELLAR-XTS-930-75	3000K	90	9,848 lm	131 lm/W
7590W	e-STELLAR-XTS-940-75	4000K	90	10,236 lm	136 lm/W
