LED canopy light LCP

Efficacy

157-193 lm/W

CRI

70-80

IP66

Warranty

5 years

LED canopy luminaire Techlumen© LCP is a simple, reliable and highly efficient proposal for lighting canopies. The installation on existing canopies is extremely easy, as the external dimensions are adjusted according to requirements.

The minimum size of each side is only 26cm and can build up to 60cm. Moreover, it has low height, only 8.5 cm. It is produced in versions of up to 200W, with maximum performance of 36300 lm and 193 lm/W.

Compared to conventional canopy lighting, LCP offers energy savings greater than 80%.
The LED chip has a 10 year factory warranty and lumen maintenance factor L80> 70000h (brightness preservation in 80% of the original, after 70000h function). The lumianaire has 5 years warranty.

Luminaire Brochure

Installation manual

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 6570 - 36300 lm

Power 34 - 200W

Ambient Temperature -30°C to +50°C

Efficacy 157 - 193 lm/W

Power Factor 0.95

CRI 70-80

CCT 4000K-6500K

IP Rating IP66

Body Aluminium

Finishing Powder coating - Ral selection

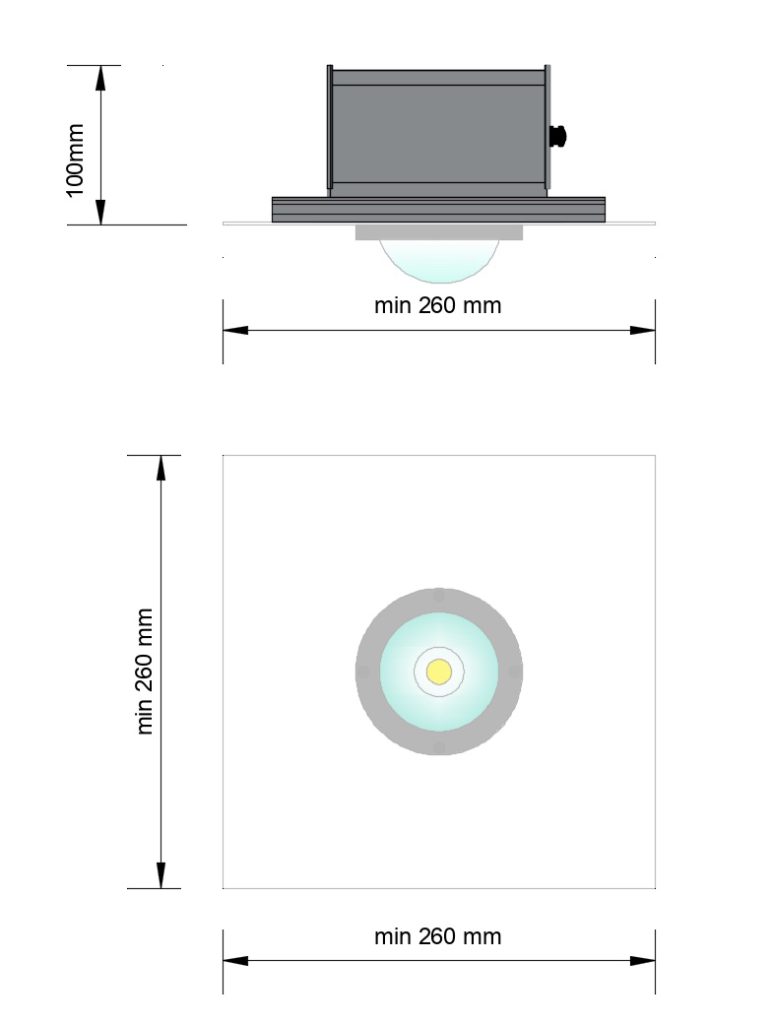

Dimensions 260 x 260 x 85 mm - adjustable to current dimensions / 125W version - min 360 x 360 x 85mm

Weight 4.3 - 8.3 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2021+A11:2022 ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
34W	LCP-840-34	4000KK	80	6,570 lm	193 lm/W
34W	LCP-750-34	5000KK	70	5,990 lm	176 lm/W
34W	LCP-850-34	5000KK	80	6,440 lm	189 lm/W
34W	LCP-757-34	5700KK	70	5,830 lm	171 lm/W
34W	LCP-765-34	6500KK	70	5,830 lm	171 lm/W
40W	LCP-840-42	4000KK	80	7,670 lm	183 lm/W
40W	LCP-750-42	5000KK	70	6,920 lm	165 lm/W
40W	LCP-850-42	5000KK	80	7,520 lm	179 lm/W
40W	LCP-757-42	5700KK	70	6,730 lm	160 lm/W
40W	LCP-765-42	6500KK	70	6,730 lm	160 lm/W
50W	LCP-840-50	4000KK	80	9,000 lm	180 lm/W
50W	LCP-750-50	5000KK	70	8,100 lm	162 lm/W
50W	LCP-850-50	5000KK	80	8,830 lm	177 lm/W
50W	LCP-757-50	5700KK	70	7,850 lm	157 lm/W
50W	LCP-765-50	6500KK	70	7,850 lm	157 lm/W
60W	LCP-840-60	4000KK	80	10,380 lm	173 lm/W
60W	LCP-750-60	5000KK	70	10,310 lm	172 lm/W
60W	LCP-850-60	5000KK	80	10,150 lm	169 lm/W
60W	LCP-757-60	5700KK	70	10,025 lm	167 lm/W
60W	LCP-765-60	6500KK	70	10,025 lm	167 lm/W
80W	LCP-840-80	4000KK	80	13,560 lm	170 lm/W
80W	LCP-750-80	5000KK	70	13,580 lm	170 lm/W
80W	LCP-850-80	5000KK	80	13,300 lm	166 lm/W
80W	LCP-757-80	5700KK	70	13,200 lm	165 lm/W
80W	LCP-765-80	6500KK	70	13,200 lm	165 lm/W
86W	LCP-840-86	4000KK	80	14,450 lm	168 lm/W
86W	LCP-750-86	5000KK	70	14,500 lm	169 lm/W
86W	LCP-850-86	5000KK	80	14,170 lm	165 lm/W
86W	LCP-757-86	5700KK	70	14,110 lm	164 lm/W
86W	LCP-765-86	6500KK	70	14,110 lm	164 lm/W
100W	LCP-840-100	4000KK	80	17,260 lm	173 lm/W
100W	LCP-750-100	5000KK	70	18,150 lm	182 lm/W
100W	LCP-850-100	5000KK	80	17,460 lm	175 lm/W
100W	LCP-757-100	5700KK	70	17,650 lm	177 lm/W
100W	LCP-765-100	6500KK	70	17,650 lm	177 lm/W
110W	LCP-840-110	4000KK	80	18,400 lm	167 lm/W
110W	LCP-750-110	5000KK	70	19,350 lm	176 lm/W
110W	LCP-850-110	5000KK	80	18,600 lm	169 lm/W
110W	LCP-757-110	5700KK	70	18,850 lm	171 lm/W
110W	LCP-765-110	6500KK	70	18,850 lm	171 lm/W
125W	LCP-840-125	4000KK	80	20,700 lm	166 lm/W
125W	LCP-750-125	5000KK	70	21,800 lm	174 lm/W
125W	LCP-850-125	5000KK	80	20,990 lm	168 lm/W
125W	LCP-757-125	5700KK	70	21,200 lm	170 lm/W
125W	LCP-765-125	6500KK	70	21,200 lm	170 lm/W
150W	LCP-840-125	4000KK	80	23,600 lm	157 lm/W
150W	LCP-750-150	5000KK	70	24,800 lm	165 lm/W
150W	LCP-850-150	5000KK	80	23,800 lm	159 lm/W
150W	LCP-757-150	5700KK	70	24,100 lm	161 lm/W
150W	LCP-765-150	6500KK	70	24,100 lm	161 lm/W
160W	LCP-840-160	4000KK	80	27,120 lm	170 lm/W
160W	LCP-750-160	5000KK	70	27,160 lm	170 lm/W
160W	LCP-850-160	5000KK	80	26,600 lm	166 lm/W
160W	LCP-757-160	5700KK	70	26,400 lm	165 lm/W
160W	LCP-765-160	6500KK	70	26,400 lm	165 lm/W
172W	LCP-840-172	4000KK	80	28,900 lm	168 lm/W
172W	LCP-750-172	5000KK	70	29,000 lm	169 lm/W
172W	LCP-850-172	5000KK	80	28,340 lm	165 lm/W
172W	LCP-757-172	5700KK	70	28,220 lm	164 lm/W
172W	LCP-765-172	6500KK	70	28,220 lm	164 lm/W
200W	LCP-840-200	4000KK	80	34,520 lm	173 lm/W
200W	LCP-750-200	5000KK	70	36,300 lm	182 lm/W
200W	LCP-850-200	5000KK	80	34,920 lm	175 lm/W
200W	LCP-757-200	5700KK	70	35,300 lm	177 lm/W
200W	LCP-765-200	6500KK	70	35,300 lm	177 lm/W
