CABANA Industrial LED

Efficacy

137-193 lm/W

CRI

65-90

IP66

Warranty

5 years

CABANA series industrial LED fixtures deliver powerful, economical and reliable lighting.
They are lightweight and made of aluminum.
They are IP rated, durable and suitable to be installed even in harsh environments.
CABANA LED are an excellent solution for industrial or warehouse lighting.
Moreover, they have minimal heat emission, they are unbreakable and they do not emit UV or IR rays making them an excellent lighting solution for food preparation areas or other sensitive products areas.
CABANA series luminaires have high luminous efficiency, which reaches the 36300 lm and efficacy of 193 lm/W.
They have a wide selection of beam angles (45^o – 120^o, the optics are made of heavy duty borosilicate glass or extremely durable silicone.
The core is the LED-chip Bridgelux USA, Vero series with LM80 rating > 105.000 hours.
CABANA series have 5-year warranty (optional 8 year), and the LED chip has 10-year warranty.

Luminaire Brochure

Installation manual

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 5270 - 36300 lm

Power 34 - 200W

Ambient Temperature -30°C to +50°C

Efficacy 137 - 193 lm/W

Power Factor 0.95

CRI 65-90

CCT 2700K-6500K

IP Rating IP66

IK Rating IK10

Body Aluminium

Finishing Any RAL

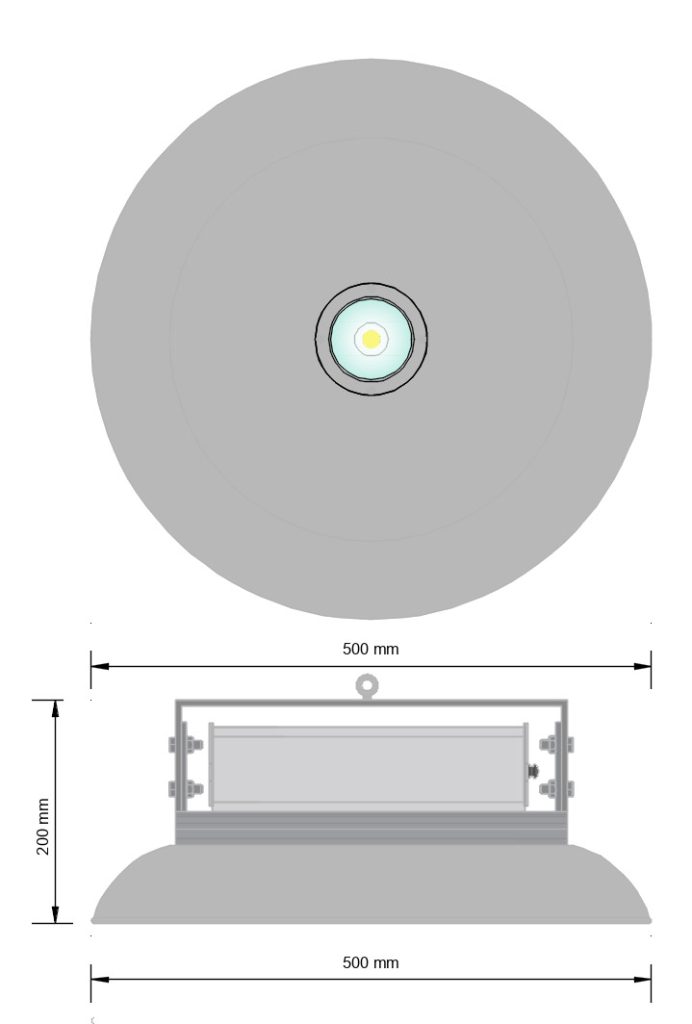

Dimensions Φ500mm X 172mm

Weight 5.7 - 9.8 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
34W	CABANA-620-34	2000K	65	5,640 lm	166 lm/W
34W	CABANA-827-34	2700K	80	6,370 lm	187 lm/W
34W	CABANA-830-34	3000K	80	6,500 lm	191 lm/W
34W	CABANA-835-34	3500K	80	6,550 lm	193 lm/W
34W	CABANA-840-34	4000K	80	6,570 lm	193 lm/W
34W	CABANA-750-34	5000K	70	5,990 lm	176 lm/W
34W	CABANA-850-34	5000K	80	6,440 lm	189 lm/W
34W	CABANA-757-34	5700K	70	5,830 lm	171 lm/W
34W	CABANA-765-34	6500K	70	5,830 lm	171 lm/W
34W	CABANA-927-34	2700K	90	5,270 lm	155 lm/W
34W	CABANA-930-34	3000K	90	5,380 lm	158 lm/W
34W	CABANA-935-34	3500K	90	5,430 lm	160 lm/W
34W	CABANA-940-34	4000K	90	5,480 lm	161 lm/W
34W	CABANA-950-34	5000K	90	5,325 lm	157 lm/W
42W	CABANA-620-42	2000K	65	6,760 lm	161 lm/W
42W	CABANA-827-42	2700K	80	7,400 lm	176 lm/W
42W	CABANA-830-42	3000K	80	7,520 lm	179 lm/W
42W	CABANA-835-42	3500K	80	7,650 lm	182 lm/W
42W	CABANA-840-42	4000K	80	7,670 lm	183 lm/W
42W	CABANA-750-42	5000K	70	6,920 lm	165 lm/W
42W	CABANA-850-42	5000K	80	7,520 lm	179 lm/W
42W	CABANA-757-42	5700K	70	6,730 lm	160 lm/W
42W	CABANA-765-42	6500K	70	6,730 lm	160 lm/W
42W	CABANA-927-42	2700K	90	6,040 lm	151 lm/W
42W	CABANA-930-42	3000K	90	6,170 lm	154 lm/W
42W	CABANA-935-42	3500K	90	6,230 lm	156 lm/W
42W	CABANA-940-42	4000K	90	6,290 lm	157 lm/W
42W	CABANA-950-42	5000K	90	6,100 lm	153 lm/W
50W	CABANA-620-50	2000K	65	7,920 lm	158 lm/W
50W	CABANA-827-50	2700K	80	8,750 lm	175 lm/W
50W	CABANA-830-50	3000K	80	8,900 lm	178 lm/W
50W	CABANA-835-50	3500K	80	8,960 lm	179 lm/W
50W	CABANA-840-50	4000K	80	9,000 lm	180 lm/W
50W	CABANA-750-50	5000K	70	8,100 lm	162 lm/W
50W	CABANA-850-50	5000K	80	8,830 lm	177 lm/W
50W	CABANA-757-50	5700K	70	7,850 lm	157 lm/W
50W	CABANA-765-50	6500K	70	7,850 lm	157 lm/W
50W	CABANA-927-50	2700K	90	7,260 lm	145 lm/W
50W	CABANA-930-50	3000K	90	7,400 lm	148 lm/W
50W	CABANA-935-50	3500K	90	7,480 lm	150 lm/W
50W	CABANA-940-50	4000K	90	7,560 lm	151 lm/W
50W	CABANA-950-50	5000K	90	7,330 lm	147 lm/W
60W	CABANA-620-60	2000K	65	9,240 lm	154 lm/W
60W	CABANA-827-60	2700K	80	10,060 lm	168 lm/W
60W	CABANA-830-60	3000K	80	10,250 lm	171 lm/W
60W	CABANA-835-60	3500K	80	10,300 lm	172 lm/W
60W	CABANA-840-60	4000K	80	10,380 lm	173 lm/W
60W	CABANA-750-60	5000K	70	10,310 lm	172 lm/W
60W	CABANA-850-60	5000K	80	10,150 lm	169 lm/W
60W	CABANA-757-60	5700K	70	10,025 lm	167 lm/W
60W	CABANA-765-60	6500K	70	10,025 lm	167 lm/W
80W	CABANA-620-80	2000K	65	12,150 lm	152 lm/W
80W	CABANA-827-80	2700K	80	13,100 lm	164 lm/W
80W	CABANA-830-80	3000K	80	13,400 lm	168 lm/W
80W	CABANA-835-80	3500K	80	13,500 lm	169 lm/W
80W	CABANA-840-80	4000K	80	13,560 lm	170 lm/W
80W	CABANA-750-80	5000K	70	13,580 lm	170 lm/W
80W	CABANA-850-80	5000K	80	13,300 lm	166 lm/W
80W	CABANA-757-80	5700K	70	13,200 lm	165 lm/W
80W	CABANA-765-80	6500K	70	13,200 lm	165 lm/W
86W	CABANA-620-86	2000K	65	12,950 lm	151 lm/W
86W	CABANA-827-86	2700K	80	14,000 lm	163 lm/W
86W	CABANA-830-86	3000K	80	14,300 lm	166 lm/W
86W	CABANA-835-86	3500K	80	14,350 lm	167 lm/W
86W	CABANA-840-86	4000K	80	14,450 lm	168 lm/W
86W	CABANA-750-86	5000K	70	14,500 lm	169 lm/W
86W	CABANA-850-86	5000K	80	14,170 lm	165 lm/W
86W	CABANA-757-86	5700K	70	14,110 lm	164 lm/W
86W	CABANA-765-86	6500K	70	14,110 lm	164 lm/W
100W	CABANA-620-100	2000K	65	15,020 lm	150 lm/W
100W	CABANA-827-100	2700K	80	15,780 lm	158 lm/W
100W	CABANA-830-100	3000K	80	16,760 lm	168 lm/W
100W	CABANA-835-100	3500K	80	17,160 lm	172 lm/W
100W	CABANA-840-100	4000K	80	17,260 lm	173 lm/W
100W	CABANA-750-100	5000K	70	18,150 lm	182 lm/W
100W	CABANA-850-100	5000K	80	17,460 lm	175 lm/W
100W	CABANA-757-100	5700K	70	17,650 lm	177 lm/W
100W	CABANA-765-100	6500K	70	17,650 lm	177 lm/W
110W	CABANA-620-110	2000K	65	16,200 lm	148 lm/W
110W	CABANA-827-110	2700K	80	16,850 lm	153 lm/W
110W	CABANA-830-110	3000K	80	17,900 lm	163 lm/W
110W	CABANA-835-110	3500K	80	18,300 lm	166 lm/W
110W	CABANA-840-110	4000K	80	18,400 lm	167 lm/W
110W	CABANA-750-110	5000K	70	19,350 lm	176 lm/W
110W	CABANA-850-110	5000K	80	18,600 lm	169 lm/W
110W	CABANA-757-110	5700K	70	18,850 lm	171 lm/W
110W	CABANA-765-110	6500K	70	18,850 lm	171 lm/W
125W	CABANA-620-125	2000K	65	18,200 lm	145 lm/W
125W	CABANA-827-125	2700K	80	18,970 lm	152 lm/W
125W	CABANA-830-125	3000K	80	20,160 lm	161 lm/W
125W	CABANA-835-125	3500K	80	20,600 lm	165 lm/W
125W	CABANA-840-125	4000K	80	20,700 lm	166 lm/W
125W	CABANA-750-125	5000K	70	21,800 lm	174 lm/W
125W	CABANA-850-125	5000K	80	20,990 lm	168 lm/W
125W	CABANA-757-125	5700K	70	21,200 lm	170 lm/W
125W	CABANA-765-125	6500K	70	21,200 lm	170 lm/W
150W	CABANA-620-150	2000K	65	20,500 lm	137 lm/W
150W	CABANA-827-150	2700K	80	21,580 lm	144 lm/W
150W	CABANA-830-150	3000K	80	22,930 lm	153 lm/W
150W	CABANA-835-150	3500K	80	23,400 lm	156 lm/W
150W	CABANA-840-150	4000K	80	23,600 lm	157 lm/W
150W	CABANA-750-150	5000K	70	24,800 lm	165 lm/W
150W	CABANA-850-150	5000K	80	23,800 lm	159 lm/W
150W	CABANA-757-150	5700K	70	24,100 lm	161 lm/W
150W	CABANA-765-150	6500K	70	24,100 lm	161 lm/W
160W	CABANA-620-160	2000K	65	24,300 lm	152 lm/W
160W	CABANA-827-160	2700K	80	26,200 lm	164 lm/W
160W	CABANA-830-160	3000K	80	26,800 lm	168 lm/W
160W	CABANA-835-160	3500K	80	27,000 lm	169 lm/W
160W	CABANA-840-160	4000K	80	27,120 lm	170 lm/W
160W	CABANA-750-160	5000K	70	27,160 lm	170 lm/W
160W	CABANA-850-160	5000K	80	26,600 lm	166 lm/W
160W	CABANA-757-160	5700K	70	26,400 lm	165 lm/W
160W	CABANA-765-160	6500K	70	26,400 lm	165 lm/W
172W	CABANA-620-172	2000K	65	25,900 lm	151 lm/W
172W	CABANA-827-172	2700K	80	28,000 lm	163 lm/W
172W	CABANA-830-172	3000K	80	28,600 lm	166 lm/W
172W	CABANA-835-172	3500K	80	28,700 lm	167 lm/W
172W	CABANA-840-172	4000K	80	28,900 lm	168 lm/W
172W	CABANA-750-172	5000K	70	29,000 lm	169 lm/W
172W	CABANA-850-172	5000K	80	28,340 lm	165 lm/W
172W	CABANA-757-172	5700K	70	28,220 lm	164 lm/W
172W	CABANA-765-172	6500K	70	28,220 lm	164 lm/W
200W	CABANA-620-200	2000K	65	30,040 lm	150 lm/W
200W	CABANA-827-200	2700K	80	31,560 lm	158 lm/W
200W	CABANA-830-200	3000K	80	33,520 lm	168 lm/W
200W	CABANA-835-200	3500K	80	34,320 lm	172 lm/W
200W	CABANA-840-200	4000K	80	34,520 lm	173 lm/W
200W	CABANA-750-200	5000K	70	36,300 lm	182 lm/W
200W	CABANA-850-200	5000K	80	34,920 lm	175 lm/W
200W	CABANA-757-200	5700K	70	35,300 lm	177 lm/W
200W	CABANA-765-200	6500K	70	35,300 lm	177 lm/W
