IG-L-45 IP67 LED spot

Efficacy

107-163 lm/W

CRI

80-90

IP67

Warranty

5 years

Techlumen© IG-L-45 LED recessed spots provide high-quality, energy-efficient lighting.

They are produced in 3W and 6W versions, with a CCT range of 2700K–5000K.

They can be installed in wooden decks, canopies, or high-humidity interior spaces such as bathrooms or spa areas.

Made of aluminium, IG-L-45 fixtures feature an IP67 waterproof rating and IK10 impact resistance, ensuring reliability and durability even in demanding environments.

They combine elegance with robustness — a perfect choice for modern outdoor and indoor applications.

Applications:
Deck lighting · Canopies · High-humidity ceilings · Spa & wellness areas · Entrances · Pathways

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 320 - 890 lm

Power 3 - 6W

Efficacy 107 - 163 lm/W

CRI 80-90

CCT 2700K-5000K

IP Rating IP67

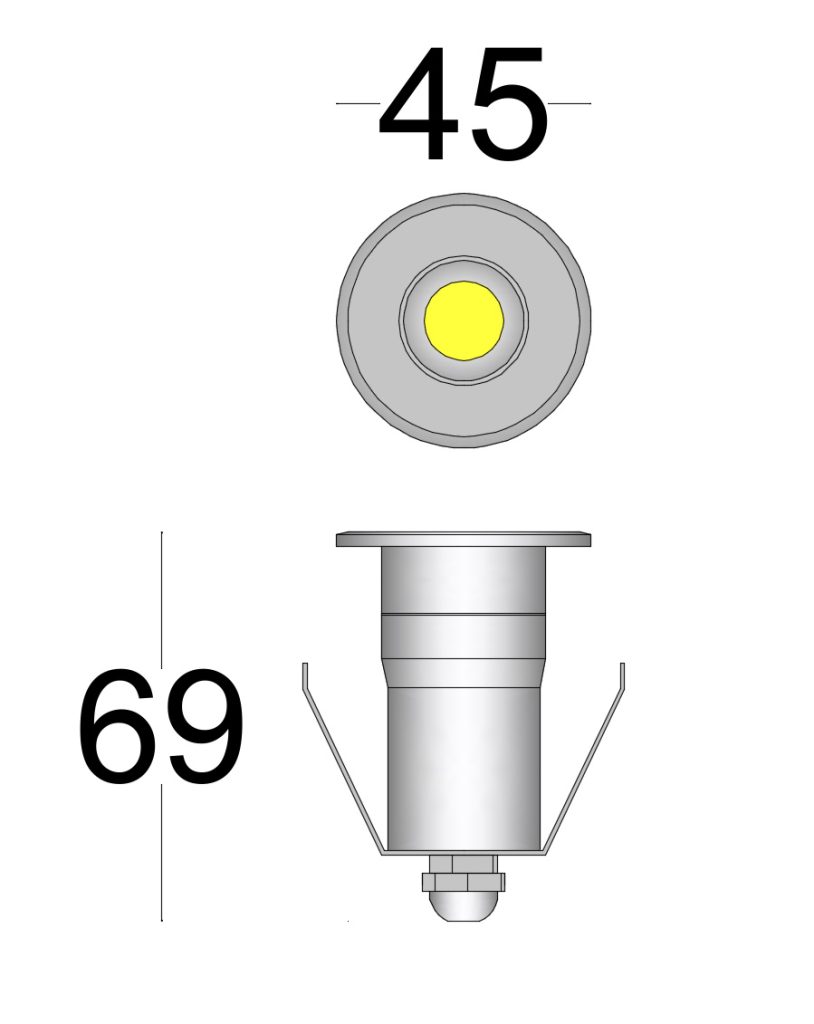

Dimensions Φ45mm x 69mm

Weight 0.4 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2021+A11:2022 ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3W	IG-L-45-827-3	2700K	80	455 lm	152 lm/W
3W	IG-L-45-830-3	3000K	80	465 lm	155 lm/W
3W	IG-L-45-835-3	3500K	80	470 lm	157 lm/W
3W	IG-L-45-840-3	4000K	80	475 lm	158 lm/W
3W	IG-L-45-850-3	5000K	80	460 lm	153 lm/W
3W	IG-L-45-927-3	2700K	90	320 lm	107 lm/W
3W	IG-L-45-930-3	3000K	90	335 lm	112 lm/W
3W	IG-L-45-935-3	3500K	90	350 lm	117 lm/W
3W	IG-L-45-940-3	4000K	90	360 lm	120 lm/W
3W	IG-L-45-950-3	5000K	90	375 lm	125 lm/W
6W	IG-L-45-827-6	2700K	80	951 lm	159 lm/W
6W	IG-L-45-830-6	3000K	80	970 lm	162 lm/W
6W	IG-L-45-835-6	3500K	80	975 lm	163 lm/W
6W	IG-L-45-840-6	4000K	80	980 lm	163 lm/W
6W	IG-L-45-850-6	5000K	80	960 lm	160 lm/W
6W	IG-L-45-927-6	2700K	90	860 lm	143 lm/W
6W	IG-L-45-930-6	3000K	90	875 lm	146 lm/W
6W	IG-L-45-935-6	3500K	90	880 lm	147 lm/W
6W	IG-L-45-940-6	4000K	90	890 lm	148 lm/W
6W	IG-L-45-950-6	5000K	90	870 lm	145 lm/W
