GEMMA-TR trimless LED spot

Efficacy

114-181 lm/W

CRI

80-90

IP33

Warranty

5 years

The GEMMA-TR trimless recessed LED luminaire series is available in a wide range of outputs, colour temperatures and beam angles.

It is adjustable and trimless, combining aesthetics and versatility. GEMMA-TR provides highly comfortable lighting with very low glare (UGR), ideal for refined architectural applications.

The models offer a colour temperature range from 2700K (warm) to 5000K (cool) and a colour rendering index option up to CRI 97.

Upon request, they are produced with DALI, 1-10V or PWM dimming, bluetooth control and emergency operation up to 3 hours.

All GEMMA-TR luminaires come with a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 951 - 4550 lm

Power 6 - 27W

Ambient Temperature -30°C to +40°C

Efficacy 114 - 181 lm/W

Power Factor 0.95

CRI 80-90

CCT 2700K-5000K

IP Rating IP33

Body Aluminium

Finishing white / black

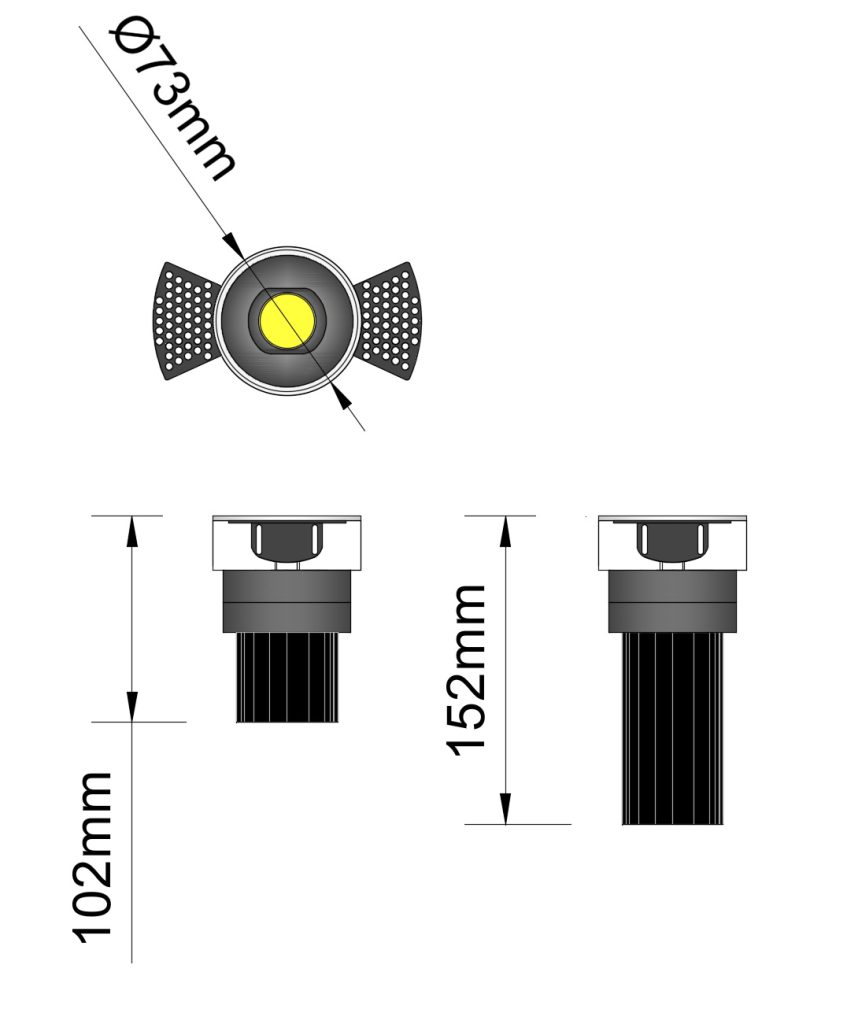

Dimensions Φ73mm

Weight 0.6 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	GEMMA-TR-827-6	2700K	80	951 lm	159 lm/W
6W	GEMMA-TR-830-6	3000K	80	970 lm	162 lm/W
6W	GEMMA-TR-835-6	3500K	80	975 lm	163 lm/W
6W	GEMMA-TR-840-6	4000K	80	980 lm	163 lm/W
6W	GEMMA-TR-850-6	5000K	80	960 lm	160 lm/W
6W	GEMMA-TR-927-6	2700K	90	860 lm	143 lm/W
6W	GEMMA-TR-930-6	3000K	90	875 lm	146 lm/W
6W	GEMMA-TR-935-6	3500K	90	880 lm	147 lm/W
6W	GEMMA-TR-940-6	4000K	90	890 lm	148 lm/W
6W	GEMMA-TR-950-6	5000K	90	870 lm	145 lm/W
9W	GEMMA-TR-827-9	2700K	80	1,560 lm	173 lm/W
9W	GEMMA-TR-830-9	3000K	80	1,590 lm	177 lm/W
9W	GEMMA-TR-835-9	3500K	80	1,600 lm	178 lm/W
9W	GEMMA-TR-840-9	4000K	80	1,610 lm	179 lm/W
9W	GEMMA-TR-850-9	5000K	80	1,580 lm	176 lm/W
9W	GEMMA-TR-927-9	2700K	90	1,440 lm	160 lm/W
9W	GEMMA-TR-930-9	3000K	90	1,470 lm	163 lm/W
9W	GEMMA-TR-935-9	3500K	90	1,490 lm	166 lm/W
9W	GEMMA-TR-940-9	4000K	90	1,510 lm	168 lm/W
9W	GEMMA-TR-950-9	5000K	90	1,460 lm	162 lm/W
13W	GEMMA-TR-827-13	2700K	80	2,145 lm	165 lm/W
13W	GEMMA-TR-830-13	3000K	80	2,190 lm	168 lm/W
13W	GEMMA-TR-835-13	3500K	80	2,200 lm	169 lm/W
13W	GEMMA-TR-840-13	4000K	80	2,210 lm	170 lm/W
13W	GEMMA-TR-850-13	5000K	80	2,170 lm	167 lm/W
13W	GEMMA-TR-927-13	2700K	90	1,960 lm	151 lm/W
13W	GEMMA-TR-930-13	3000K	90	2,000 lm	154 lm/W
13W	GEMMA-TR-935-13	3500K	90	2,020 lm	155 lm/W
13W	GEMMA-TR-940-13	4000K	90	2,040 lm	157 lm/W
13W	GEMMA-TR-950-13	5000K	90	1,980 lm	152 lm/W
18W	GEMMA-TR-827-18	2700K	80	3,150 lm	175 lm/W
18W	GEMMA-TR-830-18	3000K	80	3,220 lm	179 lm/W
18W	GEMMA-TR-835-18	3500K	80	3,230 lm	179 lm/W
18W	GEMMA-TR-840-18	4000K	80	3,250 lm	181 lm/W
18W	GEMMA-TR-850-18	5000K	80	3,190 lm	177 lm/W
18W	GEMMA-TR-927-18	2700K	90	2,950 lm	164 lm/W
18W	GEMMA-TR-930-18	3000K	90	3,000 lm	167 lm/W
18W	GEMMA-TR-935-18	3500K	90	3,030 lm	168 lm/W
18W	GEMMA-TR-940-18	4000K	90	3,060 lm	170 lm/W
18W	GEMMA-TR-950-18	5000K	90	2,980 lm	166 lm/W
27W	GEMMA-TR-827-27	2700K	80	4,410 lm	163 lm/W
27W	GEMMA-TR-830-27	3000K	80	4,510 lm	167 lm/W
27W	GEMMA-TR-835-27	3500K	80	4,520 lm	167 lm/W
27W	GEMMA-TR-840-27	4000K	80	4,550 lm	169 lm/W
27W	GEMMA-TR-850-27	5000K	80	4,465 lm	165 lm/W
27W	GEMMA-TR-927-27	2700K	90	3,990 lm	148 lm/W
27W	GEMMA-TR-930-27	3000K	90	4,070 lm	151 lm/W
27W	GEMMA-TR-935-27	3500K	90	4,110 lm	152 lm/W
27W	GEMMA-TR-940-27	4000K	90	4,150 lm	154 lm/W
27W	GEMMA-TR-950-27	5000K	90	4,030 lm	149 lm/W
9W	GEMMA-TR-e-927-9	2700K	90	1,060 lm	117 lm/W
9W	GEMMA-TR-e-930-9	3000K	90	1,100 lm	122 lm/W
9W	GEMMA-TR-e-940-9	4000K	90	1,130 lm	125 lm/W
12W	GEMMA-TR-e-927-12	2700K	90	1,370 lm	114 lm/W
12W	GEMMA-TR-e-930-12	3000K	90	1,535 lm	128 lm/W
12W	GEMMA-TR-e-940-12	4000K	90	1,535 lm	128 lm/W
