FOLIO – wall light

Efficacy

141-189 lm/W

CRI

80-90

IP20

Warranty

5 years

FOLIO LED luminaires feature an elegant and contemporary design.

FOLIO is an architectural wall and ceiling LED fixture that offers a strikingly thin, almost two-dimensional profile, ideal for modern minimalist interiors.

It is made of aluminium and finished with high-quality powder coating, available in a wide range of colours.

Backed by a 5-year warranty, FOLIO combines style, efficiency, and long-term reliability.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 425 - 1040 lm

Power 3 - 6W

Ambient Temperature -30°C to +40°C

Efficacy 141 - 189 lm/W

Power Factor 0.95

CRI 80-90

CCT 2700K-4000K

IP Rating IP20

IK Rating IK06

Body Aluminium

Finishing Powder coating - RAL color selection

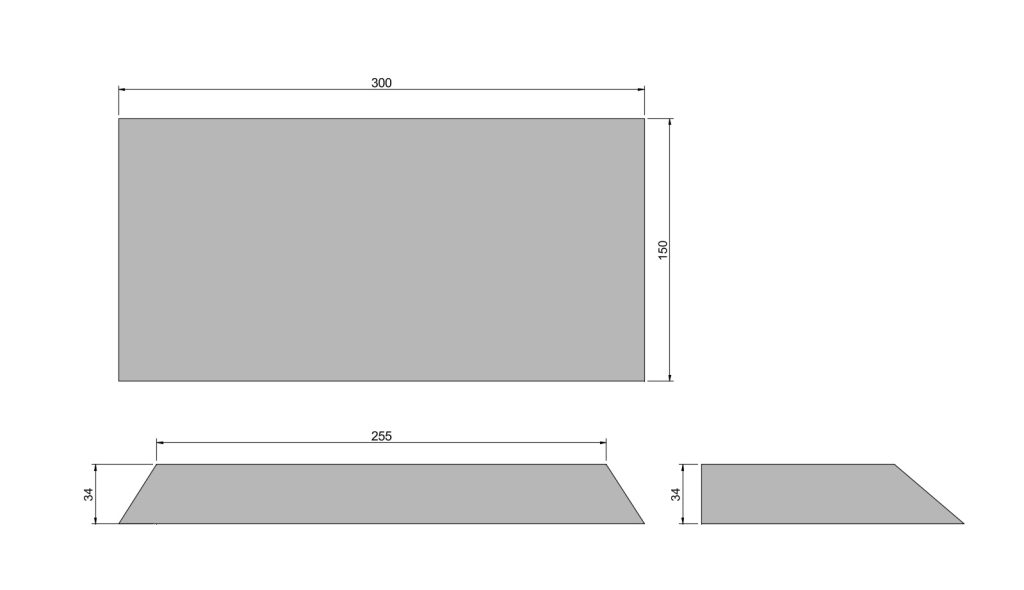

Dimensions 300 x 150 x 34mm

Weight 0.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3W	FOLIO-827-3	2700K	80	485 lm	176 lm/W
3W	FOLIO-830-3	3000K	80	500 lm	182 lm/W
3W	FOLIO-840-3	4000K	80	520 lm	189 lm/W
3W	FOLIO-927-3	2700K	90	425 lm	141 lm/W
3W	FOLIO-930-3	3000K	90	440 lm	146 lm/W
3W	FOLIO-940-3	4000K	90	455 lm	151 lm/W
6W	FOLIO-827-6	2700K	80	970 lm	176 lm/W
6W	FOLIO-830-6	3000K	80	1,000 lm	182 lm/W
6W	FOLIO-840-6	4000K	80	1,040 lm	189 lm/W
6W	FOLIO-927-6	2700K	90	850 lm	141 lm/W
6W	FOLIO-930-6	3000K	90	880 lm	146 lm/W
6W	FOLIO-940-6	4000K	90	910 lm	151 lm/W
