ECLIPSE-B low UGR linear LED

Efficacy
131-164 lm/W
CRI
80-90
IP
IP20
Warranty
5 years

ECLIPSE-B linear LED luminaires provide highly comfortable illumination with UGR<19, distributing light evenly with no visible source at most viewing angles.

Ideal for offices, meeting rooms and workspaces where visual comfort is critical. Mounting options: recessed, surface-mounted or suspended.

Optional features include dimming (wired/wireless or on-body pushbutton) and emergency lighting up to 3 hours. Lifetime: L80B10 > 80,000 h. Warranty: 5 years.

Applications:
Offices · Open-plan areas · Meeting rooms · Classrooms · Healthcare · Retail · Residential interiors
✉️ Request Quote Download PDF
📐
Calculate Required Luminaires
Via Techlumen Lux Calculator
 📄
Luminaire Brochure
Detailed specifications
 🔧
Installation Manual
Mounting and wiring instructions
 📊
Photometric Files
LDT / IES for lighting design

Technical Specifications

Luminous Flux 1437 - 26897 lm
Power 11 - 169W
Ambient Temperature -30°C to +50°C
Efficacy 131 - 164 lm/W
Power Factor 0.95
CRI 80-90
CCT 3000K-4000K
IP Rating IP20
IK Rating IK07
Body Aluminium
Finishing 45mm x 75mm x (290 - 3640)mm
Dimensions 0.9 - 6.3  Kg
Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 50581

Available Versions

Power Code CCT CRI Lumen Efficacy
11W ECLIPSE-B-29-830-11 3000K 80 1,656 lm 151 lm/W
11W ECLIPSE-B-29-840-11 4000K 80 1,733 lm 158 lm/W
14W ECLIPSE-B-29-830-14 3000K 80 1,977 lm 141 lm/W
14W ECLIPSE-B-29-840-14 4000K 80 2,069 lm 148 lm/W
11W ECLIPSE-B-29-930-11 3000K 90 1,437 lm 131 lm/W
11W ECLIPSE-B-29-940-11 4000K 90 1,500 lm 136 lm/W
14W ECLIPSE-B-29-930-14 3000K 90 1,715 lm 123 lm/W
14W ECLIPSE-B-29-940-14 4000K 90 1,791 lm 128 lm/W
21W ECLIPSE-B-56-830-21 3000K 80 3,312 lm 158 lm/W
21W ECLIPSE-B-56-840-21 4000K 80 3,466 lm 165 lm/W
26W ECLIPSE-B-56-830-26 3000K 80 3,954 lm 152 lm/W
26W ECLIPSE-B-56-840-26 4000K 80 4,138 lm 159 lm/W
21W ECLIPSE-B-56-930-21 3000K 80 2,874 lm 137 lm/W
21W ECLIPSE-B-56-940-21 4000K 80 3,000 lm 143 lm/W
26W ECLIPSE-B-56-930-26 3000K 80 3,430 lm 132 lm/W
26W ECLIPSE-B-56-940-26 4000K 80 3,582 lm 138 lm/W
32W ECLIPSE-B-85-830-32 3000K 80 4,968 lm 155 lm/W
32W ECLIPSE-B-85-840-32 4000K 80 5,199 lm 162 lm/W
39W ECLIPSE-B-85-830-39 3000K 80 5,931 lm 152 lm/W
39W ECLIPSE-B-85-840-39 4000K 80 6,207 lm 159 lm/W
32W ECLIPSE-B-85-930-32 3000K 80 4,311 lm 135 lm/W
32W ECLIPSE-B-85-940-32 4000K 80 4,500 lm 141 lm/W
39W ECLIPSE-B-85-930-39 3000K 80 5,145 lm 132 lm/W
39W ECLIPSE-B-85-940-39 4000K 80 5,373 lm 138 lm/W
43W ECLIPSE-B-112-830-43 3000K 80 6,624 lm 154 lm/W
43W ECLIPSE-B-112-840-43 4000K 80 6,932 lm 161 lm/W
52W ECLIPSE-B-112-830-52 3000K 80 7,908 lm 152 lm/W
52W ECLIPSE-B-112-840-52 4000K 80 8,276 lm 159 lm/W
43W ECLIPSE-B-112-930-43 3000K 80 5,748 lm 134 lm/W
43W ECLIPSE-B-112-940-43 4000K 80 6,000 lm 140 lm/W
52W ECLIPSE-B-112-930-52 3000K 80 6,860 lm 132 lm/W
52W ECLIPSE-B-112-940-52 4000K 80 7,164 lm 138 lm/W
54W ECLIPSE-B-140-830-54 3000K 80 8,280 lm 153 lm/W
54W ECLIPSE-B-140-840-54 4000K 80 8,665 lm 160 lm/W
65W ECLIPSE-B-140-830-65 3000K 80 9,885 lm 152 lm/W
65W ECLIPSE-B-140-840-65 4000K 80 10,345 lm 159 lm/W
54W ECLIPSE-B-140-930-54 3000K 80 7,185 lm 133 lm/W
54W ECLIPSE-B-140-940-54 4000K 80 7,500 lm 139 lm/W
65W ECLIPSE-B-140-930-65 3000K 80 8,575 lm 132 lm/W
65W ECLIPSE-B-140-940-65 4000K 80 8,955 lm 138 lm/W
65W ECLIPSE-B-168-830-65 3000K 80 9,936 lm 153 lm/W
65W ECLIPSE-B-168-840-65 4000K 80 10,398 lm 160 lm/W
79W ECLIPSE-B-168-830-79 3000K 80 11,862 lm 150 lm/W
79W ECLIPSE-B-168-840-79 4000K 80 12,414 lm 157 lm/W
65W ECLIPSE-B-168-930-65 3000K 80 8,622 lm 133 lm/W
65W ECLIPSE-B-168-940-65 4000K 80 9,000 lm 138 lm/W
79W ECLIPSE-B-168-930-79 3000K 80 10,290 lm 130 lm/W
79W ECLIPSE-B-168-940-79 4000K 80 10,746 lm 136 lm/W
75W ECLIPSE-B-196-830-75 3000K 80 11,592 lm 155 lm/W
75W ECLIPSE-B-196-840-75 4000K 80 12,131 lm 162 lm/W
92W ECLIPSE-B-196-830-92 3000K 80 13,839 lm 150 lm/W
92W ECLIPSE-B-196-840-92 4000K 80 14,483 lm 157 lm/W
75W ECLIPSE-B-196-930-75 3000K 80 10,059 lm 134 lm/W
75W ECLIPSE-B-196-940-75 4000K 80 10,500 lm 140 lm/W
92W ECLIPSE-B-196-930-92 3000K 80 12,005 lm 130 lm/W
92W ECLIPSE-B-196-940-92 4000K 80 12,537 lm 136 lm/W
86W ECLIPSE-B-230-830-86 3000K 80 13,248 lm 154 lm/W
86W ECLIPSE-B-230-840-86 4000K 80 13,864 lm 161 lm/W
105W ECLIPSE-B-230-830-105 3000K 80 15,816 lm 151 lm/W
105W ECLIPSE-B-230-840-105 4000K 80 16,552 lm 158 lm/W
86W ECLIPSE-B-230-930-86 3000K 80 11,496 lm 134 lm/W
86W ECLIPSE-B-230-940-86 4000K 80 12,000 lm 140 lm/W
105W ECLIPSE-B-230-930-105 3000K 80 13,720 lm 131 lm/W
105W ECLIPSE-B-230-940-105 4000K 80 14,328 lm 136 lm/W
97W ECLIPSE-B-252-830-97 3000K 80 14,904 lm 154 lm/W
97W ECLIPSE-B-252-840-97 4000K 80 15,597 lm 161 lm/W
118W ECLIPSE-B-252-830-118 3000K 80 17,793 lm 151 lm/W
118W ECLIPSE-B-252-840-118 4000K 80 18,621 lm 158 lm/W
97W ECLIPSE-B-252-930-97 3000K 80 12,933 lm 133 lm/W
97W ECLIPSE-B-252-940-97 4000K 80 13,500 lm 139 lm/W
118W ECLIPSE-B-252-930-118 3000K 80 15,435 lm 131 lm/W
118W ECLIPSE-B-252-940-118 4000K 80 16,119 lm 137 lm/W
108W ECLIPSE-B-280-830-108 3000K 80 16,560 lm 153 lm/W
108W ECLIPSE-B-280-840-108 4000K 80 17,330 lm 160 lm/W
131W ECLIPSE-B-280-830-131 3000K 80 19,770 lm 151 lm/W
131W ECLIPSE-B-280-840-131 4000K 80 20,690 lm 158 lm/W
108W ECLIPSE-B-280-930-108 3000K 80 14,370 lm 133 lm/W
108W ECLIPSE-B-280-940-108 4000K 80 15,000 lm 139 lm/W
131W ECLIPSE-B-280-930-131 3000K 80 17,150 lm 131 lm/W
131W ECLIPSE-B-280-940-131 4000K 80 17,910 lm 137 lm/W
119W ECLIPSE-B-308-830-119 3000K 80 18,216 lm 153 lm/W
119W ECLIPSE-B-308-840-119 4000K 80 19,063 lm 160 lm/W
144W ECLIPSE-B-308-830-144 3000K 80 21,747 lm 151 lm/W
144W ECLIPSE-B-308-840-144 4000K 80 22,759 lm 158 lm/W
119W ECLIPSE-B-308-930-119 3000K 80 15,807 lm 133 lm/W
119W ECLIPSE-B-308-940-119 4000K 80 16,500 lm 139 lm/W
144W ECLIPSE-B-308-930-144 3000K 80 18,865 lm 131 lm/W
144W ECLIPSE-B-308-940-144 4000K 80 19,701 lm 137 lm/W
126W ECLIPSE-B-336-830-126 3000K 80 19,872 lm 158 lm/W
126W ECLIPSE-B-336-840-126 4000K 80 20,796 lm 165 lm/W
156W ECLIPSE-B-336-830-156 3000K 80 23,724 lm 152 lm/W
156W ECLIPSE-B-336-840-156 4000K 80 24,828 lm 159 lm/W
126W ECLIPSE-B-336-930-126 3000K 80 17,244 lm 137 lm/W
126W ECLIPSE-B-336-940-126 4000K 80 18,000 lm 143 lm/W
156W ECLIPSE-B-336-930-156 3000K 80 20,580 lm 132 lm/W
156W ECLIPSE-B-336-940-156 4000K 80 21,492 lm 138 lm/W
137W ECLIPSE-B-364-830-137 3000K 80 21,528 lm 157 lm/W
137W ECLIPSE-B-364-840-137 4000K 80 22,529 lm 164 lm/W
169W ECLIPSE-B-364-830-169 3000K 80 25,701 lm 152 lm/W
169W ECLIPSE-B-364-840-169 4000K 80 26,897 lm 159 lm/W
137W ECLIPSE-B-364-930-137 3000K 80 18,681 lm 136 lm/W
137W ECLIPSE-B-364-940-137 4000K 80 19,500 lm 142 lm/W
169W ECLIPSE-B-364-930-169 3000K 80 22,295 lm 132 lm/W
169W ECLIPSE-B-364-940-169 4000K 80 23,283 lm 138 lm/W

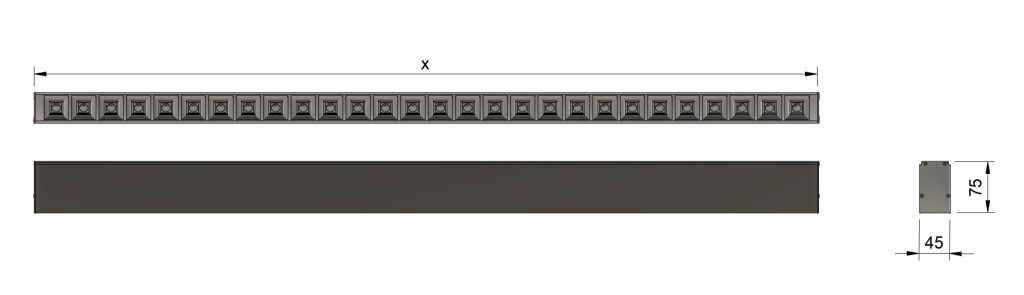

Technical Drawing

Technical Drawing
Download DWG / PDF

Polar Intensity Diagrams

Polar intensity diagram



20o

64o

77o

asymmetric

wallwashing

oval
