Clean-rooms
DLT-17-IP IP64 downlight
Efficacy
105-120 lm/W
CRI
80
IP
IP64
Warranty
5 years
The recessed DLT-17-IP luminaires offer a reliable and cost-efficient lighting solution.
They feature tunable white CCT with selectable colour temperatures of 3000K, 4000K and 5700K, and a colour rendering index of CRI 80.
DLT-17-IP luminaires are produced with a 5-year warranty and a lifetime rating of L70B50 > 50,000h.
Technical Specifications
Luminous Flux
2300 lm
Power
20W
Ambient Temperature
-30°C to +40°C
Efficacy
105 - 120 lm/W
Power Factor
0.95
CRI
80
CCT
3000K-5700K
IP Rating
IP64
IK Rating
IK07
Body
PC + Aluminium
Finishing
White

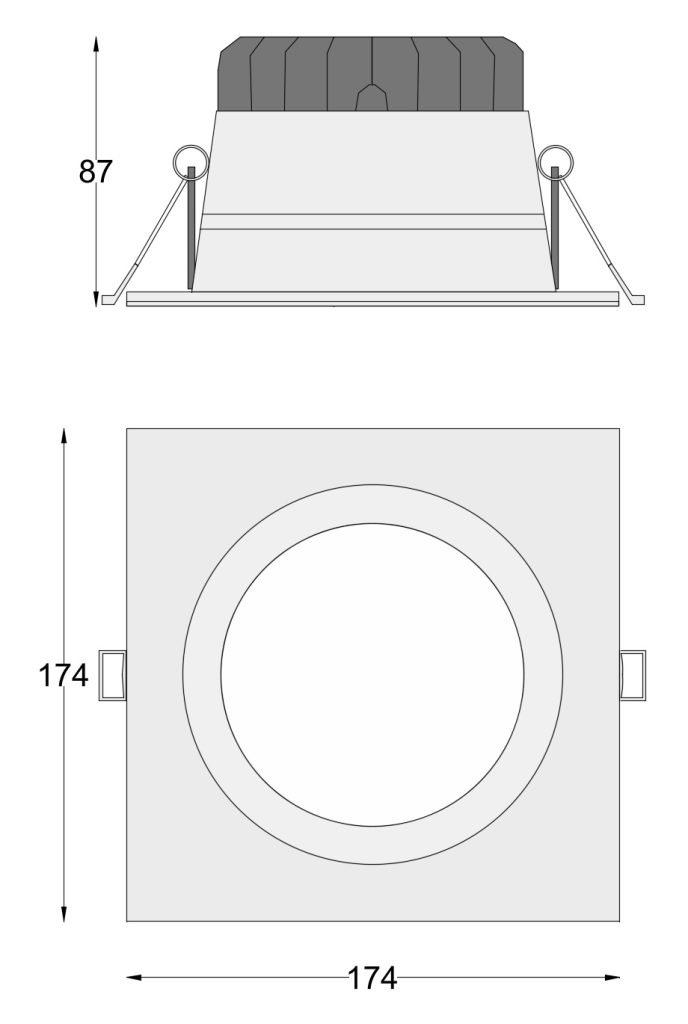

Dimensions
174mm x 174mm
Weight
0.25 kg
Warranty
5 years
Certifications & Compliance
EN 60598-1:2021+A11:2022
ROHS
EN 60598-1
EN 60598-2
EN 61000-3
EN 61547
EN 55015
EN 62471
EN 62493
EN 63000
Available Versions
| Power | Code | CCT | CRI | Lumen | Efficacy |
|---|---|---|---|---|---|
| 20W | DLT-17-IP | 3000 | 80 | 2,100 lm | 105 lm/W |
| 20W | DLT-17-IP | 4000 | 80 | 2,400 lm | 120 lm/W |
| 20W | DLT-17-IP | 5700 | 80 | 2,300 lm | 115 lm/W |
