Hotel lighting

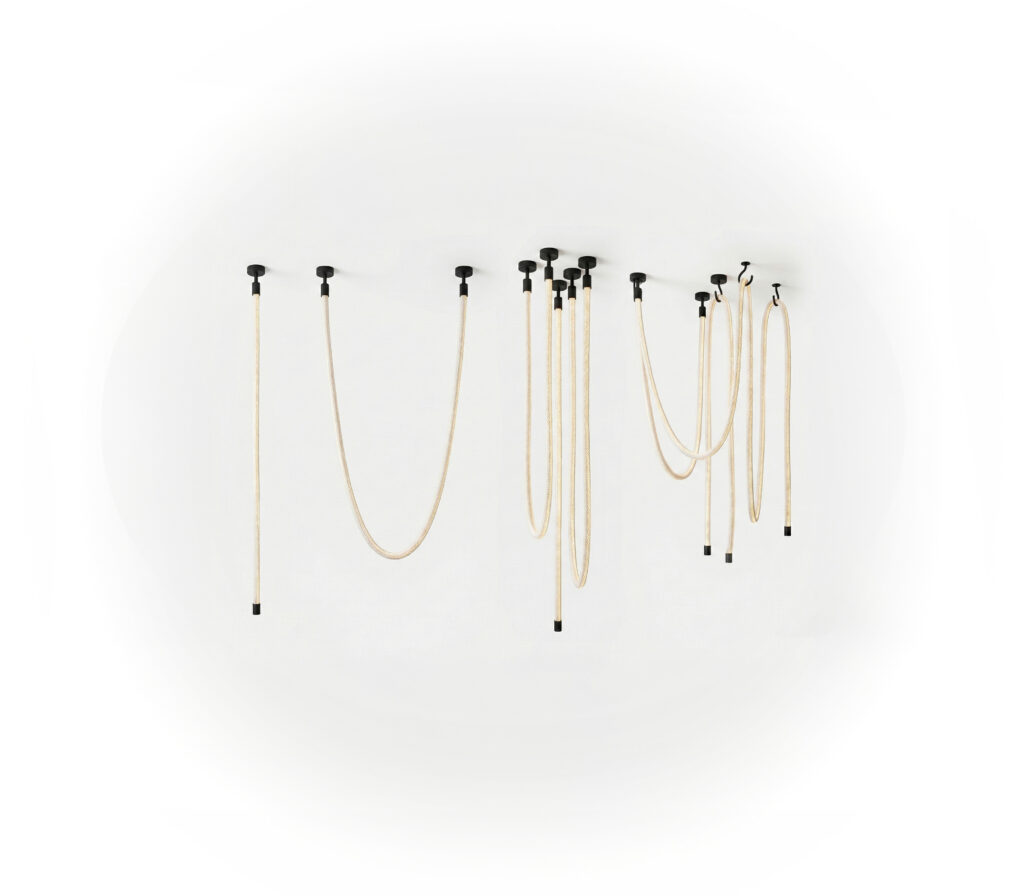

CORDA-P pendant system

CRI
80-90
IP
IP54
Warranty
5 years

CORDA-P is a flexible LED light rope that allows the creation of curves and free-form shapes on the ceiling. Its form gives designers the freedom to draw with light, rather than being restricted to rigid linear luminaires.

Its body consists of a flexible LED light core with an external braided sleeve, which diffuses the light evenly and creates a continuous luminous line without visible LED points. The result is a soft, homogeneous illumination that functions both as general lighting and as an architectural feature.

The length and configuration can be tailored to the needs of each project, enabling wave-like compositions, vertical lines, or free organic forms. The suspension points are discreet and integrate cleanly into the ceiling.

CORDA is available in different color temperatures, with high color rendering options and dimming capabilities, allowing seamless integration into modern lighting control systems.

It is an ideal solution for retail spaces, hotels, hospitality venues, corridors, and contemporary residences where lighting is not merely functional, but an integral part of the architectural design.

Woven Rope

Cozy feeling – Warmer glow

Converts the source CCT into warmer tones:

2700K —> 2000K
3000K —> 2200K
4000K —> 2700K
5000K —> 3500K

The light efficiency drops 25%

Silk rope

brighter – neutral tones

Technical Specifications

Luminous Flux 330 lm/m – 2750 lm/m
Power 6W/m – 44W/m
Ambient Temperature -20 oC – + 50oC
Power Factor 0.95
CRI 80-90
CCT 2700K – 4000K
IP Rating IP55
IK Rating IK10
Body Aluminium / Silicon / Cotton
Finishing Silk – Cotton – aluminium parts in any RAL
Dimensions Φ26 – Custom Length
Warranty 5 years
Compliances CE
EN 60598-1:2021+A11:2022
EN  60598-2-1:2022
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021
EN 61547:2020
EN 55015:2019+A11:2020
EN 62471:2008
IEC/TR 62778:2014
EN 62493:2015+A1:2022
EN 63000:2018
Directive (LVD)  2014/35/EU
Directive (EMC)  2014/30/EU
Directive (RoHS) 2011/65/EC
Directive (REACH)  2015/863/EU
Directive (GPS) 2015/863/EU
Directive (EuP) 2001/95/EC

Configuration Options

Surface
Silk / Cotton

No versions available for this product.

Technical Drawing

Polar Intensity Diagrams

Polar Diagram
Polar Diagram
