MG-RAY-50 Σποτ μαγνητικής ράγας

Efficacy

107-179 lm/W

CRI

80-90

IP20

Warranty

5 years

The MG-RAY-50 LED fixtures are engineered with precision and elegance, featuring a compact Ø50 mm × 95 mm body — ideal for discreet, small-form lighting. Compatible with the MG-20 48 V magnetic track.

They offer multiple optics with beam angles 12°–86°, 2700 K – 5000 K CCT options and CRI up to 97, delivering up to 2210 lm with excellent colour rendering.

Long-term consistency L80 > 70,000 h and a 5-year warranty ensure reliability. The sleek, minimalist design enhances any interior.

MG-20 48 V Magnetic Track System
Compatible low-voltage track system

Applications:
Retail · Exhibition spaces · Offices · Restaurants · Residences · Hotels

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 320 - 2210 lm

Power 3 - 13W

Ambient Temperature -30°C to +50°C

Efficacy 107 - 179 lm/W

CRI 80-90

CCT 2700K-5000K

IP Rating IP20

Body Aluminium

Finishing Black / White / Other RAL optional

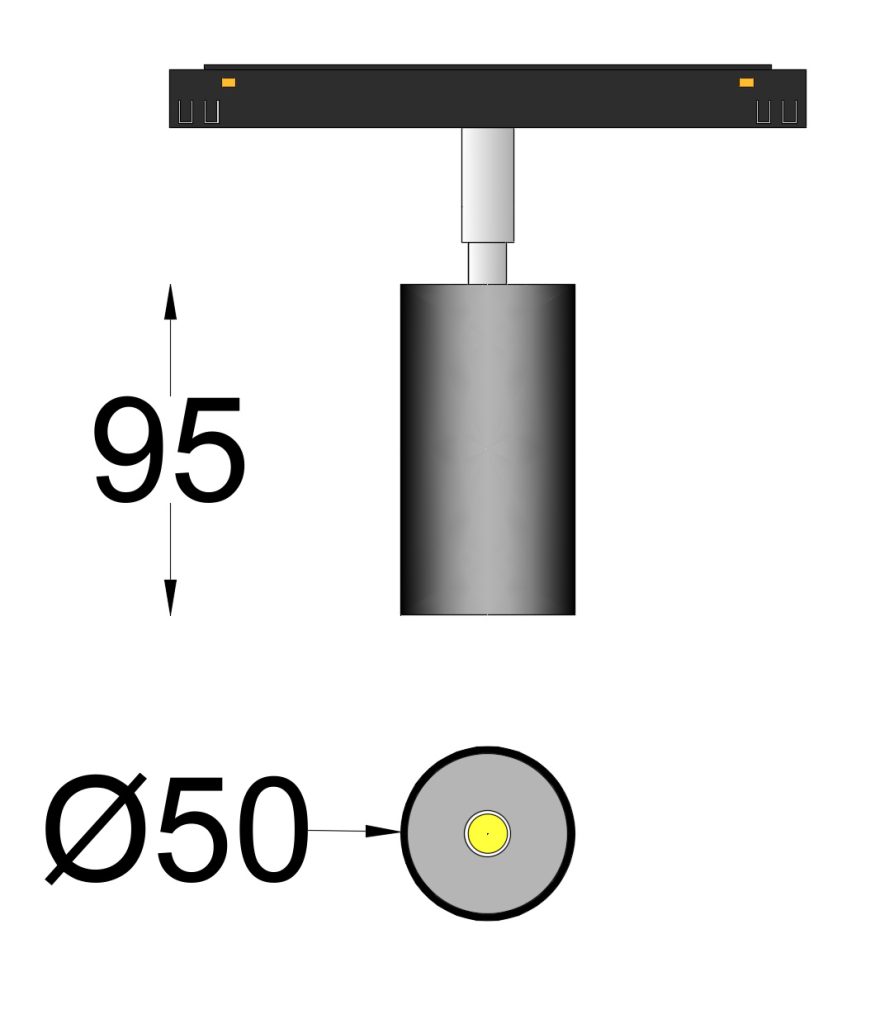

Dimensions Φ50 - H95

Weight 0.7 kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3W	MG-RAY-50-827-3	2700K	80	455 lm	152 lm/W
3W	MG-RAY-50-830-3	3000K	80	465 lm	155 lm/W
3W	MG-RAY-50-835-3	3500K	80	470 lm	157 lm/W
3W	MG-RAY-50-840-3	4000K	80	475 lm	158 lm/W
3W	MG-RAY-50-850-3	5000K	80	460 lm	153 lm/W
3W	MG-RAY-50-927-3	2700K	90	320 lm	107 lm/W
3W	MG-RAY-50-930-3	3000K	90	335 lm	112 lm/W
3W	MG-RAY-50-935-3	3500K	90	350 lm	117 lm/W
3W	MG-RAY-50-940-3	4000K	90	360 lm	120 lm/W
3W	MG-RAY-50-950-3	5000K	90	375 lm	125 lm/W
6W	MG-RAY-50-827-6	2700K	80	951 lm	159 lm/W
6W	MG-RAY-50-830-6	3000K	80	970 lm	162 lm/W
6W	MG-RAY-50-835-6	3500K	80	975 lm	163 lm/W
6W	MG-RAY-50-840-6	4000K	80	980 lm	163 lm/W
6W	MG-RAY-50-850-6	5000K	80	960 lm	160 lm/W
6W	MG-RAY-50-927-6	2700K	90	860 lm	143 lm/W
6W	MG-RAY-50-930-6	3000K	90	875 lm	146 lm/W
6W	MG-RAY-50-935-6	3500K	90	880 lm	147 lm/W
6W	MG-RAY-50-940-6	4000K	90	890 lm	148 lm/W
6W	MG-RAY-50-950-6	5000K	90	870 lm	145 lm/W
9W	MG-RAY-50-827-9	2700K	80	1,560 lm	173 lm/W
9W	MG-RAY-50-830-9	3000K	80	1,590 lm	177 lm/W
9W	MG-RAY-50-835-9	3500K	80	1,600 lm	178 lm/W
9W	MG-RAY-50-840-9	4000K	80	1,610 lm	179 lm/W
9W	MG-RAY-50-850-9	5000K	80	1,580 lm	176 lm/W
9W	MG-RAY-50-927-9	2700K	90	1,440 lm	160 lm/W
9W	MG-RAY-50-930-9	3000K	90	1,470 lm	163 lm/W
9W	MG-RAY-50-935-9	3500K	90	1,490 lm	166 lm/W
9W	MG-RAY-50-940-9	4000K	90	1,510 lm	168 lm/W
9W	MG-RAY-50-950-9	5000K	90	1,460 lm	162 lm/W
13W	MG-RAY-50-827-13	2700K	80	2,145 lm	165 lm/W
13W	MG-RAY-50-830-13	3000K	80	2,190 lm	168 lm/W
13W	MG-RAY-50-835-13	3500K	80	2,200 lm	169 lm/W
13W	MG-RAY-50-840-13	4000K	80	2,210 lm	170 lm/W
13W	MG-RAY-50-850-13	5000K	80	2,170 lm	167 lm/W
13W	MG-RAY-50-927-13	2700K	90	1,960 lm	151 lm/W
13W	MG-RAY-50-930-13	3000K	90	2,000 lm	154 lm/W
13W	MG-RAY-50-935-13	3500K	90	2,020 lm	155 lm/W
13W	MG-RAY-50-940-13	4000K	90	2,040 lm	157 lm/W
13W	MG-RAY-50-950-13	5000K	90	1,980 lm	152 lm/W
