MG-CELL low glare track light

Efficacy

106-160 lm/W

CRI

IP20

Warranty

5 years

The MG-CELL linear LED fixtures are designed specifically for MG-20 48 V magnetic track systems, providing a sleek, elegant lighting solution with UGR < 19.

With a high Color Rendering Index (CRI ≤ 90), MG-CELL ensures vivid, accurate colour reproduction that enhances visual appeal.

They deliver a powerful luminous flux of up to 2018 lm, feature L80 > 70 000 h lifetime, and include a 5-year warranty.

Applications:
Retail stores · Exhibition spaces · Offices · Residences · Hotels

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 775 - 2108 lm

Power 5 - 16W

Ambient Temperature -30°C to +50°C

Efficacy 106 - 160 lm/W

CRI 80

CCT 3000K-4000K

IP Rating IP20

IK Rating IK06

Body Aluminium

Finishing Black / White

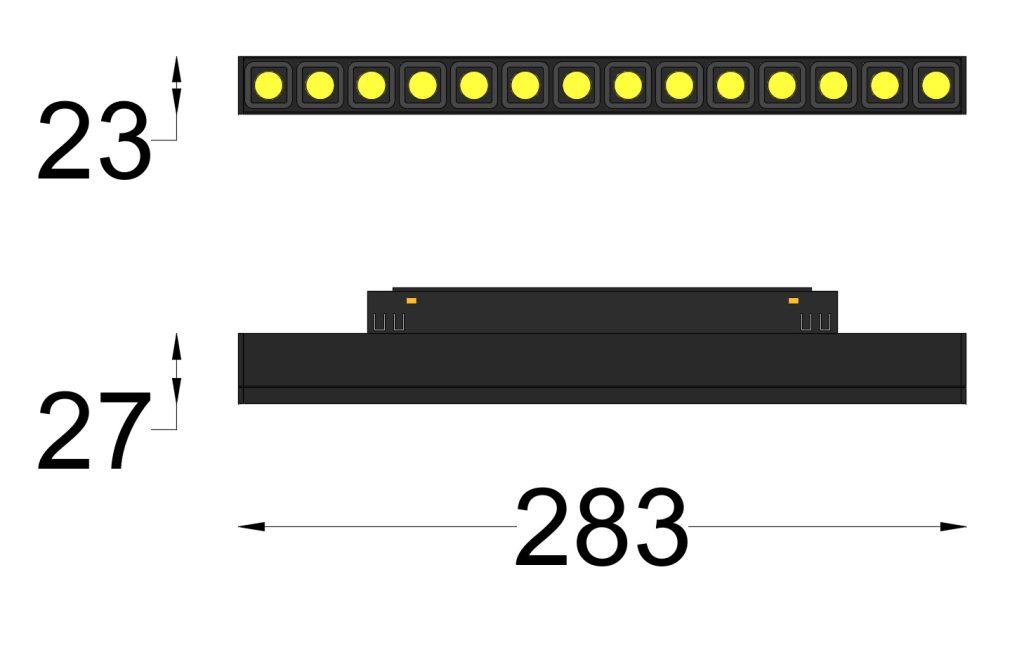

Dimensions 23 x 27 x 283mm

Weight 0.4 kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	MG-CELL-28-830-6	3000K	80	915 lm	152 lm/W
6W	MG-CELL-28-840-6	4000K	80	960 lm	160 lm/W
6W	MG-CELL-28-930-6	3000K	90	775 lm	129 lm/W
6W	MG-CELL-28-940-6	4000K	90	810 lm	135 lm/W
11W	MG-CELL-28-830-11	3000K	80	1,480 lm	134 lm/W
11W	MG-CELL-28-840-11	4000K	80	1,550 lm	141 lm/W
11W	MG-CELL-28-930-11	3000K	90	1,250 lm	114 lm/W
11W	MG-CELL-28-940-11	4000K	90	1,310 lm	119 lm/W
16W	MG-CELL-28-830-16	3000K	80	2,015 lm	126 lm/W
16W	MG-CELL-28-840-16	4000K	80	2,108 lm	132 lm/W
16W	MG-CELL-28-930-16	3000K	90	1,700 lm	106 lm/W
16W	MG-CELL-28-940-16	4000K	90	1,785 lm	111 lm/W
