OPUS-2 LED Bollard

Efficacy

130-175 lm/W

CRI

70-80

IP66

Warranty

5 years

Techlumen© OPUS-2 LED fixtures provide efficient and high-quality pathway and outdoor lighting.

They are produced in multiple power versions with luminous flux up to 2450 lm, and are available with a wide range of optics to suit different lighting scenarios.

Constructed from aluminium and finished in any RAL colour, they offer excellent durability and blend seamlessly with the architectural environment.

OPUS-2 combines elegance and reliability, making it an ideal choice for lighting pathways, parks and public areas.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 780 - 2450 lm

Power 6 - 14W

Ambient Temperature -30°C to +50°C

Efficacy 130 - 175 lm/W

Power Factor 0.95

CRI 70-80

CCT 2700K-5000K

IP Rating IP66

Body Aluminium

Finishing Powder Coating - RAL selection

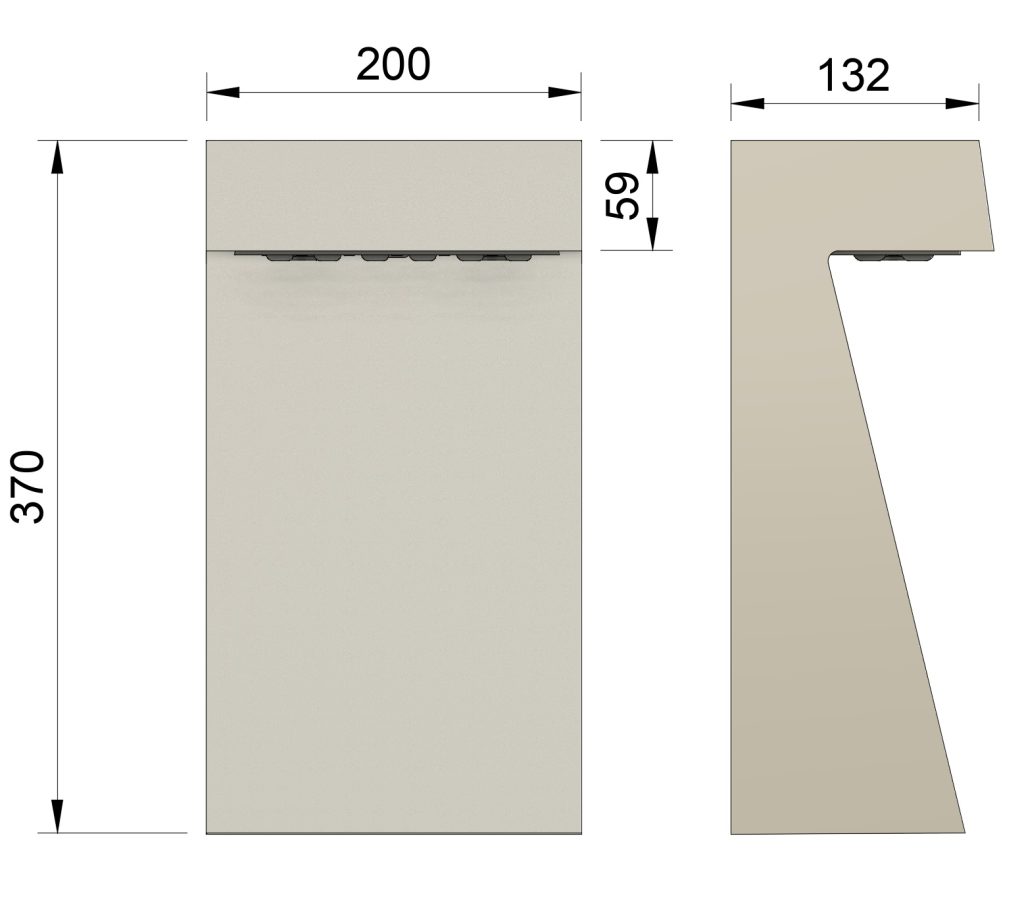

Dimensions 370 x 200 x 145 mm

Weight 2.4 kg

Warranty 5 years

Certifications & Compliance

CE EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	OPUS-2-827-6	2700K	80	780 lm	130 lm/W
6W	OPUS-2-730-6	3000K	70	900 lm	150 lm/W
6W	OPUS-2-830-6	3000K	80	800 lm	133 lm/W
6W	OPUS-2-740-6	4000K	70	950 lm	158 lm/W
6W	OPUS-2-840-6	4000K	80	850 lm	142 lm/W
6W	OPUS-2-750-6	5000K	70	950 lm	158 lm/W
9W	OPUS-2-827-9	2700K	80	1,200 lm	133 lm/W
9W	OPUS-2-730-9	3000K	70	1,370 lm	152 lm/W
9W	OPUS-2-830-9	3000K	80	1,250 lm	139 lm/W
9W	OPUS-2-740-9	4000K	70	1,450 lm	161 lm/W
9W	OPUS-2-840-9	4000K	80	1,310 lm	146 lm/W
9W	OPUS-2-750-9	5000K	70	1,450 lm	161 lm/W
14W	OPUS-2-827-14	2700K	80	2,020 lm	144 lm/W
14W	OPUS-2-730-14	3000K	70	2,330 lm	166 lm/W
14W	OPUS-2-830-14	3000K	80	2,100 lm	150 lm/W
14W	OPUS-2-740-14	4000K	70	2,450 lm	175 lm/W
14W	OPUS-2-840-14	4000K	80	2,200 lm	157 lm/W
14W	OPUS-2-750-14	5000K	70	2,450 lm	175 lm/W
